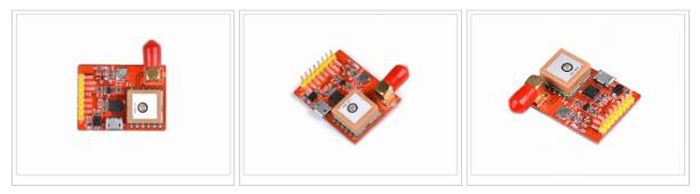

EZ-0048 USB Port GPS Module for Raspberry Pi 2/3 Model B/ Pi 2B /Pi B+ /Pi A+/Pi B/ Pi zero

11890
5 9
$32.65 $23.99
Time Remaining:
- OR - Add to Wish List

Description:

1.This GPS module supports Raspberry Pi model A,B,A+,B+,Zero,2,3 with its’ L80-39 GPS chip inside.

2.This GPS module can communicates satellite with UART or USB.

3.This GPS module uses CP2102 as USB to UART Bridge chip,it’s stable and faster.

4.The L80-39 with 66 search channels and 22 simultaneous tracking channels,it acquires and tracks satellites in the shortest time even at indoor signal level.

Features:

1.-165 dBm sensitivity,1Hz (default),up to 5Hz,66 channels

2.At least 100mA current draw to start up

3.PPS output can be used to coordinate time with satellite

4.Internal patch antenna which works quite well when used outdoors SMA connector for external active antenna for when used indoors

5.Fix status LED blinks to let you know when the GPS has determined the current coordinates

6.EASY,advanced AGPS technology without external memory

7.Support time service application which can be achieved by PPS sync NMEA feature

8.Built-in LNA for better sensitivity

9.RTC battery-compatible

10.1x8 male headers,USB micro interface

11.Includes CP2102 module serial converter USB 2.0 to TTL UART

Parameters:

1.Satellites:66 acquisition channels,22 tracking channels

2.Work Voltage:4.5-5.5V

3.Maximum Current:100mA (MAX)

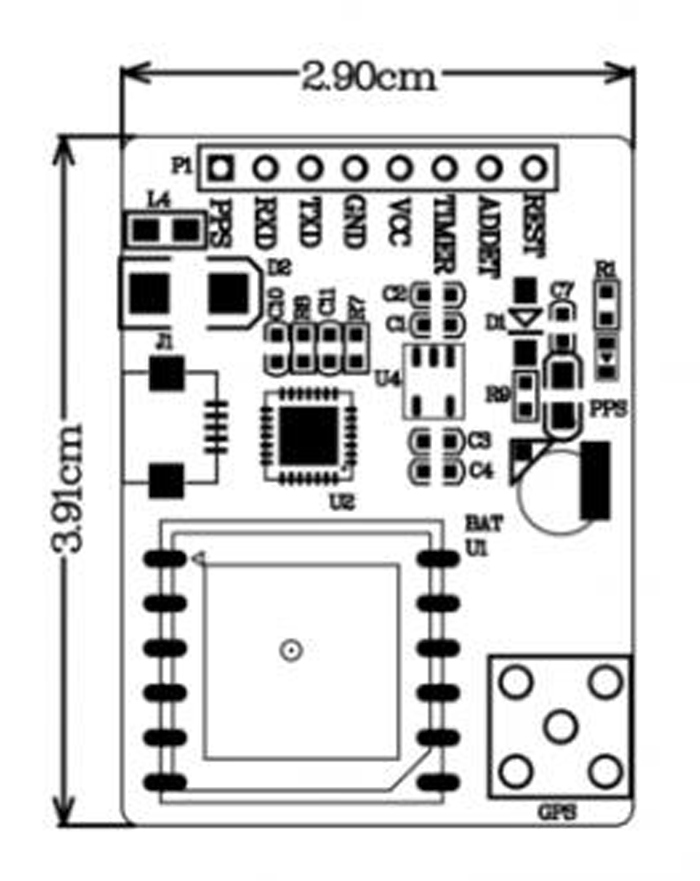

4.Scale:16.6*26*18.6mm

5.GPS:L80-M39

6.Patch Antenna Size:15.0*15.0*4.0mm

7.Position Accuracy:<2.5M CEP

8.Velocity Accuracy:<1.0m/s

9.Warm/Cold Start Without ESEY:<35s

10. Warm/Cold Start With ESEY:<15s

11.Acquisition Sensitivity:-148dBm

12.Tracking Sensitivity:-165dBm

13.Update Rate:1Hz (default);up to 5Hz

14.Baud Rate:4800-115200bps;9600bps default

15.Protocols:NEMA 0183

16.Mount Cable:1*8 stacking header;USB micro data cable

Presentation:

Package Includes:

1.1x USB-Port-GPS (L80-39) module

2.PS:we do not offer micro USB-cable and GPS antenna,you can purchase it if you need
