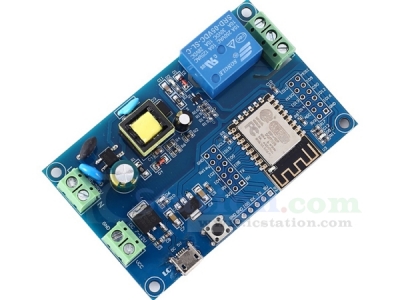

AC 220V DC 12V WIFI Relay Switch ESP-12F Remote Control Smart Home ESP8266 Relay Module

GY16060
5 9
$7.99 $5.99
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Description:

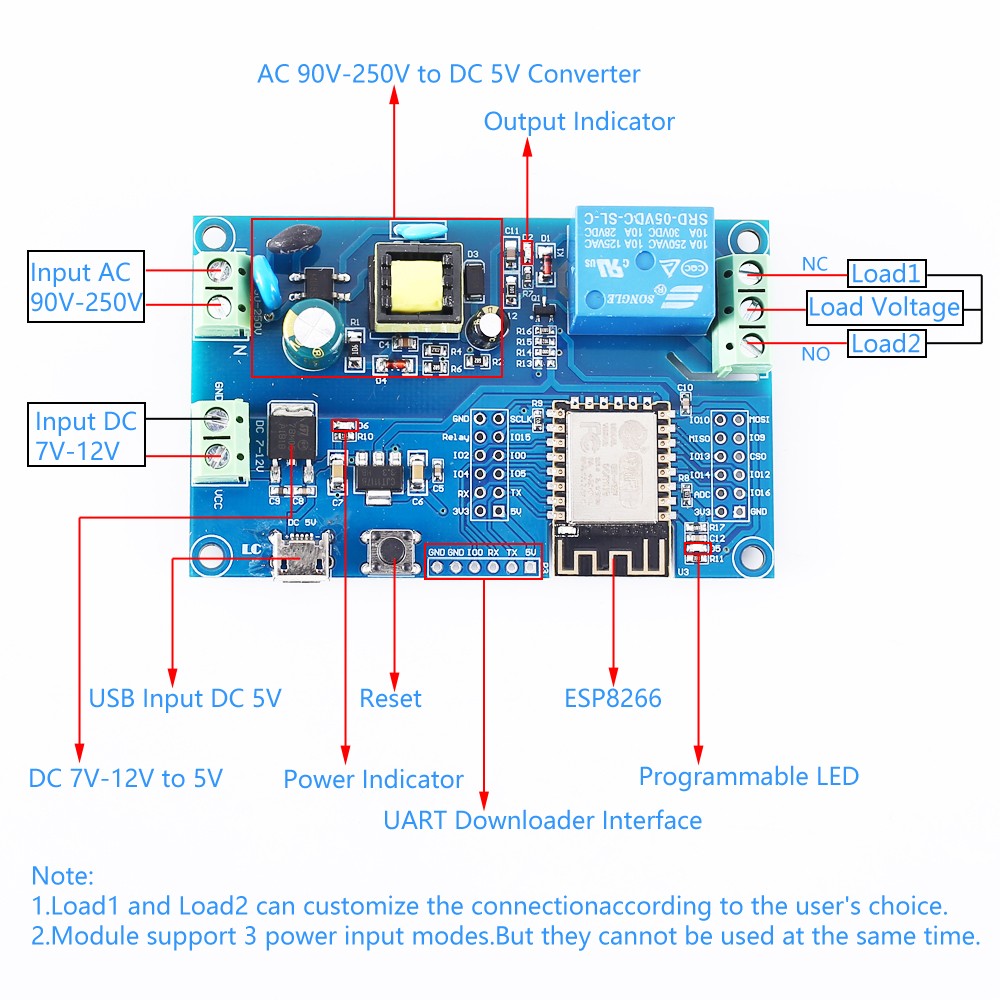

  LC-Relay-ESP12-1R-MV single relay development board onboard ESP-12F WiFi module, I/O orifice full lead ,support AC90-250V/DC7-12V/USB 5V etc.many supply power way. Provide Arduino develop environment reference code,suit for ESP8266 secondary development study, smart home wireless control.

2.Feature:
  1>.Support both AC and DC Input
  2>.Built-in 4M Byte Flash
  3>.UART Communication Protocol

3.Parameter:
  1>.Model: LC-Relay-ESP12-1R-MV
  2>.Work Voltage:AC90-250V/DC7-12V/USB5V
  3>.WIFI IC: ESP8266
  4>.Communication Protocol:UART
  5>.Load voltatge:AC 250V or DC 30V(Max)
  6>.Load current:10A(Max)
  7>.Work Temperature:-25℃~85℃
  8>.Work Humidity:5%~95%RH
  9>.Size:80*50*19mm

4.Package:
  1>.1pcs AC 220V DC 12V WIFI Relay Switch Module
  2>.1pcs Jumper Cap
  3>.1pcs 1*6P 2.54mm Male Pin
  4>.2pcs 2*6P 2.54mm Male Pin
