2.4GHz RTL8189ES Wifi Wireless Controller Module SDIO Interface 3.3V for Robots Smart Home

12306
5 9
$2.99 $2.24
Time Remaining:
- OR - Add to Wish List

Product Introduction:
1.Chip: REALTEK RTL8189ES

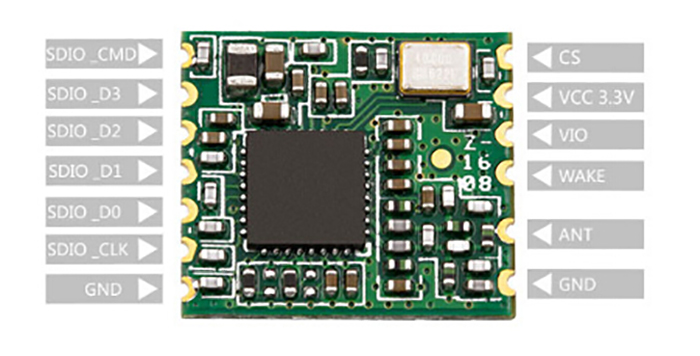

2.Interface Type: SDIO (1.1/2.0/3.0)/SPI
3.Antenna Type: external antenna

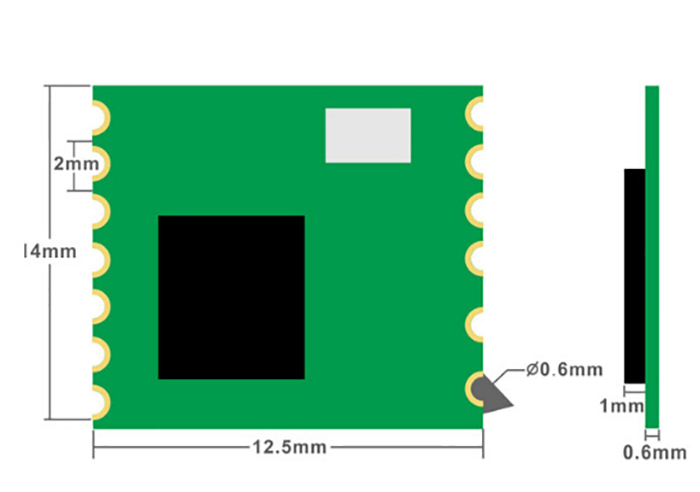

4.Size: 12.5*14*1.6mm
5.Transmission Distance: 100m
6.Voltage: 3.3V (+/-5%V)
7.Protocol Standard: IEEE 802.11b, IEEE 802.11g, IEEE 802.n (1T1R)
8.Frequency Range: 2.400-2.4835GHz
9.Channel: 1-11 (America, Canada), 1-13 (Europe), 1-14 (Japan)
10.Modulation Mode: 802.11b: DSSS (CCK,DQPSK,DBPSK); 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM)
11.Wireless Speed Rate: 802.11 (1, 2Mbps); 802.11b (11, 5.5Mbps); 802.11g (54, 48, 36, 24, 18, 12, 9, 6Mbps); 802.11n (150Mbps max)
12.Transmit Power: 802.11b/g; 13+/-1.5dBm
13.Receive Sensitivity: 802.11b/g; -74+/-1.0dBm
14.Frequency Offset: 802.11b/g; +/-15PPM
15.Operating Mode: Ad-Hoc and Infrastructure
16.Wireless Safety: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TK1P/AES)
17.Power Consumption: 190mW (standby); 650mW (max operating state)
18.System Support: Linux/Android/WIN2000/XP/VISTA/WIN7
19.Operating Temperature: -20~70 Celsius
20.Operating Humidity: 10%-90%
21.Applications: for robots, network set-top box, intelligent household appliances, network camera, intelligent TV,
   unmanned aerial vehicle image transmission, vehicle device.
