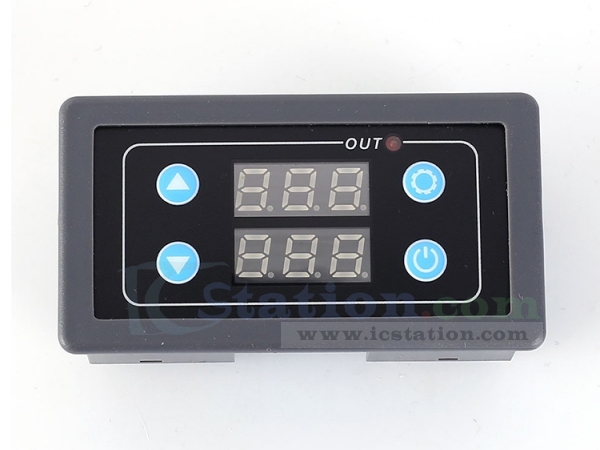

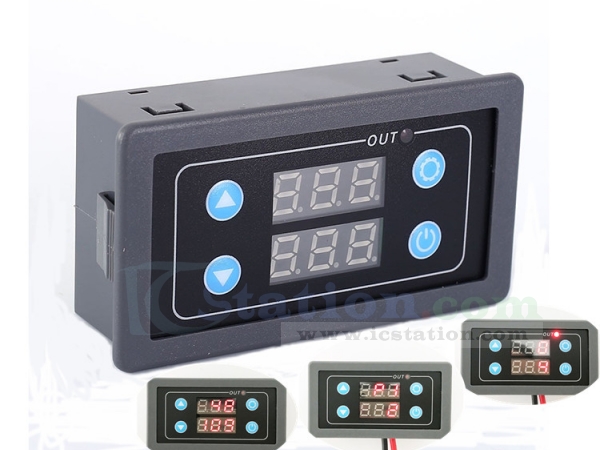

AC 85V-265V Cycle Timer Delay Module Dual Display 110V 220V 10A 2000W 999ms 999h Power-on Delay Timer

14284
5 9
$6.85
Contact us for wholesale price
- OR - Add to Wish List
1.Description:
    It is a multifunction delay relay module.Screen display, very clear, easy to use, powerful.It can be widely used at Smart home,Industrial control,Automatic irrigation,Indoor ventilation.Protection equipment.

2.Features:
    1>.Power-on delay
    2>.Four delay time modes
    3>.Six working modes
    4>.AC85-265V is used worldwide
    5>.High precision delay setting
    6>.Beautiful appearance
    7>.It has double LED displays, so user can set two timing time T1 and T2.It will very convenient to customers.
    8>.There are four timing time for choice: 0-999ms,0-999s,0-999min and 0-999h. user could set the timing mode as user requirement.
    9>.There are six operating modes for user choice.

3.Parameters:
    1>.Product Name:AC 85V-265V Cycle Timer Delay Module
    2>.Work Voltage:AC 85V-265V
    3>.Timing Range:0-999ms,0-999s,0-999m,0-999h
    4>.Power dissipation:<0.6W
    5>.Maximum Power:<2000W
    6>.Maximum Current:10A
    7>.Working Temperature range:-20℃~85℃
    8>.Working Humidity Range:5%-100%RH
    9>.Size:79*43*32mm

4.Function:
    1>.Timer
    2>.Delay
    3>.Cycle

5.Instructions:
    1>.Please pay attention for your first use. You need wait 6s after your setting data, the module will save the date you have set after 6s.
    2>.Short press button ‘SET’: Start the Time Setting Mode and screen will blinking.Please set time T1 during blinking.Press button ‘SET’ and screen will blinking again.Set time T2 during blinking.Then save set in two method: 1>. Waiting for 6S and the screen stop blinking.The system automatically saves the setting time; 2>. Press button ‘SET’.
    3>.Long press button ‘SET’: Start the Parameter Setting Mode. There are there parameter for your choice : P0,P1 and P2. You can select P0,P1 or P2 by short press ‘SET’. Under the parameter P0,P1,P2,you can set the parameter by the button+ and button-.
    4>.P0 : Set the time range
        4.1>.P0--0: Timing time mode : 0---999ms.Accuracy 0.1s.
        4.2>.P0--1: Timing time mode : 0---999s.Accuracy 1s.
        4.3>.P0--2: Timing time mode : 0---999min.Accuracy 1min.
    4.4>.P0--3: Timing time mode : 0---999h.Accuracy 1h.
    5>.P1 : Work mode
        5.1>.P1--0: Relay will ON after delay T1
        5.2>.P1--1: Relay will OFF after delay T1
        5.3>.P1--2: Relay will ON after delay T1.Then Relay will OFF after delay  T2.Then Stop.
        5.4>.P1--3: Relay will OFF after delay T1.Then Relay will ON after delay T2.Then Stop.
        5.5>.P1--4: Relay will ON after delay T1.Then Relay will OFF after delay  T2.Then cycle.
        5.6>.P1--5: Relay will OFF after delay T1.Then Relay will ON after delay T2.Then cycle.
    6>.P2 : Display screen brightness adjustment
        6.1>.P2--0 to P2--5 are used to adjust brightness of screen.
        6.2>.P2--OFF: Low-power mode. User can set P2--OFF mode, the system will automatically turn off the display after 10s, enter the low-power mode, press any button to wake up.
    7>.Confirm key:
        7.1>.Function 1: Press 'Confirm key' to save parameter which have set before.If press 'Confirm key' during working,Module will stop function,relay OFF.Press again to restore the timing function.
        7.2>.Function 2: Trigger the function again. After the timer finishes work normally. If needs to work again please short press the 'Confirm key' to restart the timer.

6.For example:
    For example, a customer needs to power on for 10 seconds, and power off for 20 seconds. Set as follows:
    T1 setting time 10, T2 setting time 20
    P0--1 (T1 timing accuracy is second)
    P1--5 (Timer operation mode is to ON-OFF-ON-OFF and cycle)

7.Using Steps:
    1>.Connect work power supply.
    2>.Set work parameters.
    3>.Remove power supply.
    4>.Connect to load at output terminal and load voltage.
    5>.Re-connect work power supply.

8.Note:
    1>.It is a relay output mode and cannot be used as a power module. It cannot output voltage. The load needs to be connected to a separate power supply.
    2>.Please read use manual and description before use.

9.Application:
    1>.It can be widely used in many regular occasions.
    2>.It can be widely used in industrial control.

10.Frequently asked questions:
    1>.Can you set timer 1 for seconds and timer 2 for hours?
        A : Sorry that it can not. the timing unit must be the same.
    2>.Can it start the timer automatically ?
        A : No,it can not. It need to push the button to start the timer.

11.Package:
    1>.1pcs AC 85V-265V Cycle Timer Delay Module
