DC 12V 4Bit WIFI Control Switch Smart Home Mobile APP Remote Control Intelligent Switch Module

13021
5 9
$18.75 $13.50
Time Remaining:
- OR - Add to Wish List

Description:
Its operating voltage is 12V. It is the remote wireless intelligent control of the mobile phone.
As long as the cell phone and reception can be controlled in any area of the available network area (the distance is infinitely far).
It can be configured through a mobile phone to a wireless router to achieve remote switching and timing control.
A number of switches can be controlled by a mobile phone. More one button sharing function, easy to share. To achieve multiple mobile phone remote control.
The module is simple and convenient to use, and it is safe and reliable.

Product features:
1>. Point motion / self lock / interlock, and you can switch yourself at will. After the mode setting is completed, the set mode will not change even if the module is restarted.
    Point motion: long press the button and open the relay. Automatically shut down after about 1 second
    Self lock: long press the button to open the relay. Press it again, the relay is closed.
    Interlock: the other 3 roads will be closed on any work.
2>. WIFI mobile APP remote intelligent control. After pairing the cell phone with the module, it can achieve infinite distance control
  (it is necessary to ensure that the module is connected to WIFI), and has the function of manual key switch.
3>. Wide operating voltage 7-24V power supply.

Parameters:
1>. Control mode: WiFi 4 way mobile phone APP remote control + button manual control
2>. Transmission mode: WIFI communication. When the control module is connected to WiFi, it can support 2G, 3G and 4G network signal control.
    It can control wireless remote control by learning 433M's remote controller.
3>. Controlled line: 7-24V power supply 4 passive output. The output is as a mechanical switch.
4>. Control distance: mobile phone control distance is infinitely far
5>. Working voltage: The DC 7-24V power supply VCC is connected to the negative pole of the positive pole GND (the back of the plate is marked).
    (CK COM CB) control output interface. When used as a mechanical switch, CB is usually not used. CK and COM form a switch.
6>. Output maximum control current: 10A
7>. Terminal platform: Android /IOS
8>. Operating temperature: 0 Celsius-60 Celsius

Product matching process:
1>. Search "eWelink" APP.
2>. Download and install the APP.
3>. Registration of APP software accounts with mobile phone numbers
4>. Login software after registration of OK
5>. An arbitrary button of the controller is pressed for 5 seconds, and the indicator light is flicker to uniform flicker.
    Then release the button and select the "+" add device in the landing software, and click the next step until the match is successful.
6>. Automatically add the name of the device after the completion of the automatic addition, click finish.

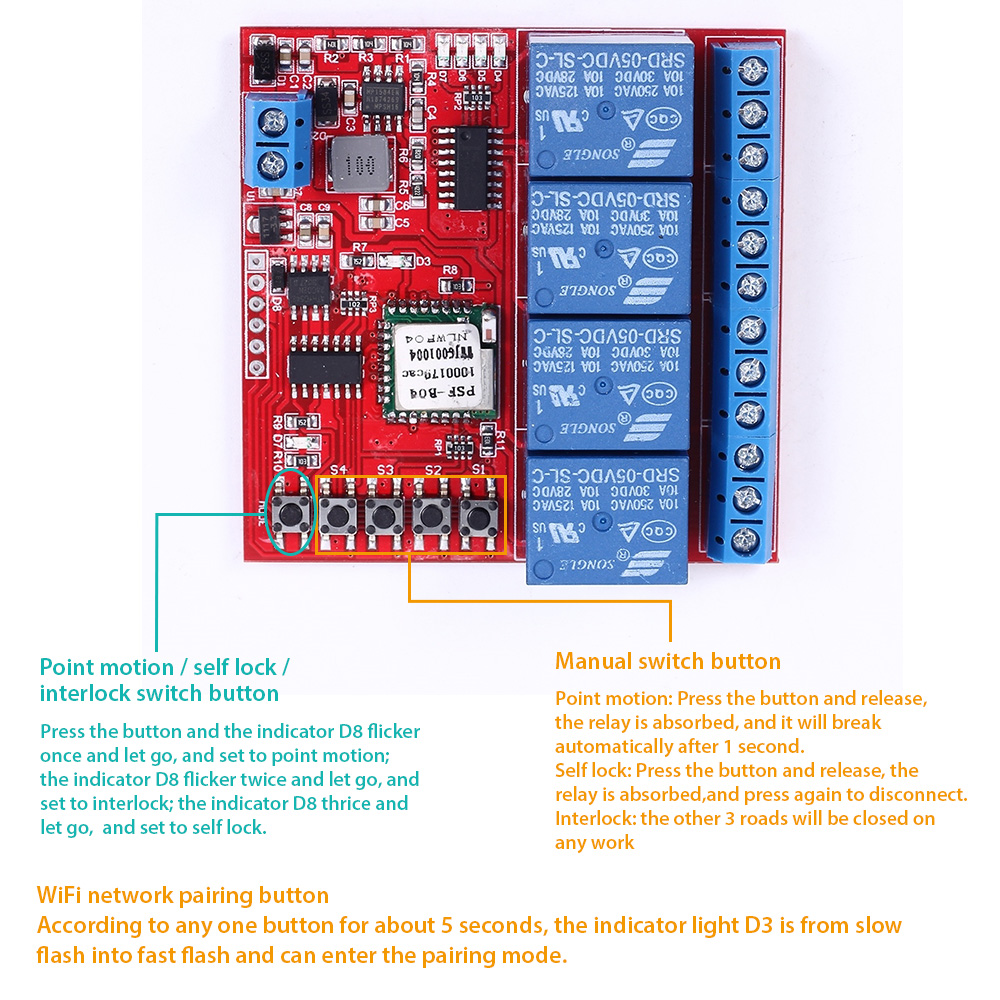

Button Definition:
