Home > LCD Module > OLED > 5PCS 0.91 Inch OLED LCD Screen Module, 3.3V-5V IIC 12832 Display Module, Blue Font Resolution 128*32 Screen Driver

5PCS 0.91 Inch OLED LCD Screen Module, 3.3V-5V IIC 12832 Display Module, Blue Font Resolution 128*32 Screen Driver

GY19470
5 9
$16.99 $12.57
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

1.Description:

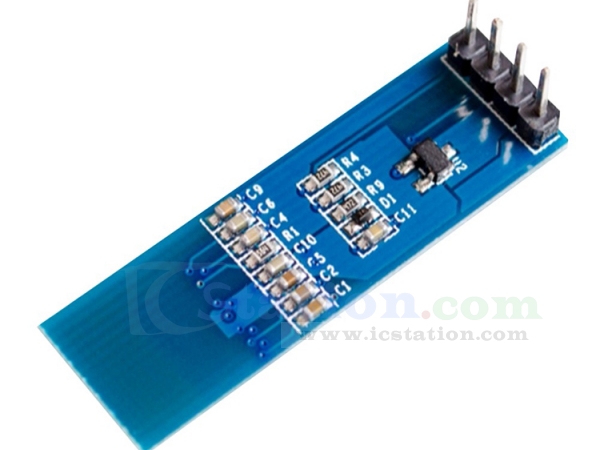

 It is a 0.91 inch OLED LCD display module.It has an OLED liquid crystal screen with self-luminous characteristics.It uses a very thin coating of organic materials and a glass substrate. When there is current passing through,these organic materials will emit light,and the OLED display screen has a large viewing angle and low power consumption.

2.Feature:
 1).It has high contrast and thin thickness.
 2).It has low power consumption and wide viewing angle.
 3).It has a large temperature range.
 4).Its response speed is fast.

3.Parameter:
 1).Product Name: 0.91 Inch OLED LCD Display Module
 2).Working Power:DC 3.3V-5V
 3).Screen Size:0.91 inch
 4).Resolution:128*32
 5).Display Color:Blue
 6).Driver IC:SSD1306
 7).Work Temperature:-25℃~85℃
 8).Work Humidity:5%~95%RH
 9).Size:38*12*5mm

4.IIC Interface Definition:
 1).GND:power ground
 2).VCC:power supply positive
 3).SCL:clock line
 4).SDA:data line

5.Package:
  5pcs 0.91 Inch OLED LCD Display Module
