Home > Power Module > Switching Power Supply > AC-DC 55-277V to 5V 600mA Isolated Switching Power Supply Buck Converter Module Step Down Module Voltage Regulator

AC-DC 55-277V to 5V 600mA Isolated Switching Power Supply Buck Converter Module Step Down Module Voltage Regulator

12452
5 9
$2.35 $1.65
Quantity5+10+
Price$1.99$1.65
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Description:
1>. Input Voltage Range: AC 55-277V; DC 70-390V
2>. No Load Power: <0.05W; max input power: 3.5W
3>. Output Voltage: 5V; max output voltage range: 4.9-5.3V or 4.8-5.2V; ripple wave 60mW
4>. Output Current: 0-600mA; output indicator lamp 1mA red light
5>. Output Power: 3W; efficiency 80%
6>. Output Protection: overvoltage, overcurrent, overtemperature, overpower, short circuit protection etc
7>. Applications: for zero line, live line intelligent switch, intelligent socket, equipment and instructions, other controllers etc.
8>. Working temperature:-25~85℃

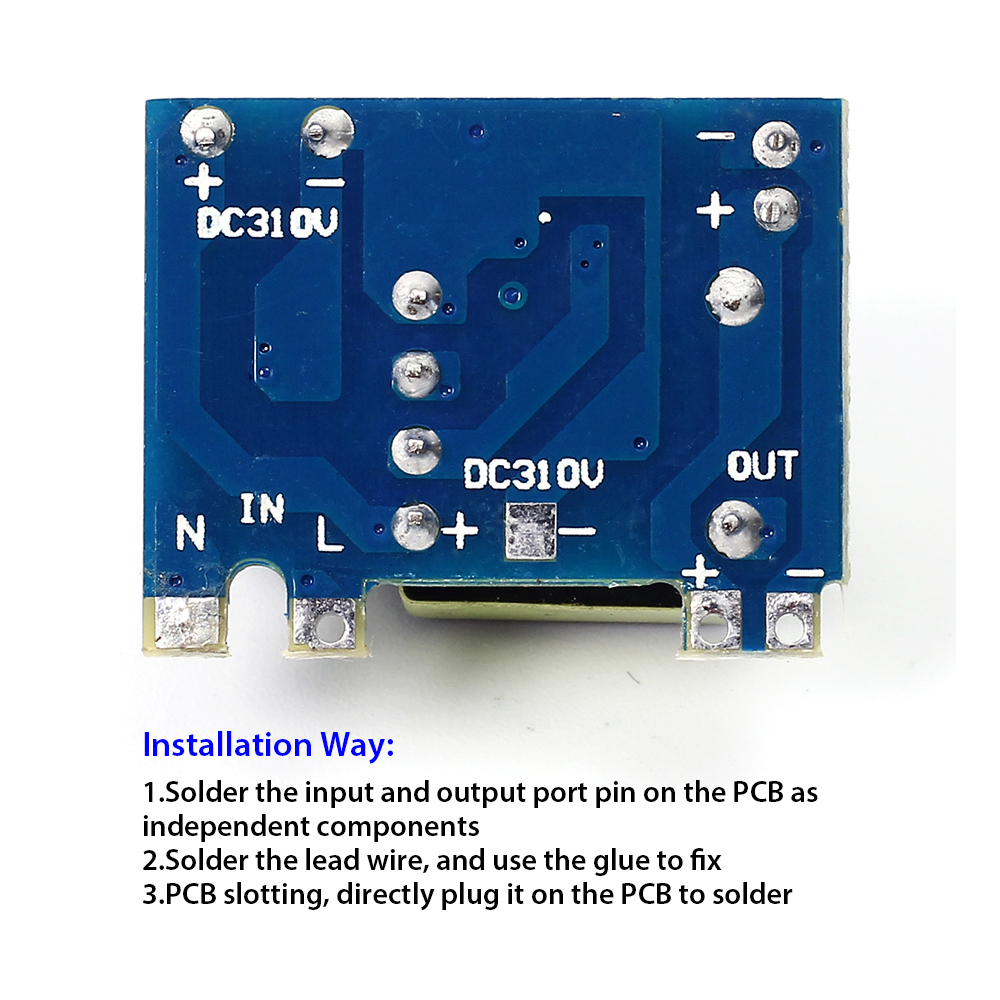

Installation Way:
1>. Soldering the input and output port pin on the PCB as independent components.
2>. Soldering the lead wire, and use the glue to fix.
3>. PCB slotting, directly plug it on the PCB to solder.


Note:
1>. If it is used in single live line intelligent on-off value, take off the LED and change the starting resistor will be OK;
2>. If you want to change 10M resistor into 20M, just remove the LED.

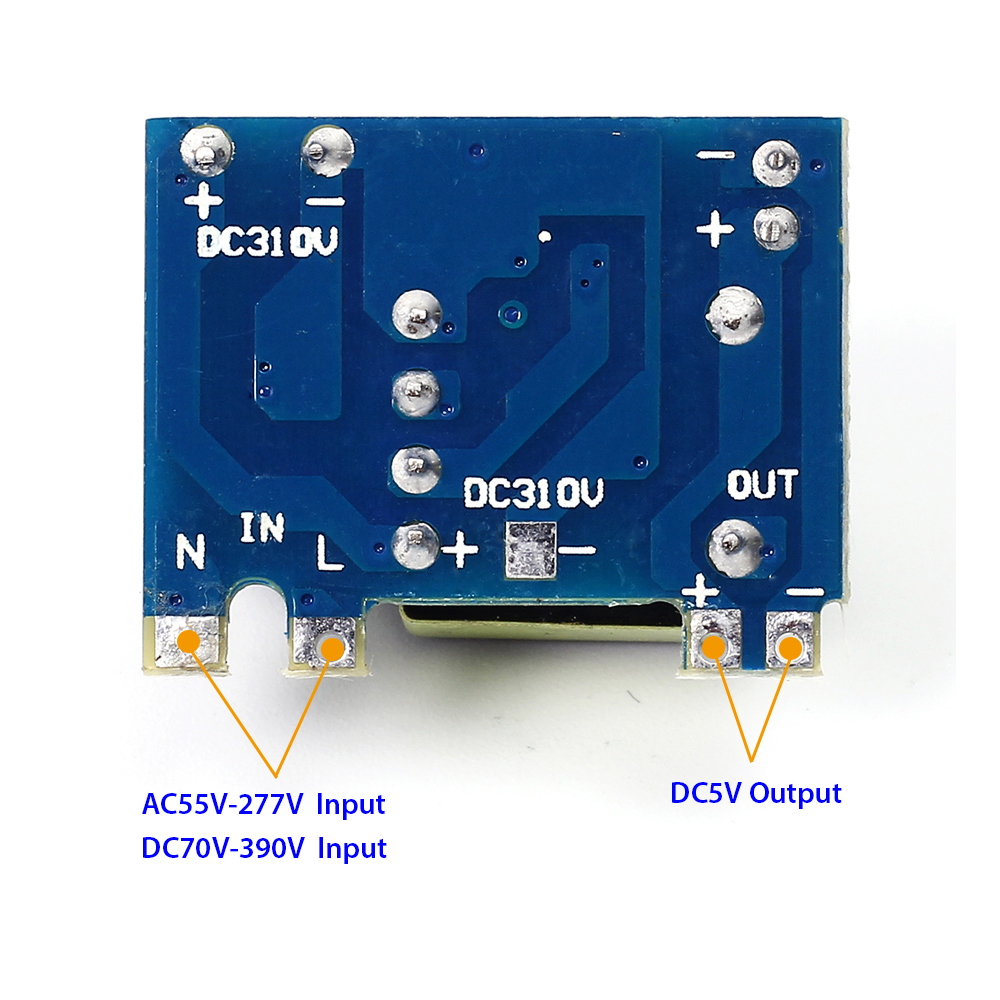

Pin Definition:

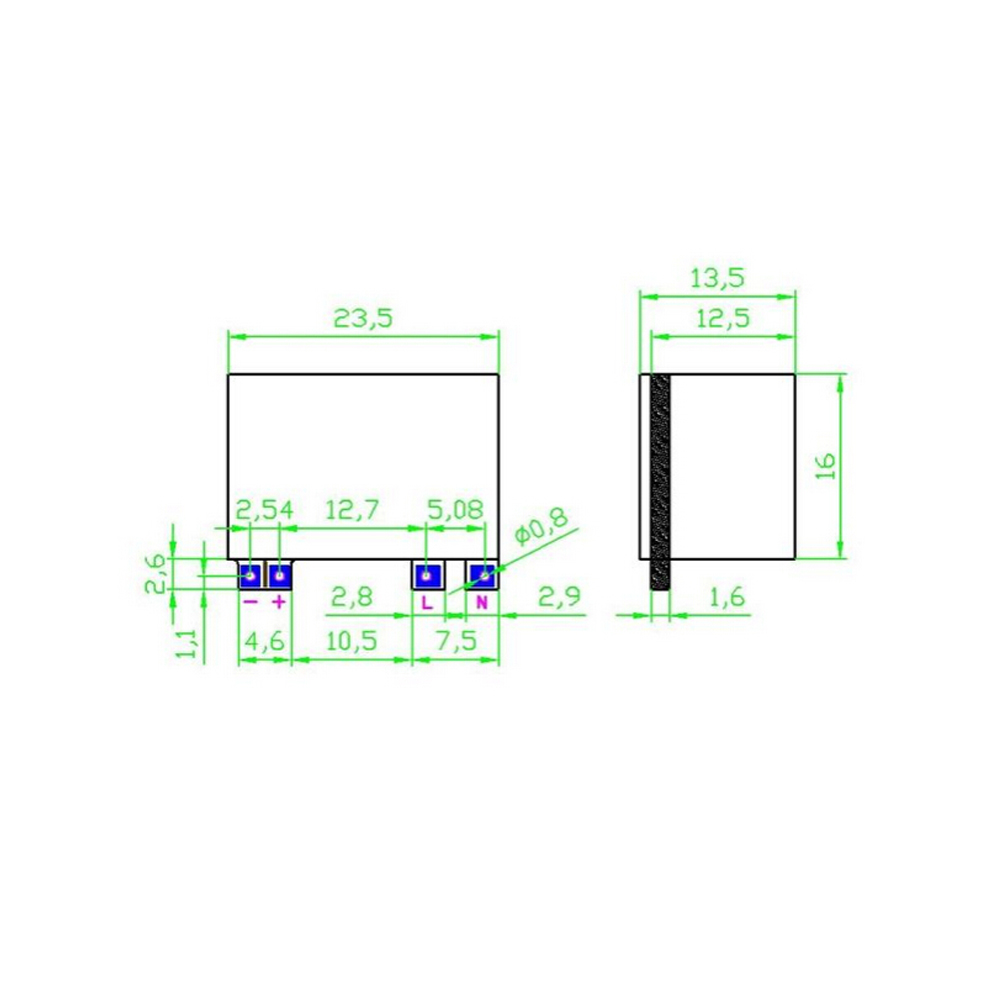

Size:






Quantity5+10+
Price$1.99$1.65
