AC-DC 3.3V 700mA Isolated Switching Power Supply Module 220V to 3.3V Step Down Buck Converter Voltage Regulator

12453
5 9
$2.49 $1.94
Quantity5+10+
Price$2.15$1.99
Time Remaining:
- OR - Add to Wish List

Description:
This product is insulated power supply module, and it has temperature, overcurrent and short circuit protection functions.
High/low voltage isolated, AC 85~265V wide voltage input; AC DC multiple use; 431 precise stabilivolt DC 5V output; small size; high reliability.

Parameter:
1>. Input Voltage: AC 85~265V, 50/60Hz; DC 100-370V
2>. Output Voltage: DC 3.3V (+/-0.2V)
3>. Output Current: 700mA
4>. Power: 3.5W
5>. Working temperature:-25~85℃

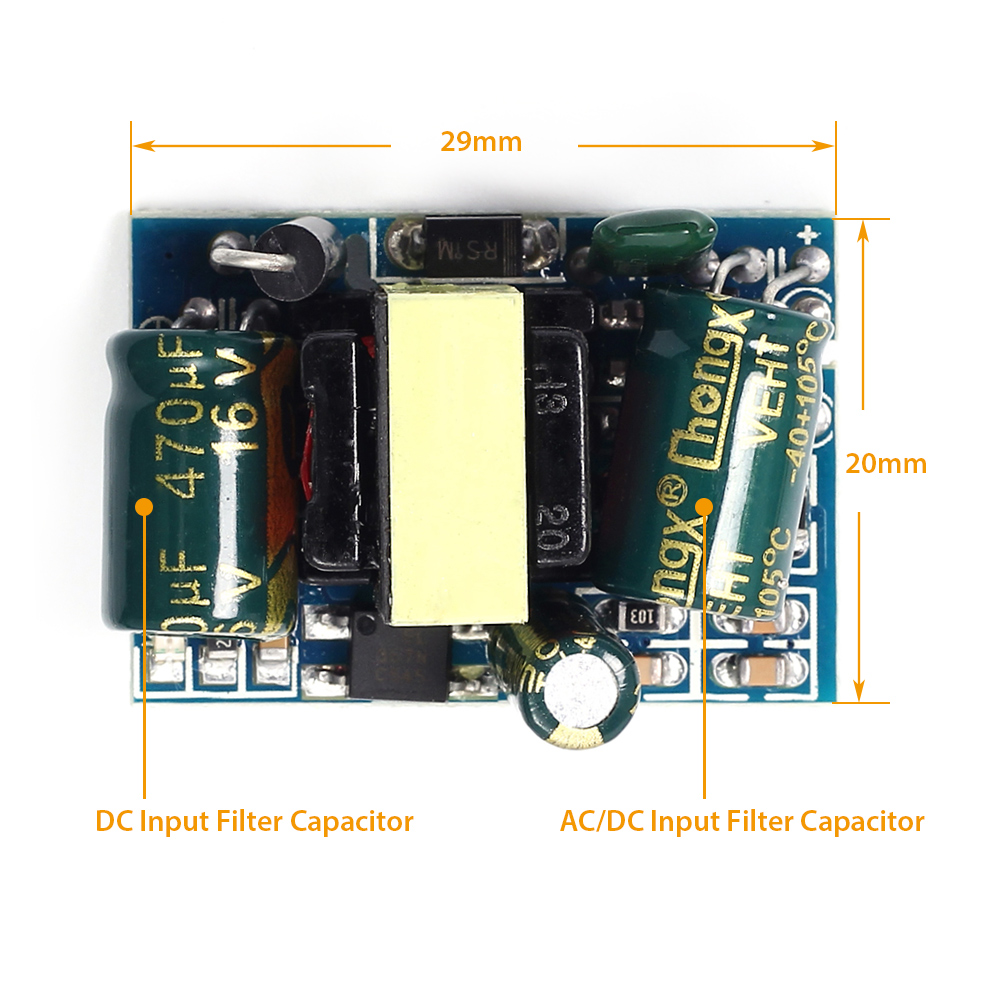

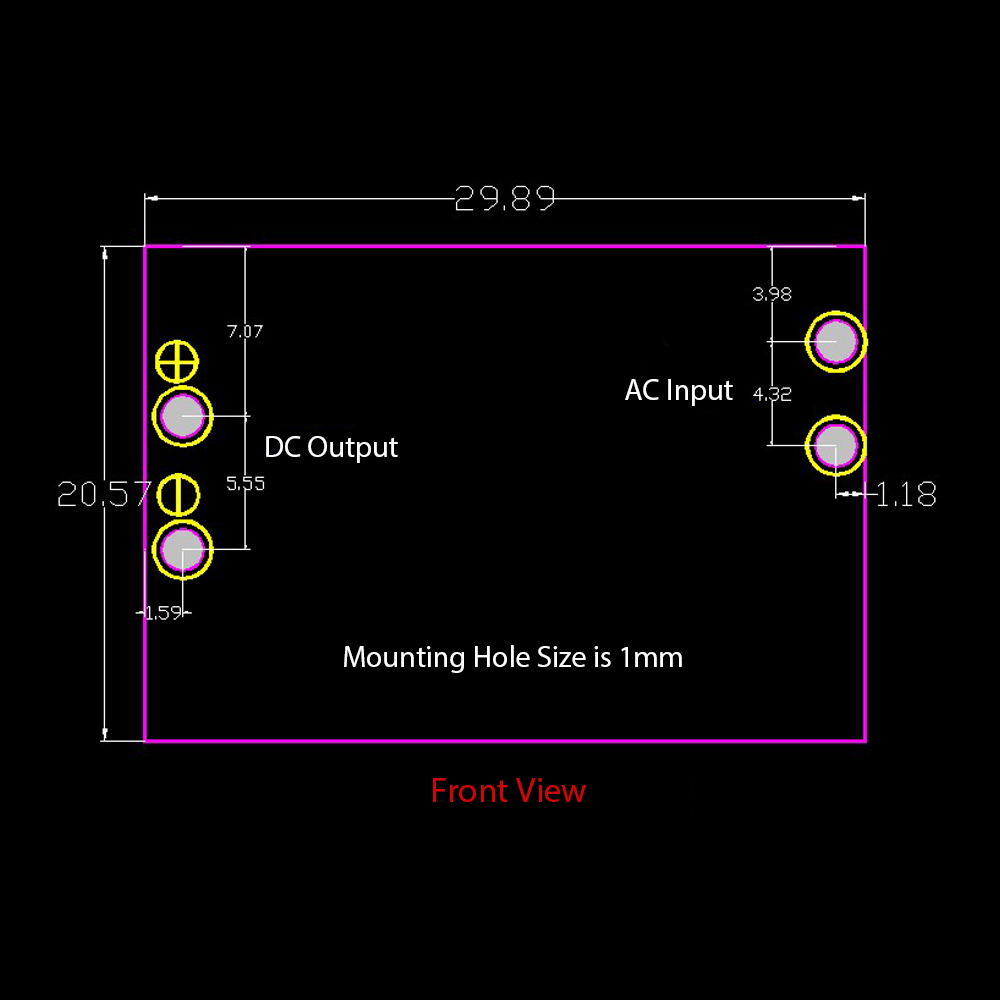

6>. Size:3*2*1.8cm

Using Conditions:

Parameter Unit Min Typ Max Test Condition
Operating Temperature Celsius -20   60
Relative Humidity %RH 40   90 No Cooling


Input Characteristics:

Parameter Unit Min Typ Max Test Condition
Input Voltage Range Vac 85 110/220 265 Full Load
Input Voltage Range Vdc 100 150/300 370
Input Current A 0.0273(AC110V) 0.014(AC220V) Full Load
Input Surge Current A 20 Full Load


Output Adjustment Rate Characteristics:

Output Voltage Min Current Max Current Peak Current Output Voltage Range Ripple Wave
+3.3V 0A 700mA 800mA 3.1-3.5V 60mV


Other Output Characteristics:

Parameter Unit Min Typ Max Test Condition
Output Power W 0 3.5 4 DC Output Power
Output Efficiency %   80   Rated Power
Power On/Off Overshoot %     10
Output Rising Time ms     100


Protection Function:

Parameter Unit Y/N Min Typ Max Restore Characteristics
Output Overvoltage Protection V   4.8   5.2 Locked, restart restore
Output Overpower Protection   Yes       Locked, restart restore
Short Circuit Protection   Yes       After remove the trouble, auto restore
Temperature Protection   Yes       Locked, restart restore
Overcurrent Protection   Yes       Locked, restart restore
