Battery Capacity Indicator Module for 3pcs Lithium Battery 12V

5 9
$1.75 $1.23
Time Remaining:
- OR - Add to Wish List

This is a 3S 12.6V Lithium battery power display panel.

Electrical Parameters:

Parameter Min value Typical value Max value Unit
Standby current(SW=OFF) 0 0 0 uA
Operate current 5 20 25 mA
Input voltage 9 12.6 26 V
Display accuracy 0.5 1 2 %
25% voltage range 10   10.7 V
50% voltage range 10.7   11.3 V
75% voltage range 11.3   11.9 V
100% voltage range 11.9   12.6 V
Ambient temperature -40 25 85 Celsius

1>. Size: 28*15*3mm
2>. Weight: 1.3g
3>. Input voltage range: 9-26V
4>. 4LED display, accuracy - /+1%

Warm tips:

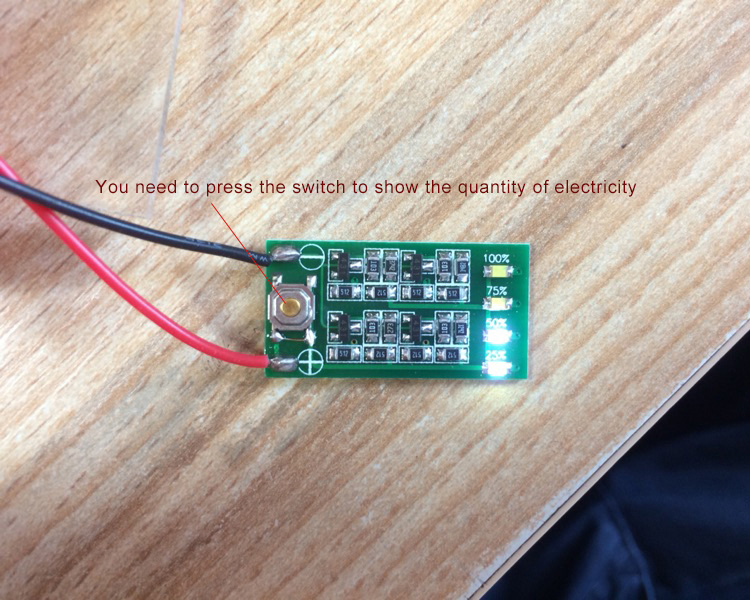

1>. You need to press the switch to show the quantity of electricity.
    If you need to display the quantity (consume the 20mA current), switch the two left and right pins of the switch to short circuit.
2>. The positive and negative poles of the input cannot be reversed.
