Bluetooth Audio Module Bluetooth Transceiver and Receiver Module Voice Prompt Bluetooth Module 3.3-5V

10548
5 9
$7.69 $6.00
Time Remaining:
- OR - Add to Wish List

Product Introduction:
1.Output Power:500mW (driving earphone);2Wx2 (driving loudspeaker)
2.Frequency Response Range:50Hz-18KHz
3.Equivalent Noise:>=30dB
4.Power Supply Voltage:3.3V-5.0V
5.Power Supply Current:50mA (driving earphone max volume);500mA (driving loudspeaker max volume)
6.Sound Track:stereo
7.Bluetooth:bluetooth 3.0
8.Bluetooth Transmit/Receive Frequency Band:2.4-2.485GHz
9.Bluetooth Transmission Type:audio/voice communication
10.Size:48.8*26.5*7mm

Features:
1.24 Bit DAC Output
2.With Voice Prompt
3.Receive Call/Callback,Voice Report Number
4.USB Sound Card Function
5.Red/Blue Double Color LED
6.With Audio Output

Application Details:

1.Power supply
Module port -, + respectively connected to the power (battery) negative and positive pole. The normal working voltage of this module is 3.3-5.0V, voltage should not exceed this range.

2.Key function
PREV / V-: short press means Previous song, long press means volume -
NEXT / V +: short press means Next song, long press means volume +
P / M: short press to switch mute / non-mute, long press to switch mode
CALL: Short press to answer the call, long press to call back
REJECT: Short press to hang up the phone

3.Audio output
This board is designed with headphone jack, as the Bluetooth module audio output port, the audio output power of 500mW, you can drive the headset (this port output is the audio signal can not directly drive the speaker),or connect an external power amplifier.

4.External speakers
This module onboard 2WX2 Class AB audio amplifier, can directly drive low-power speakers; speakers are respectively connected with SP_L and SP_R port(Note the positive and negative pole).

5.LED status display
This module is equipped with red and blue LED to display the Bluetooth working state:
 Waiting for connection status: red and blue alternately flashing
 Connected phone status: blue light long
 Bluetooth playback Music state: red and blue at the same time off for 4 seconds and then bright for 0.2 seconds, cycle flashing!

6.MUTE control (external amplifier control)
MUTE output port on the board can control the external amplifier mute; normal playback when the output is high, pause when the output is low.

7.Bluetooth connection step
1: Connect with module power, red and blue color LED flashing alternately.
2: Go to the Bluetooth settings, click on the search for Bluetooth devices, search for a name "Bluetooth playe", Click on the link.
3: open the phone music player to play music, the phone audio can come out from the Bluetooth module.

8.Bluetooth answer / call
When Bluetooth and the phone is connected, Bluetooth will voice a call phone number and ring if there is a call. You can press the CALL key on the Bluetooth module to answer the call or REJECT to hang up the call. In the non-call state, you can press the CALL key for 2 seconds to call back.

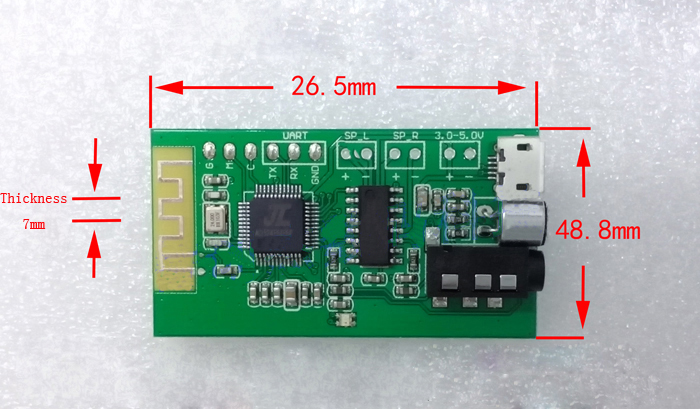

Size Picture:

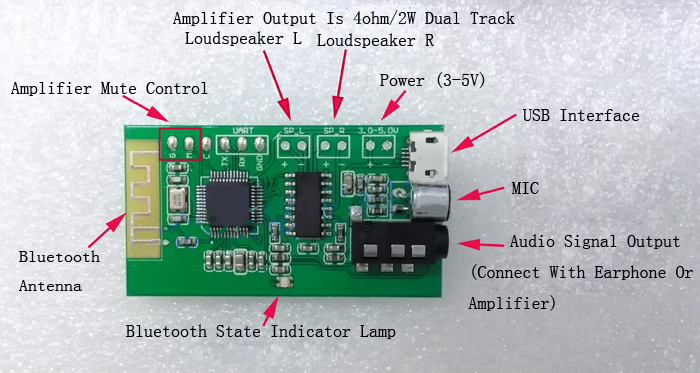

Connection Picture:

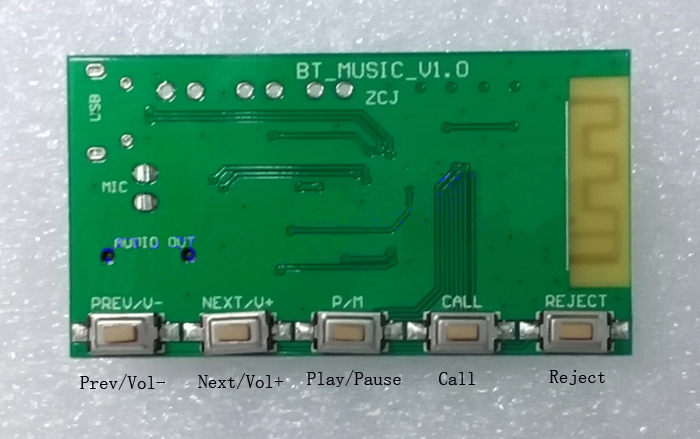

Key Introduction:
