Home > Sensor Module > Pressure Sensor Module > BMP280-3.3 High Intensity Atmospheric Pressure Sensor Module For Industrial Control

BMP280-3.3 High Intensity Atmospheric Pressure Sensor Module For Industrial Control

9910
5 9
$2.69 $2.02
Time Remaining:
- OR - Add to Wish List

Features:
1.Pressure Range::300-1100hPa (equiv. to +9000~-500m above/below sea level)
2. Footprint: 2.0 × 2.5mm2, height: 0.95mm
3. Relative Accuracy:+/-0.12hPa, equiv. to ±1m (950~1050hPa  25°C)
4. Absolute Accuracy: typ:+/-1hPa (950 to 1050hPa, 0 to +40°C)
5. Temperature Coefficient Offset (25 to 40°C  900hPa):1.5Pa/K, equiv. to 12.6cm/K
6. Digital Interfaces:I2C (up to 3.4MHz);SPI (3 and 4 wire,up to 12.6cm/K)
7. Current Consumption: 2.7uA  1Hz sampling rate
8. Temperature Range: -40 to +85°C
9. RoHS compliant, halogen-free
10. Board Size:15.55*12.05mm


Applications:
1.Enhancement of GPS navigation (e.g. time-to-first-fix improvement, dead-reckoning, slope detection)
2. Indoor navigation (floor detection, elevator detection)
3. Outdoor navigation, leisure and sports applications
4. Weather forecast
5. Health care applications (e.g. spirometry)
6. Vertical velocity indication (e.g. rise/sink speed)

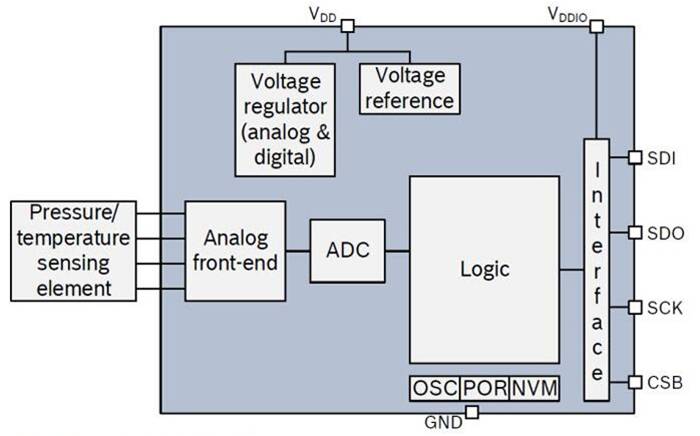

Bloack Diagram:

Temperature Coefficient Offset (25 to 40°C @900hPa): 1.5Pa/K, equiv. to 12.6cm/K
