BYS200-U MP3 Sound Voice Module w/ Key And Loudspeaker 3.7-4.2V For Greeting Card

11666
5 9
$7.39 $5.91
Time Remaining:
- OR - Add to Wish List

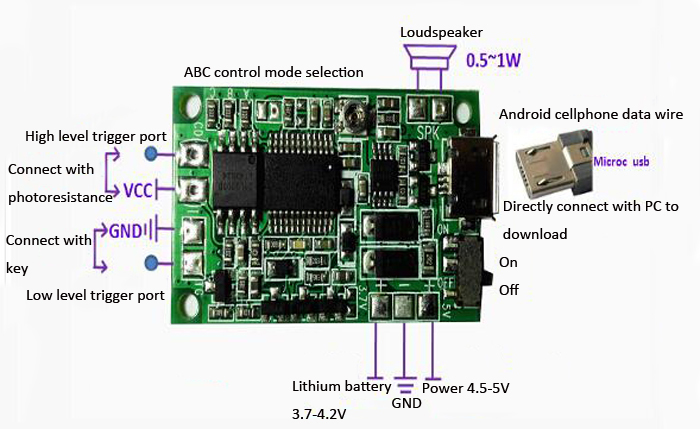

Product Introduction:
1.Power Supply Voltage:4.2V (lithium battery)
2.Loudspeaker:8 ohm/0.5W
3.Memorizer Capacity:4M
4.With USB socket
5.Voice Trigger Way:6 kinds modes
6.Three ABC resisters supplied for trigger way

Application Fields:
1.Consumer Electronics:toys,gift cases,greeting cards,promotion products,music boxes
2.Industrial control
3.Safety guard prompt
4.Advertisement campaign

Selection Control Mode Applications:(3.3K connects with ground is 0,hanging is 1)
1.When ABC resistors are 000
  1)After press the key,trigger and play for once then stop,if there is trigger in the halfway,it will not be interrupted;
if long press time is longer than current song,it will auto cycle playing;if up in the halfway it will play for once then stop
  2)IO connects with ground;power on cycle playing until power off

2.When ABC resistors are 001
  1)ON/OFF function:press for once will play;if press again will stop immediately during playing;
if press the key in stop state,it will play from the beginning;after play for once it will stop

3.When ABC resistors are 010
  1)If press for once it will play;if press again when playing,it will be interrupted then play from the beginning,and play for once then stop
  2)IO connects with ground,power on will play for once then stop

4.When ABC resistors are 011
  1)If press for once it will play;if press again when playing,it cannot be interrupted until it sounds in the end;after sounding,press will be valid

5.When ABC resistors are 100
  1)Connect with photoresistor;if there is light,it will play;otherwise it will stop

6.When ABC resistors are 101
  1)Connect with photoresistor;if there is light,it will cycle playing;otherwise it will stop
