CH340C USB to TTL Converter Serial ISP Micro USB Download Module with DuPont Cable for C51 STM32

13074
5 9
$2.99 $2.09
Quantity10+
Price$2.59
Time Remaining:
- OR - Add to Wish List

Description:

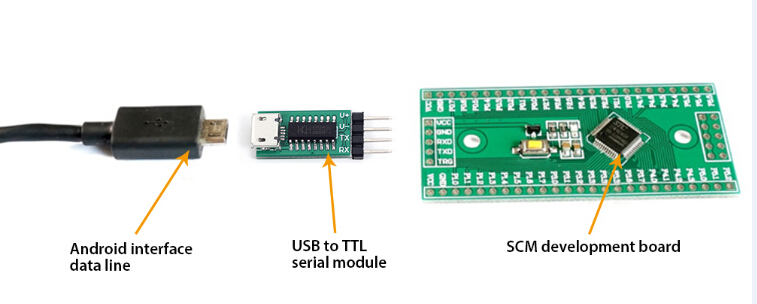

This is a very small size of the USB to TTL serial module. The module uses the Micro USB interface and is compatible with the Ardriod data line. The width of the module is equal to the width of the Android data line plug. It is very convenient to insert it directly on the data line Micro USB plug. Compared to the use of the A type USB common head interface, the USB transfer TTL module on the PC is directly inserted. This module is more convenient to connect the other serial ports, such as the development board.

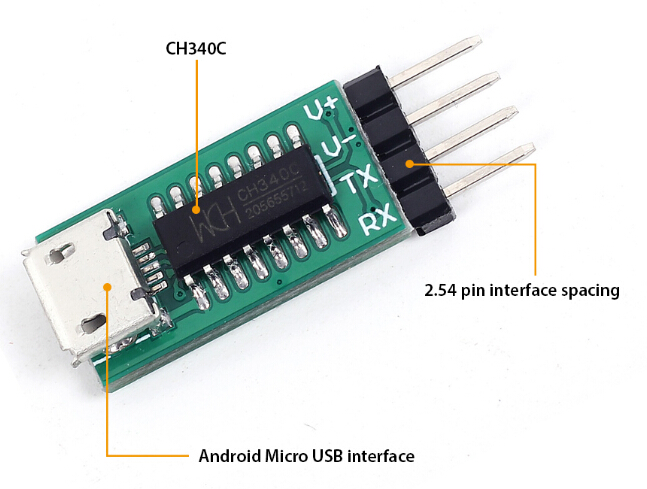

    The module is based on the CH340 chip, which is exactly the same as that of the CH340G and CH340T chips. The module can be used for downloading MCU downloaded programs such as STC MCU and other supporting serial port downloader programs, or as serial communication lines between PC and MCU, which is stable and reliable.

Parameters:

No. Parameter Value
1 Working voltage 5V or 3.3V
2 Default operating voltage Windows xp 7, 8, 10
3 Baud rate 5V
4 Check -40 Celsius to 85 Celsius
5 Operating system 50-2MHz
6 Working temperature 5, 6, 7, 8bit
7 Data digits Send, couple, none, mark
8 Stop bit 1, 2


Features:
1>. Plugged in Micro USB interface, strong and durable
2>. Connect to the Android data line
3>. Support STC MCU downloader
4>. Support the STM8 download program with bootLoader
5>. Support the Arduion download program with bootLoader
6>. Support STM32 serial download program

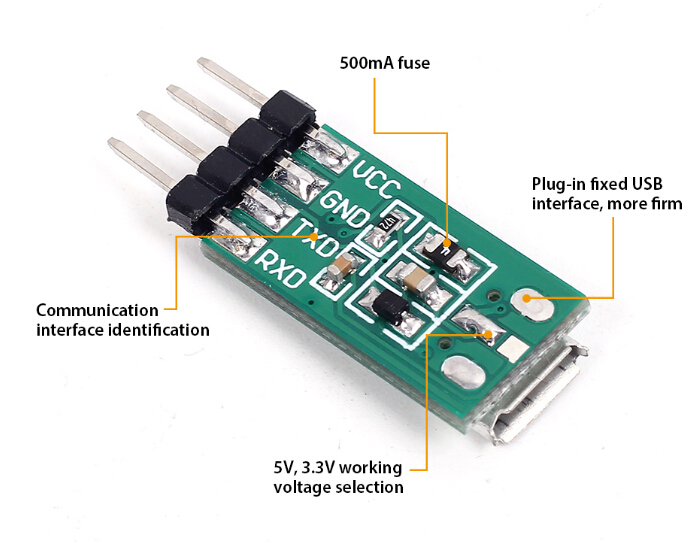

Wiring Description:
1>. Pin description:

No. Pin Function Remark
1 V+
VCC
Power positive input and output When 5V output voltage, 5V power output
when 3.3V is working voltage, external 3.3V power supply
2 V-
GND
Power negative electrode 0V
3 TX
TXD
Data transmitter Connecting MCU or target board data receiver
4 RX
RXD
Data receiver Connecting MCU or target board data receiver

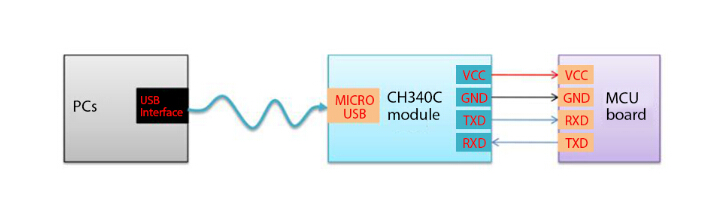

2>. Wiring instructions:



Package List:

No. Items Qty
1 USB to TTL Serial ISP Download Module 1
2 DuPont line length 20cm 4


Product Details:

Quantity10+
Price$2.59
