AC-DC Converter Dual Channel Dual Output Step Down Power Supply Module AC 85V-265V to DC 5V/24V

13124
5 9
$5.49 $4.12
Time Remaining:
- OR - Add to Wish List

Features:
1>. It is convenient to install the product, and the pre-positioned pin (T type pin) is used directly on the mainboard.
2>. Universal input voltage: 85-264V AC or 110-370V DC.
3>. High efficiency, high power density, high output voltage.
4>. Input and output high isolation.
5>. DC output main/secondary road high isolation, pressure man 1 KV.
6>. Overcurrent protection, short circuit protection and temperature protection.
7>. Output the built-in capacitive filter (no filter inductance), and can be used without external filter circuit.

Input Characteristic:

No. Input Value
1 AC input(VAC) 85-264
2 DC input(VDC) 110-370
3 Frequency range(Hz) 47-63
4 Input current(A) 0.05/115VAC  0.25/230VAC
5 Surge current(A) Cold start:10A/230VAC
6 Workpiece ratio(TYP.) 78
7 Stand-by consumption(mA) ≤200mW/230V AC


Output Characteristic:

Input voltage(VDC) 5V/24V
Input voltage precision Main circuit:±1%, Side circuit: ±10%
Rated current(ADC) 0.5A/0.1A
Rated power (W) 5W
Ripple and noise(mvp-p> Rated input voltage, 20MHz  Main circuit≤50mV
 Side circuit≤300mV
Line Regulation Full load ±1%
Load Regulation 10-100% load ±3%
Start/up time Full load 2000ms, 30ms/115VAC
1000ms, 30ms/230VAC
Maintain (ms) Full load 16ms/115 VAC ;50ms/230VAC
Overload protection Rated input voltage 115%-150% of rated output power
Protection mode: hiccup mode, the abnormal condition of abnormal load can be automatically returned.
Short-circuit protection Rated input voltage Long - term short circuit, self - recovery
Over-current protection >1.1 time Io
Start delay time(ms) Vin:230 VAC 500ms
Power-off protection time(ms) 20ms
Input voltage(VDC) 5V/12V
Input voltage precision Main circuit:±1%, Side circuit: ±5%
Rated current(ADC) V01:0.24V; V02:0.15V
Rated power (W) 3W
Ripple and noise(mvp-p> Rated input voltage, 20MHz band width  ≤50mV
Line Regulation Full load ±1%
Load Regulation 10-100% load ±3%
Start/up time Full load 2000ms, 30ms/115VAC
1000ms, 30ms/230VAC
Maintain (ms) Full load 16ms/115 VAC; 50ms/230VAC
Overload protection Rated input voltage 115%-150% of rated output power
Protection mode: hiccup mode, the abnormal condition of abnormal load can be automatically returned.
Short-circuit protection Rated input voltage Long - term short circuit, self - recovery
>1.5 time Io
Start delay time(ms) Vin:230 VAC 500ms
Power-off protection time(ms) 20ms


General Characteristic:

Working temperature(℃) / -25 to 75
Working humidity(RH) / 20 to 90%, non-condensing
Temperature drift coefficient / ±0.02%/℃
Storage temperature and humidity -40 to 85 Celsius 10-95%RH
Switching frequency(KHz) 5-65(Frequency conversion control chip)
Insulation voltage(VAC) Input to output
Test 60s, ≤5 mA
3KV≤5mA 60S
Insulation  resistance (M Ohm) Input to output500VDC 100
Leakage current(mA) 500VDC Input to output  ≤ImA/RMS Value
MTBF @25 Celsius >215000H
Safety class / Suitable for: CLASS B
Beam vibration / 10—500Hz 2G 10Minutes/cycle. X, Y, Z 60minutesrespectively
electromagnetic compatibility / Suitable for:EN55022(C1SPR22)Class B EN61000-3-2,-3
Remark 1. Except for special instructions, the parameters of this specification are measured at 230VAC, rated load and 25c ambient temperature.
2. Ripple and noise measurement method: use a 12 "twisted pair, and the terminal shall be connected in parallel with the capacitance of 0.1uf and 10uF, and shall be measured at 20MHz bandwidth.
3. Accuracy: including the rounding error, linear adjustment rate and load adjustment rate.
4. The power supply shall be regarded as part of the internal components of the system, which shall be confirmed by electromagnetic compatibility with the terminal equipment.
5. The output should be reduced under low input voltage.







Wiring Instruction:

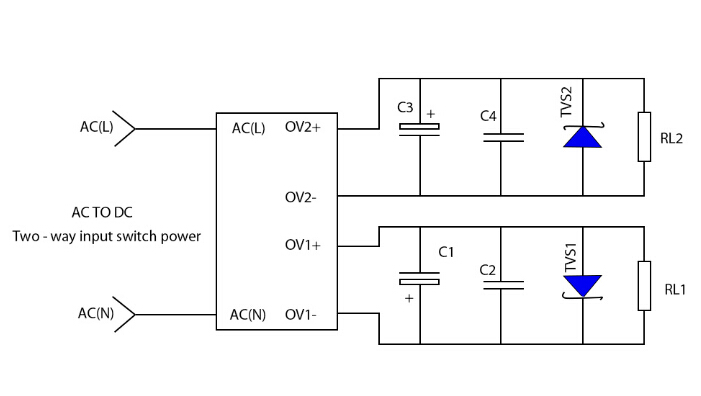

1>. Typical circuit:

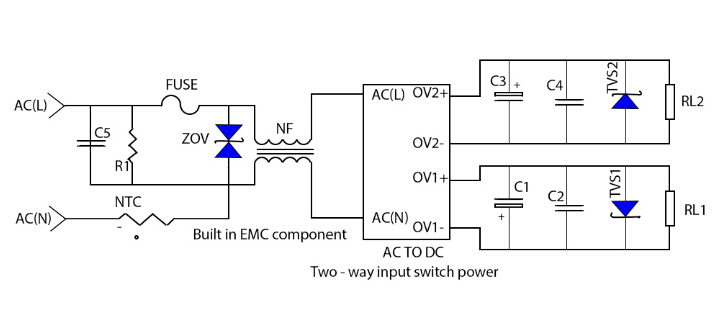

2>. Emergency solution--Recommended circuit:

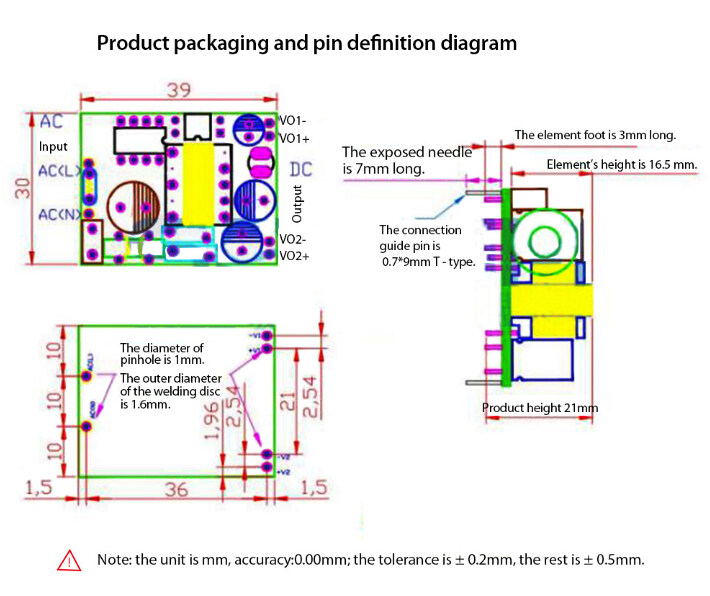

Pin Definition:
