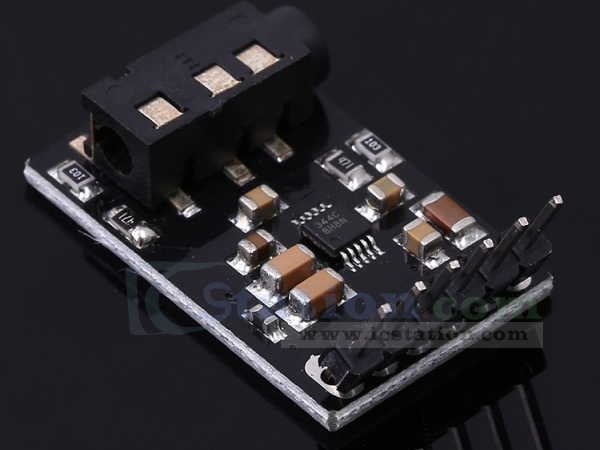

CS4344 24Bit DAC Converter Stereo Audio Module

13518
5 9
$5.25 $3.94
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
Description:
    TThe CS4344 family members are complete, stereo digital-to-analog output systems including interpolation,multi-bit D/A conversion and output analog filtering in a 10-pin package. The CS4344/5/6/8 support all major audio data interface formats, and the individual devices differ only in the supported interface format.

    The CS4344 family is based on a fourth order multi-bitdelta-sigma modulator with a linear analog low-pass filter.This family also includes auto-speed mode detectionusing both sample rate and master clock ratio as a method of auto-selecting sampling rates between 2kHz and 200kHz.

    The CS4344 family contains on-chip digital de-emphasis,operates from a single +3.3V or +5V power supply,and requires minimal support circuitry. These featuresare ideal for DVD players & recorders, digital televisions,home theater and set top box products, and automotiveaudio systems.

Parameter:
1>.Work Voltage:DC 3.3V~5V
2>.Protocol:None
3>.Work Temperature:-40℃~125℃
4>.Work Humidity:0%~95%RH
5>.Size:27*17*7mm

Features:
1>.Multi-bit Delta-Sigma Modulator
2>.24-Bit Conversion
3>.Automatically Detects Sample Rates up to 192kHz
4>.105dB Dynamic Range
5>.-95dB THD+N
6>.Low Clock Jitter Sensitivity
7>.Single +3.3 V or +5 V Power Supply
8>.Filtered Line Level Outputs
9>.On-Chip Digital De-emphasis

Package:
1pcs CS4344 24Bit DAC Converter Stereo Audio Module
1pcs 6Pin 2.54mm Male Pins
