DC 12V Delay Relay Module Cycle Timer 1-999min Intermittent Work Mode PWM Type Switch Controller Module

5 9
$6.99 $4.89
Time Remaining:
- OR - Add to Wish List

Cyclic delay module is work like intermittent spring eruption.Work and stop work by setting time.

1>. Power off memory function.
2>. LED indicator indicates working status.
3>. Working time and stop time can be setting.
4>. It will keep NC status for 4second after power on and then ON.
5>. The remaining time will be displayed in real time.
6>. Accuracy is minute.
7>. It is a switch module,not a power module,it can not output voltage.


No. Parameter Value
1 Mode XH-M172
2 Work voltage DC 12V
3 Time range 1-999 minutes
4 Control Load 10A

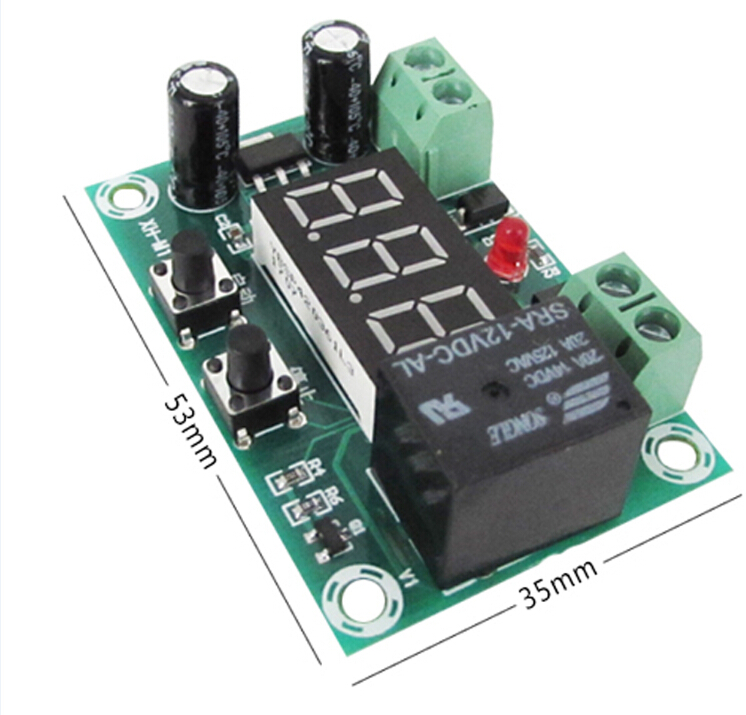

5 Size 64*40*26mm

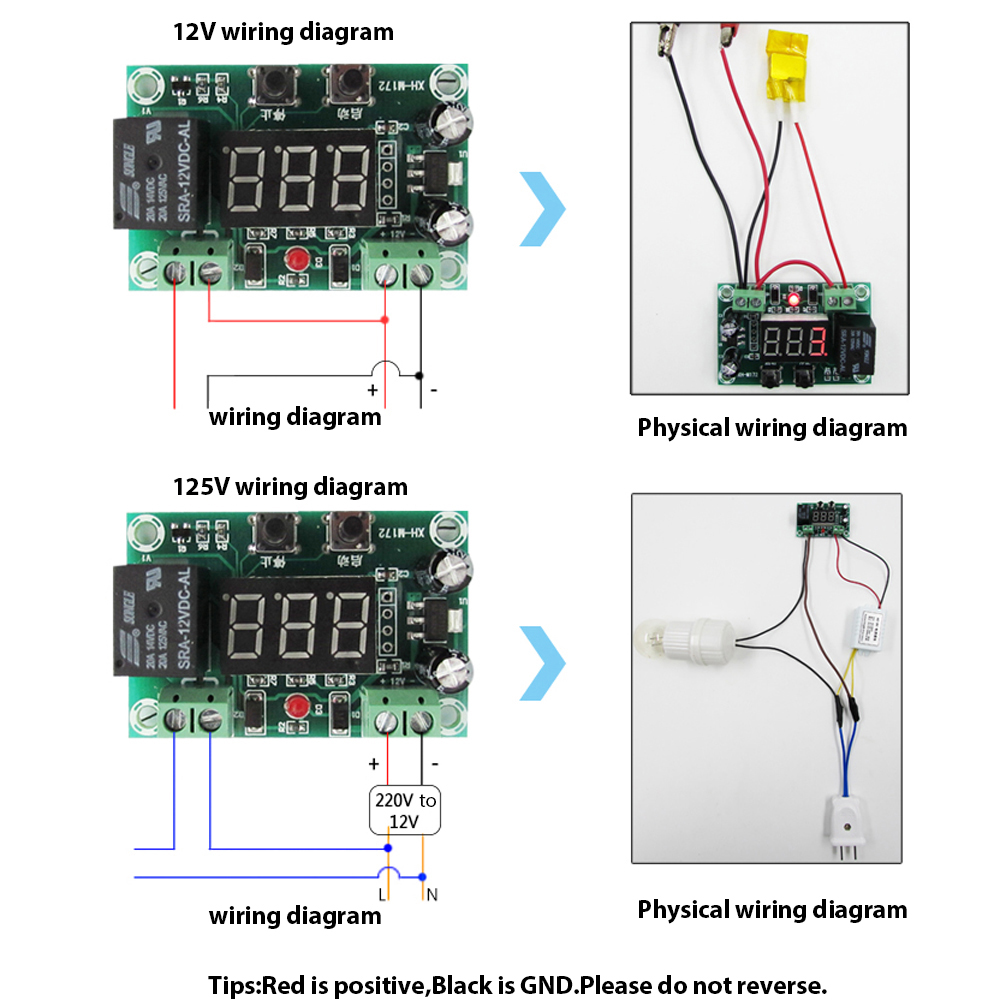

Use Manual:

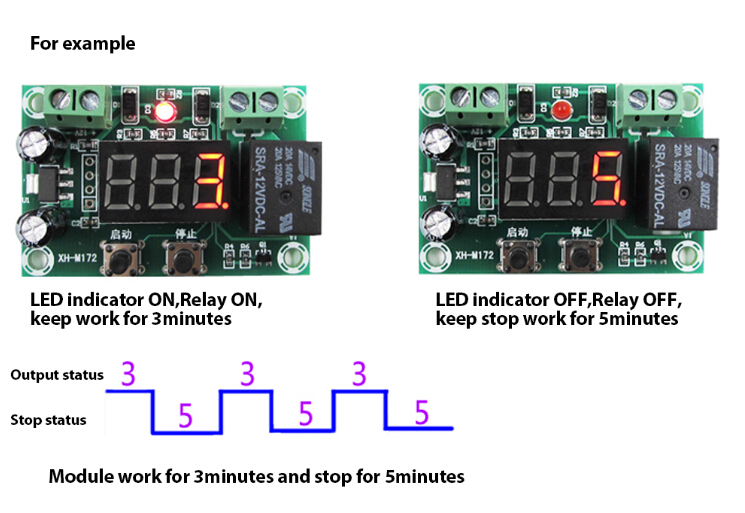

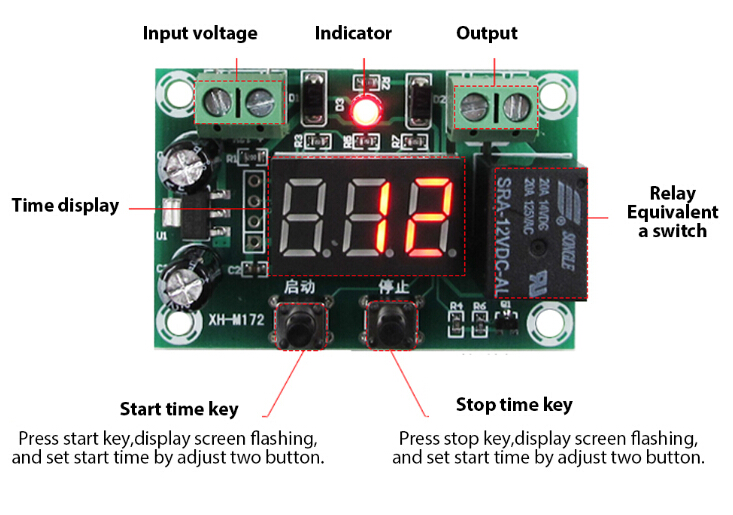

1>. Display start time:Short press ‘start key’ will display start time for 5second.
2>. Set start time:Long press ‘start key’ for 3secod to set start time.Display screen will flashing and LED indicator will OFF.Adjust start key and stop key to set time.It will save automatically after 5second.
3>. Display stop time:Short press ‘stop key’ will display stop time for 5second.
4>. Set stop time:Long press ‘stop key’ for 3secod to set stop time.Display screen will flashing and LED indicator will OFF.Adjust start key and stop key to set time.It will save automatically after 5second.

1>. Motor
2>. Robot
3>. Smart home
4>. Industrial control
5>. Automatic irrigation
6>. Indoor ventilation

Frequency asked questions:
1>. What it will display ‘1’ or ‘001’ if set time is 1 minute?
Q : It will display ‘1’ at last digital tube.
2>. Is it possible to save the settings after the power is turned off?
Q : Yes,it will save setting automatically.
3>. Can it set work for 12hour and stop for 5second?
Q : No,it can not.The shortest setting time is minutes and accuracy is minute.
4>.What the output voltage?
Q : It can not output voltage.It is a switch module,just work like a switch.
