DIY Kit AVR Development Board (NO Chip) for ATmega8 ATmega48

5 9
$3.35 $2.65
Time Remaining:
- OR - Add to Wish List
NO Chip for this DIY Board
1, supply voltage: the USB socket or pin female power supply voltage and the operating voltage of the same chip;
2, Crystal: 8M;
3, PCB board size: 7.4cm * 3.4cm;
PCB board *1
28P locking seat*1
USB female*1
DC3-10 horns seat*1
8 * 8 self-locking switch*1
40P pin*1
8M crystal*1
22P ceramic capacitors*2
104 ceramic capacitors*2
3MM LED red*2
6 * 6 buttons*1
4.7K resistor*2
10K resistor*1

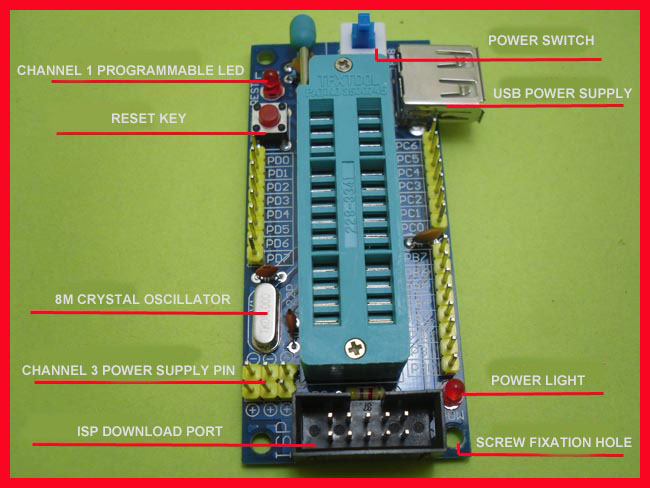

Details about this DIY Kit AVR Development Board
