Red DS18B20 6-15V Digital Display Thermometer Module Photosensitive Control Module

12139
5 9
$8.99 $7.37
Time Remaining:
- OR - Add to Wish List

Product Introduction:
1.Adopt DS18B20 digital temperature sensor to achieve high precision temperature measurement

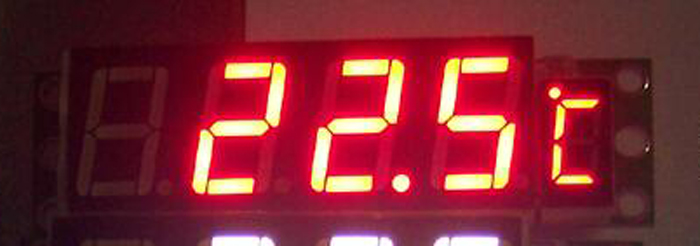

2.Display adopts 0.56 inch 4-bit +0.36 inch 1-bit highlight digital tube
3.Measurement Display Range:-50~+125 celsius
4.The thermometer defaults to use 6-15V DC power
5.Operating Current:60mA
6.Photosensitive control function,and the display brightness will change according to
  ambient brightness.
7.Precision 0.1 celsius temperature control output function,and users can set temperature
  control upper limit and lower limit.
8.Output temperature control signal voltage is lower 0.5V than power supply voltage,and
  it has 300mA driving capacity;it can directly drive small relay etc.

Features:
1.Intelligent photosensitive control
2.0.1 celsius precision temperature control signal output function
3.Temperature control signal reverse phase output function,and it can be applied to
  temperature alarm,refrigerating,heating etc.

Parameter Settings:

1.In normal operating state,long press SET key,please loosen the SET key when it displays
  th on the screen;then enter into temperature control parameter setting state,and it will display
  th value (temperature control upper value) on the screen. +,- key is for adjusting the value,
  and the range is -50.0~125.0;short press the key is for stepping adjustment,and long press +,- key is for fast adjustment.
2.Press the SET key,then it will display tL on the screen;if loosen the key,then it will display
  tL value (temperature control lower value).+,- key is for adjusting the value,and the range is -50.0~125.0;
  short press the key is for stepping adjustment,and long press +,- key is for fast adjustment.
3.Press the SET key,then it will display AL on the screen;if loosen the key,then it will enter into
  temperature control output mode setting;the screen will display AL0 or AL1,pressing +,- key can modify the value 0 or 1.

  AL0 Definition:measured temperature >= temperature setting upper value,or measured temperaure <= temperature setting lower value,
                 and the temperature control output port will output voltage
  AL1 Definition:temperature setting lower value < measured temperature < temperature setting upper value,and
                 temperature control port outputs voltage.

4.Press the SET key,it will display SAV on the screen;parameters will be saved and come back to normal operating state
5.Exceptional Circumstances:if the temperature setting lower value >= temperature setting upper value;then
  when temperature control output mode is AL0,the temperature control output port will output voltage;
  when the temperature control output mode is AL1,then the temperature control output port has no voltage continuously.

Display Screen Brightness Setting:
If users want to change the brightness on the screen,or let the brightness change according to ambient brightness,
please set as below:
1.The thermometer should be placed in normal operating position,and let the photosensitive resistor receive ambient
  light normally;there cannot be any barriers or reflection of light.

2.The Display Brightness Settings In Maximum Ambient Temperature
  When ambient light reaches to the strongest,if long press the SET key,then it will display bh on the screen;
  if loosen the SET key,it will enter into brightness upper value setting state,and it will display bh value
  on the screen;pressing +,- key can adjust reasonable brightness (the adjustment range is 1-20,and the brightness
  will be changed at the same time when adjust the value);press the SET key,the screen will display SAV;and the
  setting parameters will be saved and come back to normal operating state.

3.The Display Brightness Settings In Minimum Ambient Temperature
  When ambient light reaches to the weakest,if long press the SET key,then it will display bL on the screen;
  if loosen the SET key,it will enter into brightness lower value setting state,and it will display bL value
  on the screen;pressing +,- key can adjust reasonable brightness (the adjustment range is 1-20,and the brightness
  will be changed at the same time when adjust the value);press the SET key,the screen will display SAV;and the
  setting parameters will be saved and come back to normal operating state.

4.Notice:if there is no +,- operations on the parameter when setting,then it is invalid setting and the data won't be saved

5.After finish setting,when the ambient brightness is changing from the weakest and the strongest,then the brightness on
  the display screen will be changed in the range of lower value and upper value.

6.When the brightness upper value is equal to lower value,then the brightness of the screen is fixed and won't change.

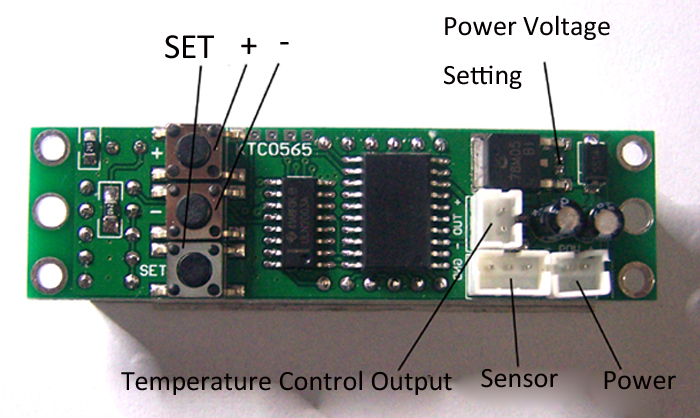

Connection:
1.Temperature control output wire (orange+/blue-) length 20cm;power wire (red+/black-) length 20cm;
  sensor wire (white) length 30cm.
2.Note:If users don't want to use temperature control function,please do not plug in the temperature
  control output wire in case of short circuit.
