BY-F610 12V/24V Industrial Grade Voice board/module serial voice broadcast/multi-channel

5 9
$23.69 $18.48 (only 0 pcs )
Time Remaining:

Sold out

Cheaper Buy Together

$5.02-6%Bundled Price:$4.72


1. product characteristics

The network has support for the most popular MP3 format audio playback, audio source that is more abundant;
Mximum support 16M bytes of SPIFLASH. For exampleGD25Q16 [2M bytes, GD25Q32[4M bytes 1Byte=8Bit;
No need to install any other software on PC software anddownload, USB direct connect the computer to copy the content of the speech;
Support 8 independent audio on demand;
Support the standard UART serial port control;
two channel stereo DAC 24bit decoding, ensure the speechinformation fidelity;
With control mode, the board can be directly through the dial switch control,simple and convenient;
A wide range of DC voltage, support 7 ~ 30V input voltage,switching power supply using a step-down, low power consumption;
With 3.5 Headset seat audio output, external speaker;
With the turntable potentiometer to adjust the volume;
Supports 2272 wireless decoding board 6 way play control;
Support 5-24V external level directly trigger;
Designed according to industrial requirements, has strong anti-interference ability.

2. Application

Car navigation safety voice broadcast
Highway transportation has inspection, toll station voice prompt;
Train station, prompting automobile safety inspection voicestation;
Electric power, communication, voice prompt financialbusiness hall;
The vehicle to verify the voice prompt;
The device has switch machine brand publicity, security voice prompt;
Multiple voice alarm or equipment operation guide speech;
Access voice prompt;
Electromechanical equipment fault automatic alarm;
The fire has the voice alarm;
Automatic broadcasting equipment, timing broadcast.

3. BY-F610 multi-channel playback board details

Power input: can connect 7 ~ 30V voltage power supply.
The power output: direct drive loudspeaker (3W/4Ω, 2W/8Ω), enough to drive any small sound box, and a loud voice.
Audio output: dual channel audio signal output, can be connected with 3.5 output Headset seat.
The control line terminal: connect the control key, with 8 lines of direct control 8 road separate audio playback.
A working state indicator light: working state indicator, flashstreaming or download audio file.
Volume control: volume control, rotary potentiometers for regulating sound volume.
USB socket: USB line connected to the computer to display audiodownload window, click enter to download and update the speech.
UART interface: standard serial port, 3.3VTTL level, 9600 baud rate (used in serial function can obtain information from the company)
Multicast code switching: playback mode selection, refer to tablesettings
(kind of hit "ON" on behalf of 0, hit "1" or "2" on behalf of 1,following A, B, C corresponding multicast code switch 1,2,3; such as 0,0,0 model. In the diagram)

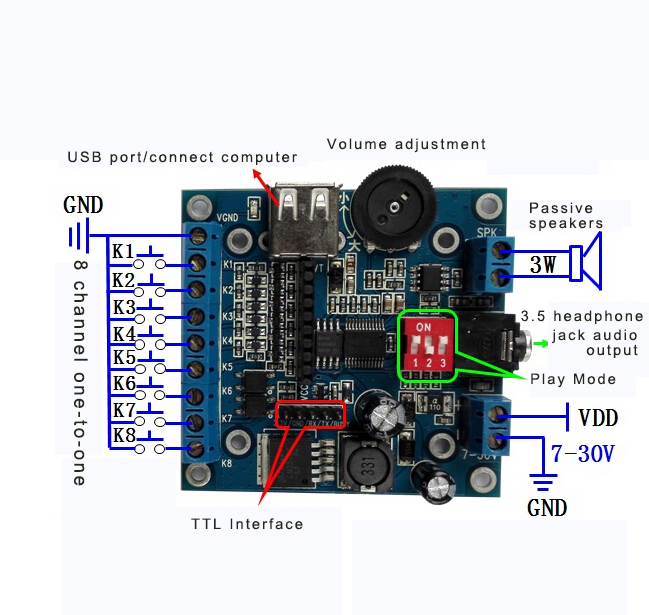

4: 8 Channel Connection Diagram:
