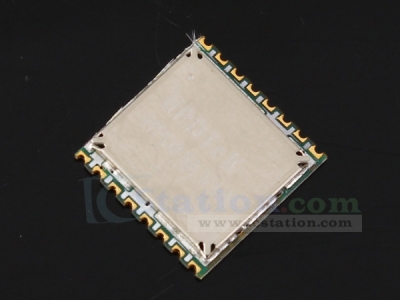

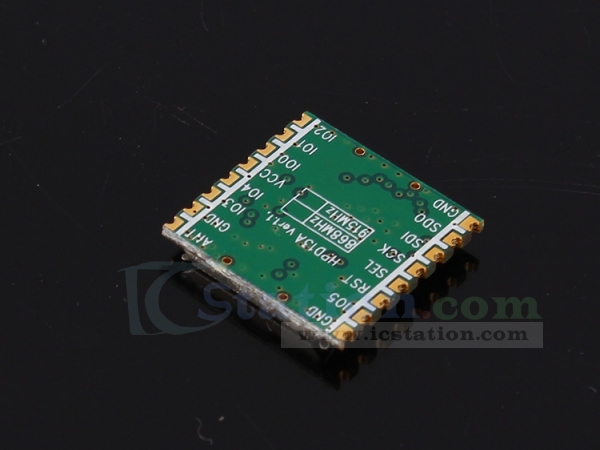

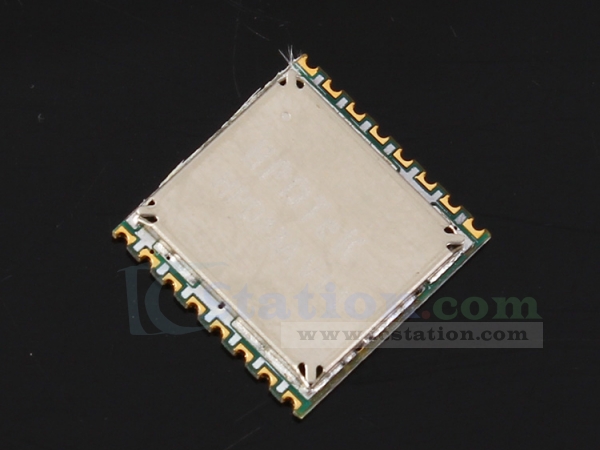

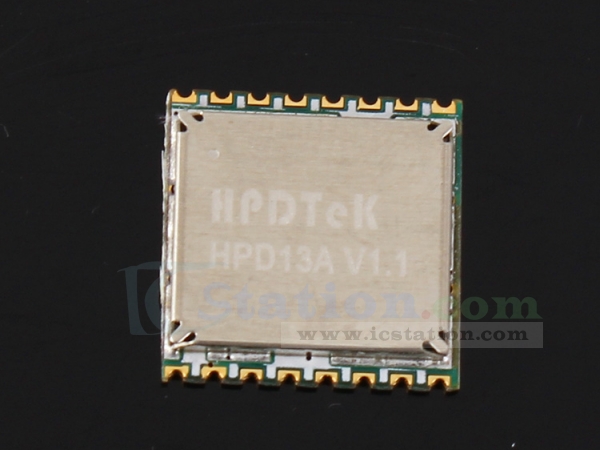

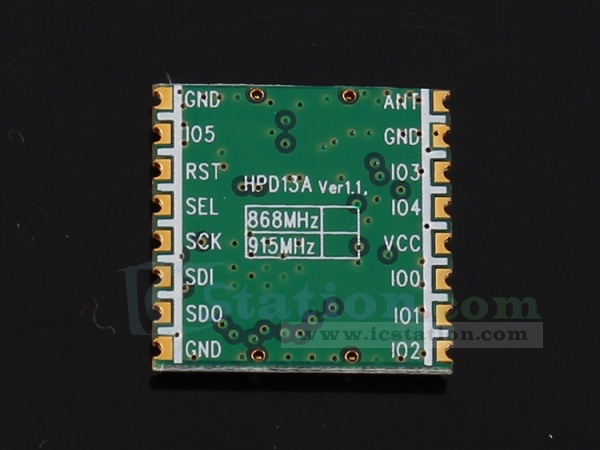

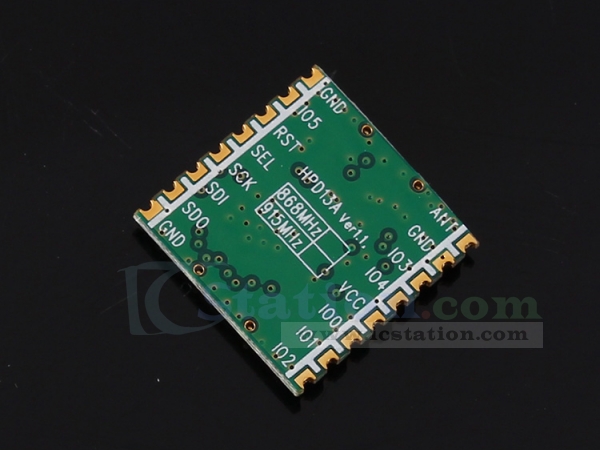

HPD13A 868MHz Wireless Transceiver Module LoRa-TM FSK for Remote/Model Aircraft

7450
5 9
$8.59 $6.44
Quantity50+
Price$5.20
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Please noted: This item has been updated to a new version since April, 2019. The main difference is the hole design. Hope for your understanding.

Description:
  The HPD13A transceivers feature the LoRaTM long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.
Using Hope RF's patented LoRaTM modulation technique can achieve a sensitivity of over -148dBm using a low cost crystal and bill of materials.

  The high sensitivity combined with the integrated +20 dBm power amplifier  yields  industry  leading  link  budget  making  it optimal for any application requiring range or robustness. LoRaTM also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption.

  These devices also support high performance (G)FSK modes for systems including WMBus, IEEE802.15.4g. The HPD13A deliver exceptional phase noise, selectivity, receiver linearity and IIP3 for significantly lower current consumption than competing devices.

Key Product Features:
1. LoRaTM Modem.
2. 168 dB maximum link budget.
3. +20 dBm - 100 mW constant RF output vs. V supply.
4. +14 dBm high efficiency PA.
5. Programmable bit rate up to 300 kbps.
6. High sensitivity: down to -148 dBm.
7. Bullet-proof front end: IIP3 = -12.5 dBm.
8. Excellent blocking immunity.
9. Low RX current of 10.3 mA, 200 nA register retention.
10. Fully integrated synthesizer with a resolution of 61 Hz.
11. FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
12. Built-in bit synchronizer for clock recovery.
13. Preamble detection.
14. 127 dB Dynamic Range RSSI.
15. Automatic RF Sense and CAD with ultra-fast AFC.
16. Packet engine up to 256 bytes with CRC.
17. Built-in temperature sensor and low battery indicator.

Applications:
1. Automated Meter Reading.
2. Home and Building Automation.
3. Wireless Alarm and Security Systems.
4. Industrial Monitoring and Control
5. Long range Irrigation Systems
