ZVS Induction Heating Driver Board High Voltage Generator Circuit PCB DC 12-30V 30-50KHz

12419
5 9
$9.45 $7.37
Time Remaining:
- OR - Add to Wish List

Cheaper Buy Together

$15.16-8%Bundled Price:$13.95

Description:
ZVS driver module adopts flyback circuit, and it can be used for driving FBT flyback transformer.
Because it achieves zero voltage switching, it is generally called ZVS. It has high power, emit a little heat and high reliability,
it is widely applied to drive SGTC, Jacob high ladder, Marx generator, induction heating etc.

Parameter:

No. Parameter Value
1 Operating Voltage DC 12-30V
2 Power Requirements When 12V Current >=5A; More 15V,No lower than 10A (the higher of the current is, the higher of the power will be)
3 Operating Frequency 30KHz-50KHz self-adaption
4 Arc Length 1~5cm
5 Output Voltage IN:12V/5A, Out:10000V 60W;
IN:24V/10A,Out:20000V 200W
6 Max Power 180-360W
7 PCB Size 75*70.6mm
8 Work Temperature -25~85℃

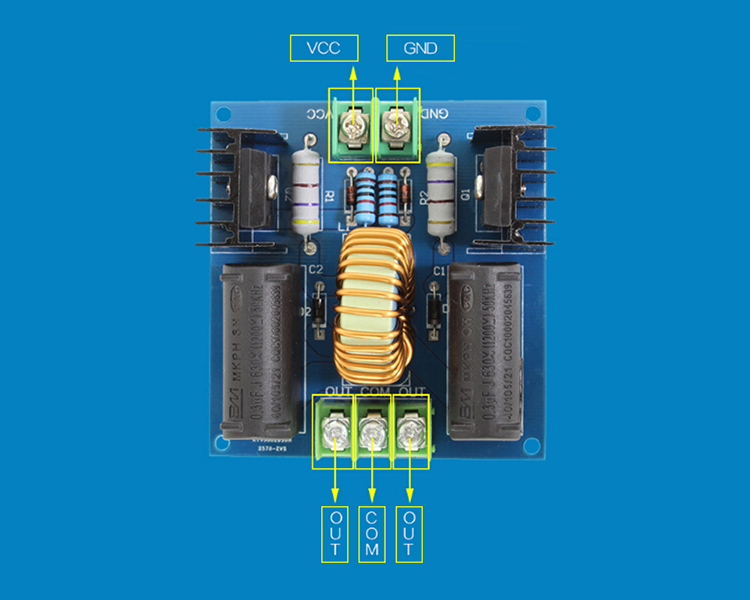

Interface Introduction:
1>.VCC: Voltage positive
2>.GND: Voltage negative
3>.OUT: Output port
4>.COM: Common port

About Flyback Transformer(NOT Included in Listing):
Common transformers of black/white or colorful TV can be used, no matter what the model is. The higher of the power is, the better it will be.
Using ZVS to driving the transformer has let it overload operate, so the damage is normal phenomenon. Please note that it cannot operate for a long time with high power.

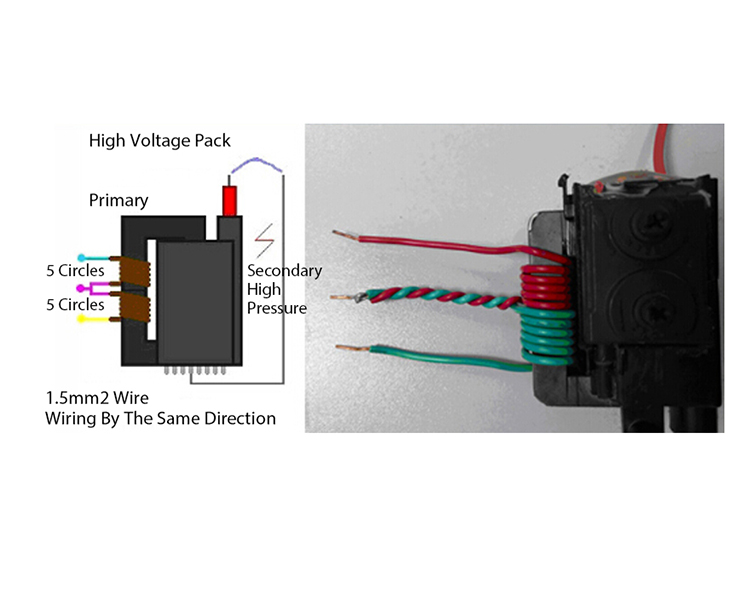

Primary Winding: please use 1.5mm2 wire for 5 circles + 5  circles from the same direction.

About Arc Length:
When input voltage 12V/5A, the arc length will be 1-2cm; the higher of the input voltage, current and output power, the longer of the arc length will be;
when most input 30V/10A, the longest distance will be more than 5cm. If the arc is too short, please check whether the input power is sufficient.

About Power:
Circuit output power depends on your input power, please make sure that the input power is enough. Power=voltage*current.

Note:
Driving the flyback transformer is high voltage output, please pay attention to your safety.

Application:
1>. SGTC
2>. SJacob ladder
3>. SMarx generator
