TAI-01 5V Infrared Audio Transceiver DIY Kit IR Sound Voice Transmitter Receiver Infrared Transmission Module

5 1
$6.35 $4.45 (only 0 pcs )
Contact us for wholesale price
Time Remaining:

Sold out

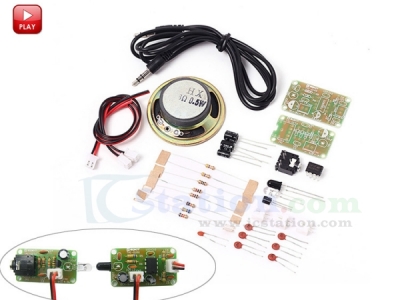

This is a DIY Infrared Reversing Indicator kit parts. You should solder it by yourself.Transmitting audio signals through infrared signals.

1>.High sensitivity;
2>.Low power;
3>.Wide operating voltage range;
4>.Low power consumption;
5>.DIY design;


No. Parameter Value
1 Model TAI-01
2 Transmitter Operating Current Less than 15mA
3 Soldering Difficulty Level Easy
4 Working Voltage DC 4V-9V(Recommend 5V)
5 Output Power 2W(max) 8ohm
6 Communication Distance 50cm
7 Transmitter PCB Size 36.5*20mm
8 Receiver PCB Size 39.5*23mm

Working Principle:
1>.Transmitter: The audio signal is loaded into the infrared light-emitting diode through triode modulation, so that the light emitted by the infrared light contains an audio signal.;
2>.Receiver: The infrared receiving diode converts the infrared light containing the audio signal into a weak electric signal, and the audio signal is amplified by the audio amplifier to push the horn to restore the sound.

Step 1: Complete the installation in the normal way following installation manual and schematic.(Please request separately).
Step 2:Connect 2W 8ohm speaker(It does not include in package!) and input audio;
Step 3:Connect DC 4-9V voltage.
Step 4:Test and use.

Using Attention:
1>. Please make sure all components in right direction and right place.
2>. Please check whether pseudo/float welding.This is very important .
3>. The soldering iron can't touch the components for a long time, otherwise the components will be damaged because of the high temperature.
4>. It is recommended to use a stable power supply, otherwise it may interfere with the audio signal output.
5>. It uses the infrared principle, so it can't be used in the sun or in high temperature environment, otherwise it will easily interfere with signal communication.

Component List:

NO. Component Name PCB Marker Parameter Quantity
1 Metal Film Resistor R7-R8 4.7K 2
2 Metal Film Resistor R4 100ohm 1
3 Metal Film Resistor R1-R2 1K 2
4 Metal Film Resistor R6 10K 1
5 Metal Film Resistor R3 62K 1
6 Metal Film Resistor R5 680K 1
7 Ceramic Capacitor C10 0.01uf 103 1
8 Ceramic Capacitor C1-C6 0.1uf 104 6
9 Electrolytic Capacitor C9 10uF 1
10 Electrolytic Capacitor C7-C8 220uF 2
11 Infrared Emitter IR1 5mm 1
12 Infrared Receiver IR2 5mm 1
13 Triode Q1 S9014 1
14 TDA2822 U1 DIP-8 1
15 2P Socket CN1,CN2,SPK1 2.54mm 3
16 2P Connector Cable CN1,CN2,SPK1 15cm 3
17 Audio Socket JK1 5P 1
18 Audio Cable JK1 100cm 1
19 PCB TA1-01TX 36.5*20mm 1
20 PCB TAI-01RX 39.5*23mm 1

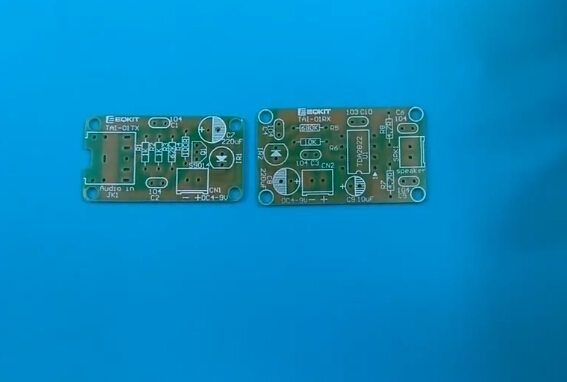

Note: You can finish installation by PCB silk screen and component listing.

1>.Electronic teaching
2>.Exercise welding skills
3>.Circuit application
4>.Wireless audio communication
5>.Micro speaker

Frequency asked questions:
1>.Why can't work?
Q :Please make sure all components in right direction and right place and check whether pseudo/float welding.This is very important.

Install tools you need preliminary preparation by yourself:
1>. Soldering iron;
2>. Multimeter;
3>. Solder wire;
4>. Iron stand;
5>. Diagonal cutting pliers;
6>. The screwdriver;
7>. Tweezers;
8>. Long nose pliers;
9>. Suction tin;
10>. Cleaning sponge;
11>. Screwdriver set.


Download installation manual and schematic:

Finished Product Picture:



I. Tested by ICStation's Outstanding Partner The Unwanted Guy:

Learn More Details in the Video:
(The language in the video is English)


II. Tested by ICStation's Outstanding Partner bzoli5706:

You could hear some awesome music from the video:

If you put the tweezers between the modules, the music will stop.

Learn More Details in the Video:
(The language in the video is English)



Rating: [5] 5 of 5 Stars! Date Added: 2019-07-30 08:23:24
I'm confused on what this truly does.
