DIY Kits Magnetic Levitation Module Maglev Levitating Floating Holder Display Desk Decoration Teaching Demo with Black Shell

13239
5 9
$46.99 $35.24 (only 0 pcs )

Sold out


More detailed installation manual, please contact us!!

Description:
Magnetic Levitation Display Stand Application Maglev Technology Principle.A new type of display stand that suspends the products to be displayed in the air, the appearance is more beautiful than the traditional display frame, and it is easier to attract the attention of customers and increase the publicity effect of the products

Features:
1>.High total carrying capacity.
2>.Low power consumption.
3>.Colorful indicator.
4>.High quality acrylic shell.
5>.Custom assembly.
6>.Automatic adjustment of operating current.
7>.Automatic shutdown without load.

Parameters:
1>.Name:Magnetic suspension
2>.Model:MS-500G
3>.Stand by current:=<35mA
4>.Working voltage:DC12V
5>.Working current:=<200mA automatic adjustment
6>.X,Y axis adjustment:Manual adjustment
7>.Indicators of power supply:5mm colorful LED
8>.Suspension load bearing:=<500g
9>.Set size:131*131*28mm
10>.PCB size:120*120mm
11>.Soldering difficulty:General

Application:
1>.Desktop decoration.
2>.Suspended potted plants.
3>.Counter display: Glasses, Mobile phones, Diamond rings, Necklaces, Watches, Earrings.

Component Listing:

NO. Component Name PCB Marker Parameter QTY
1 Metal Film Resistor R11,R37,R38 200R 3
2 Metal Film Resistor R13,R20-R22,R28-R30,R41,R42 1K 9
3 Metal Film Resistor R3,R9 1.2K 2
4 Metal Film Resistor R1,R7 2K 2
5 Metal Film Resistor R4,R10 3.3K 2
6 Metal Film Resistor R23,R24,R31-R36,R39,R40 5.1K 10
7 Metal Film Resistor R18,R19,R26,R27 10K 4
8 Metal Film Resistor R2,R8 15K 2
9 Metal Film Resistor R17,R25 330K 2
10 Metal Film Resistor R5,R6,R12,R14,R16 1M 5
11 Ceramic Capacitors C7,C8,C9,C10 222P 4
12 Electrolytic capacitor C1,C2,C11,C12,C13,C15,C16 10uF 7
13 Electrolytic capacitor C3-C6 220uF 4
14 Inductor Coil L1-L4 D18*H12mm 4
15 Diode D1,D2 1N4148 2
16 LED LED1 5mm RGB 1
17 Triode 2SD882 Q3,Q5,Q11,Q13 TO-126 4
18 Triode 2SB772 Q4,Q6,Q12,Q14 TO-126 4
19 Triode S8050 Q2,Q8,Q10,Q16 TO-92 4
20 Triode S8550 Q1,Q7,Q9,Q15 TO-92 4
21 Potentiometer VR1,VR2 100K 2
22 LM324 U2,U3 DIP-14 2
23 CD4066 U1 DIP-14 1
24 IC Socket U1,U2,U3 DIP-14 3
25 DC Socket J1 5.5*2.1mm 1
26 Hall Sensor H1,H2,H3 G 3
27 Ring magnet —— 100mm*10mm 1
28 PCB 500G-CNX —— 12.1*13.4*1.2mm 1
29 PCB 500G-CNY —— 13.4*12.1*1.2mm 1
30 PCB 500G-MAIN —— 121.5*121.5*1.2mm 1
31 Conductive iron —— 21*6*1mm 4
32 Round magnet —— 50*14mm 1
33 Screw —— M3*8 12
34 Nut —— M3 8
35 Plastic Shell —— Black 131*131*2.6mm 2
36 Plastic Shell —— Black 131*24*2.6mm 4
37 Plastic Spacer —— M3*4 4
38 Plastic Spacer —— M3*13 4
39 Screw —— M3*12 4
40 Screw —— M3*8 4
41 Power Adapter US regulations plug AC100V-240V to 12V 1A 1

Note:More detailed installation manual, please contact us!!!We send PDF documents to you.

Note:
1>.Please make sure all components in right dirction and right place.
2>.Please check whether pseudo welding.
3>.The soldering iron cannot contact the components for a long time, otherwise it is easy to damage the components due to high temperature.

Frequency asked questions:
1>.Why didn't send a instruction?
A :We have a instruction.But we can only send to your email and cannot be sent with item.
2>.Need to prepare power separately?
A :No,it includes a US regulations Power Adapter.
3>.Is it already installed??
A :No,it is kits.Need the user to assemble.

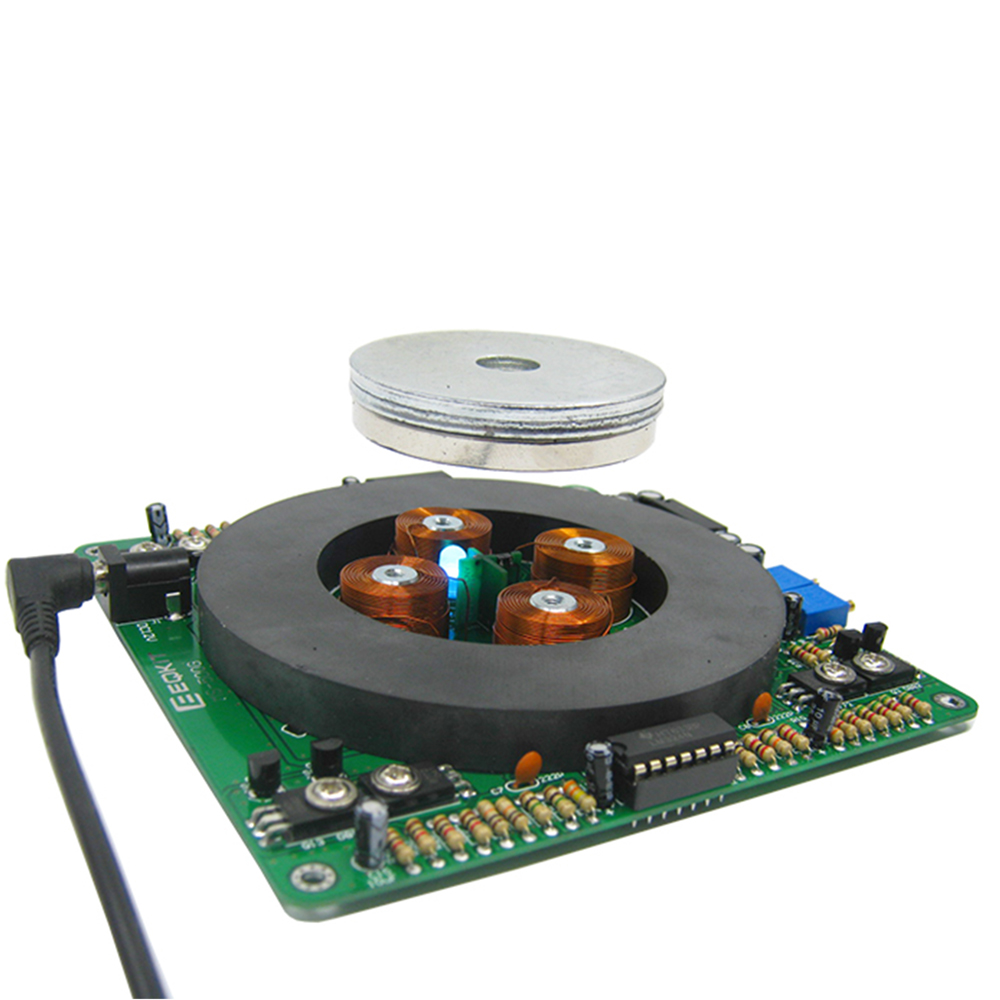

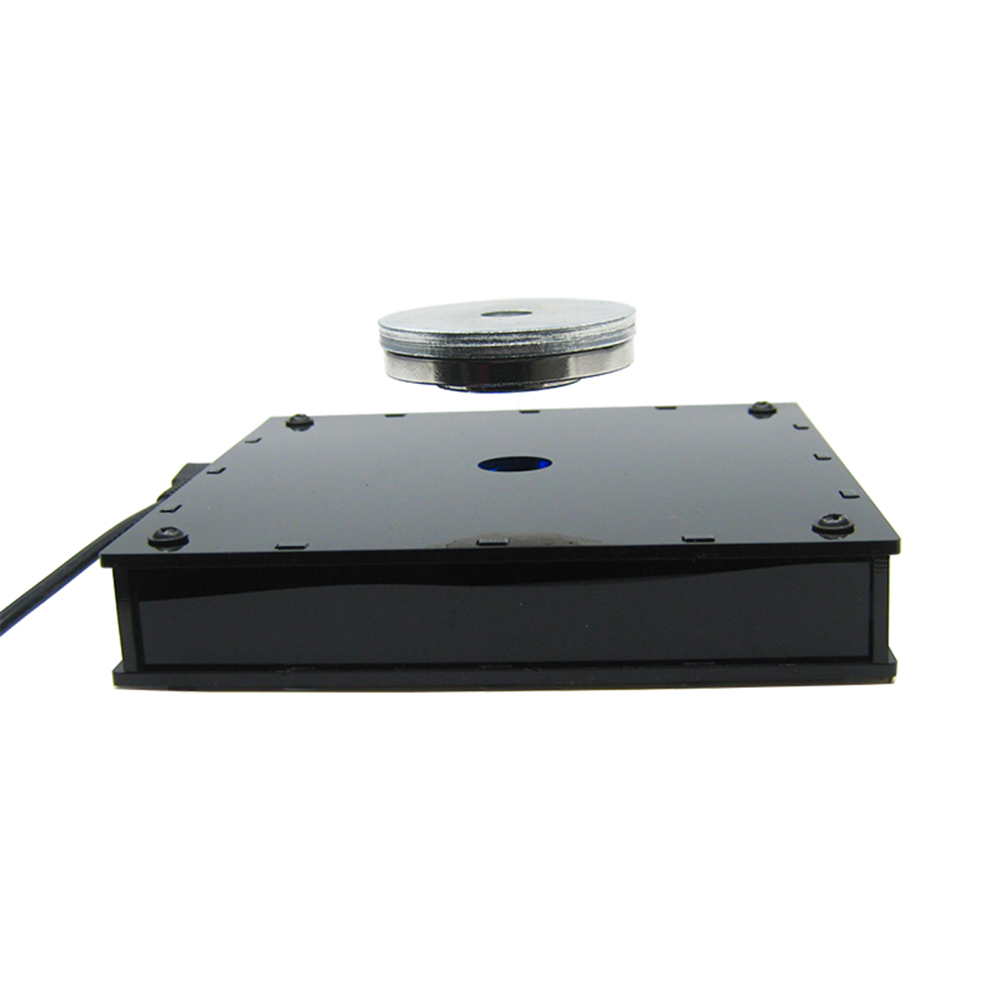

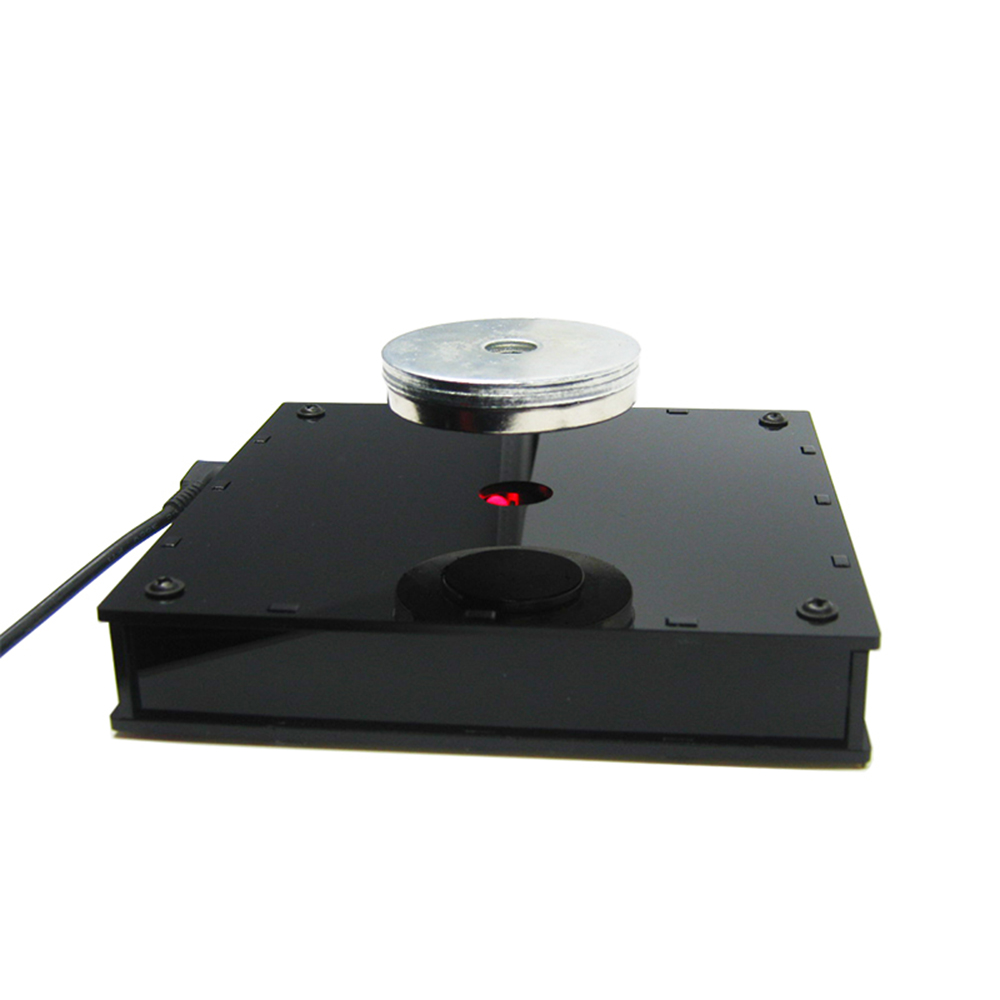

Finished Product:
