LM3914 Blue LED Bar Display Module 10 Segments Battery Power Indicator Battery Capacity Indicating Tester DIY Kits

5 9
$4.55 $3.69
Time Remaining:
- OR - Add to Wish List

Product Introduction:
1.Power Consumption:all lamps on 42mA;single lamp on 4mA
2.Measurement Range:universal 2.4-20V batteries
3.Color: Blue
4.Display Way:multi-lamp bar display or single lamp dot display
5.PCB Size:45*14mm
6.Adaptive for lithium batteries,lead acid batteries and other batteries which need
 display electricitiy quantity.
7.Power display adjustable;support single lithium battery 1S-4S (4.2V-16.8V);
 lead acid battery 6-12V;Ni-MH 3.6-18V;nickel-cadmuum battery 3.6-18V.
8.Display Way Introduction:display battery upper/lower limit voltage,and it can be
  divided into 10 gears;every lamp on represents display 10%;10 lamps on represents
  display 0-100%;and it can be also changed into single lamp display,that means only
  one lamp is on.

Lithium Battery:
After single lithium battery discharges,its voltage is 3V,when fully charged,it is 4.2 V
1S-->3V (the first lamp) to 4.2V (the tenth lamp)
2S-->6V (the first lamp) to 8.4V (the tenth lamp)
3S-->9V (the first lamp) to 12.6V (the tenth lamp)
4S-->12V (the first lamp) to 16.8V (the tenth lamp)
other parallel voltage so on

Lead Acid Battery:
Lead acid battery usually is 6V or 12V battery
6V-->4.8V (the first lamp) to 6.75V (the tenth lamp)
12V-->9.6V (the first lamp) to 13.5V (the tenth lamp)

Adjustment Way:
Necessary Equipment:adjustable stabilivolt power;screwdriver
Take single lithium battery 3.7V as example,3V is undervoltage low port;4.2V is full power high port
1.Adjust adjustable power to voltage high port 4.2V,then connect with this board;and there may be
  2 results:not on or all on or several on;then adjust 503 potentiometer slowly until LED is all on;
  if it is not on or several on,please counter clockwise adjust;if all on,please clockwise adjust.
2.Adjust adjustable power to voltage low port 3V,then adjust 502 potentiometer until there is a lED on;
  if it is no on,please adjust it clockwise;if there is all on or several on,please adjust it counter clockwise.

If there is no high-precise adjustable power,then charge the battery to full power that is high port voltage;
when the battery discharges completely that is low port voltage;connect with the board and adjust.

1.Please operate according to above instructions;first adjust high port then adjust low port.
2.Red wire connects with positive,black wire connects with negative.Please don't connect it reversely;
  the maximum limit voltage is 20V,please use anti-static bonding pad.

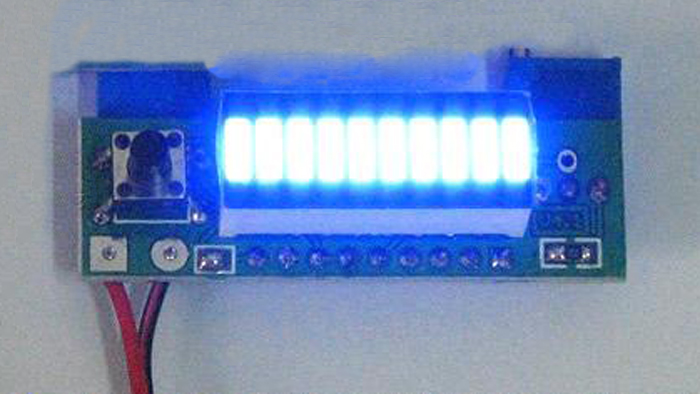

Finished Product Picture:
