MAX7219 Green LED Display Module 8x8 8*8 Dot Matrix Module with Dupont Wire for Arduino

5 9
$5.65 $3.96 (only 2 pcs )
Time Remaining:
- OR - Add to Wish List

Cheaper Buy Together

$6.23-6%Bundled Price:$5.86
The LED dot matrix module is close to PCB, and the visual effect is improved. Its dot matrix and PCB board also use the plug in and off and detachable way. The row mother selects the high quality round hole row mother. Multiple plugging can also be reliably connected. The luminescence is uniform and the visual effect is good. The module is driven by a Max 7219 chip. It supports multiple modules cascading, and permutation forms can be defined, such as 8*32, or 16*32 and so on.
No. Parameter Value
1 Working voltage 4.5-5.5V
2 Input voltage 4.5-5.5V
3 Drive chip MAX7129EWG
4 Chip level Industrial grade
5 Dot matrix specification F3.75
6 Working temperature -40 Celsius to 85 Celsius
7 Dot matrix color Green
8 Cascade multiple Yes
9 Driver 51 MCU and Arduino
10 Module size About 38mm*38mm*12mm
1>. Improve the defect of the same kind of module
2>. Selected brand high quality dot matrix
3>. Easy to realize rolling effect
4>. Provides a function to accurately control any point of a dot matrix screen
Wiring Description:
1>. Pin description:
No. Pin Function Remark
1 VCC 5V positive electrode input
2 GND 5V negative electrode
3 #CS Chip Select 51 program is default to connect to P1.0, and the Arduino routine is connected to pin13.
4 SCK Clock signal 51 program is default to connect to P1.0, and the Arduino routine is connected to pin13.
5 DIN Data input signal 51 program is default to connect to P1.0, and the Arduino routine is connected to pin13.
6 OUT Data output signal DIN connected to the next module when the cascade is cascaded.

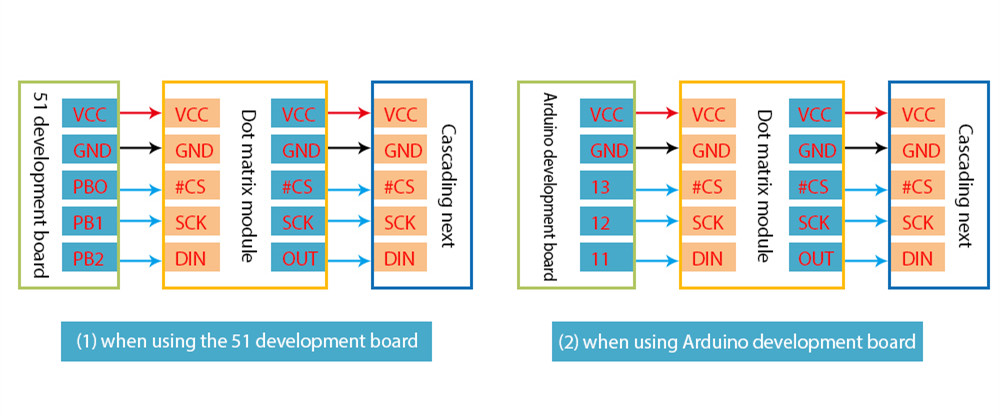

2>. Wiring instructions:

Package List:

No. Items Qty Unit Remark
1 8*8 dot matrix module 1 Piece Without soldering
2 Straight pin 1*10 P
3 Curved pin 1*10 P
4 DuPont line length 5 P

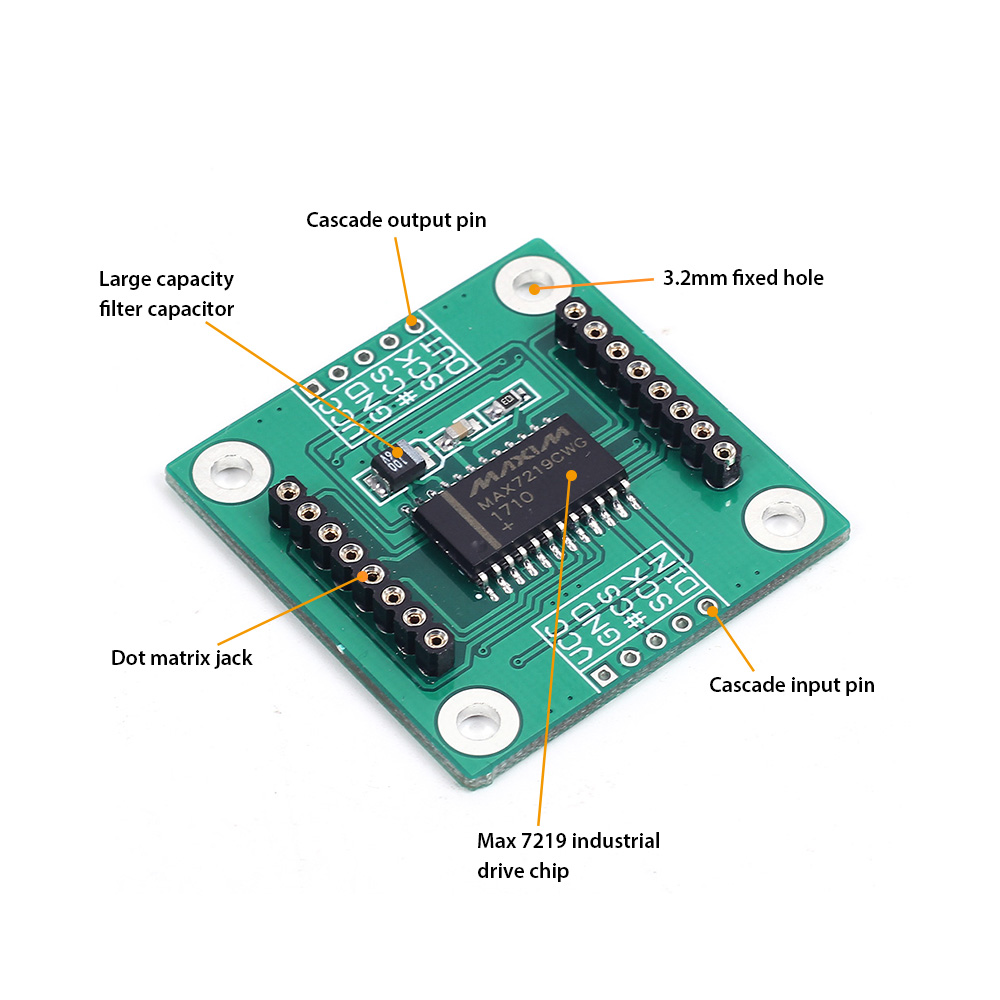

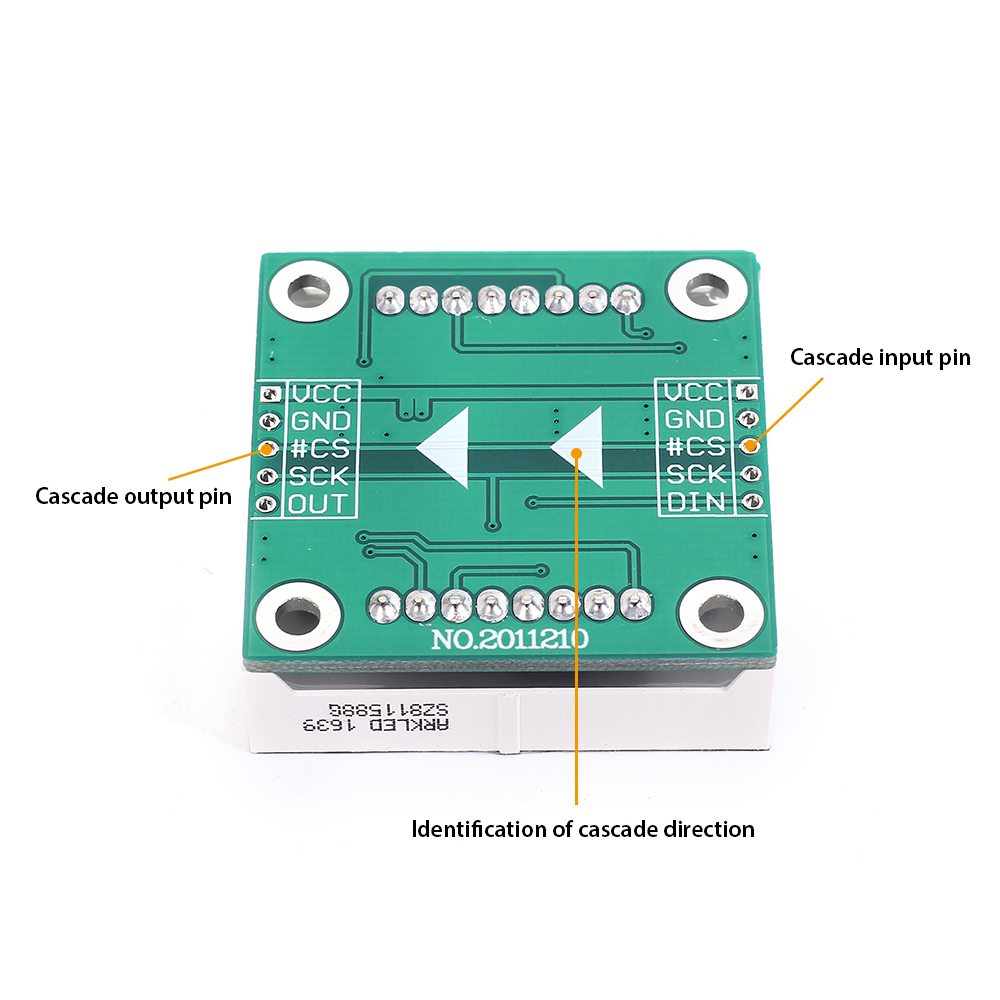

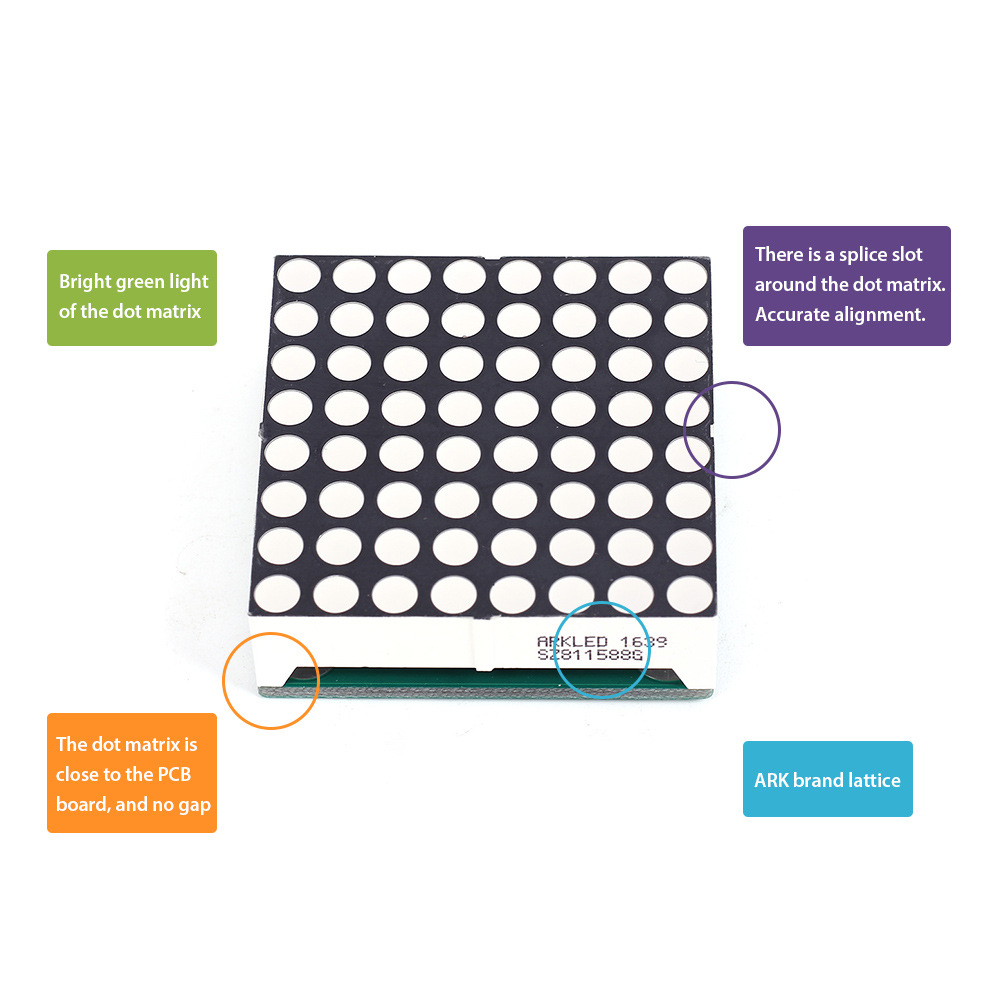

Module Details:
