Multivibrator Oscillating Flashing Lights LEDs DIY Kit Funny Flash Circuit

5 9
$1.49 $1.22
Time Remaining:
- OR - Add to Wish List

Operating Principle:
Once power on, the two triodes will compete to connect. Due to the difference of components, only one triode can be connected first.
If VT1 is connected first, then VT1 collector voltage will decrease, LED1 will be on, the left port of capacitor C2 will close to zero voltage.
Because the two ports voltage of capacitor cannot change suddenly, VT2 collector will close to zero voltage too, then VT2 will be cut off and LED2 will be off.
With the C2 charging by power via resistor R3, the triode Q2 collector voltage will gradually increase.
When the voltage is higher than 0.6V, then VT2 will entering into connection status form cut-off status, collector voltage will decrease, LED2 will be on.
In the meantime, with the decreasing of triode VT2 collector voltage, the triode VT1 collector voltage will fall under the effect of capacitor C2;
VT1 will be cut-off from connection, LED1 will be off. And so on, the two triodes will be connected and cut-off alternatively, the two LEDs will cycle flashing.
Changing the resistance of R2, R3 or the capacitance can change the LED flashing speed.

Notice: this suite offers 2pcs 2.54mm single pin as power connection terminal. Users can use dupont wire to connect power as picture shows.

1>. Operating Voltage: DC 2-15V
2>. Operating temperature:-20~85℃

Installation Steps:
Step 1: install resistors, please pay attention to the difference of 4 color ring and 5 color ring

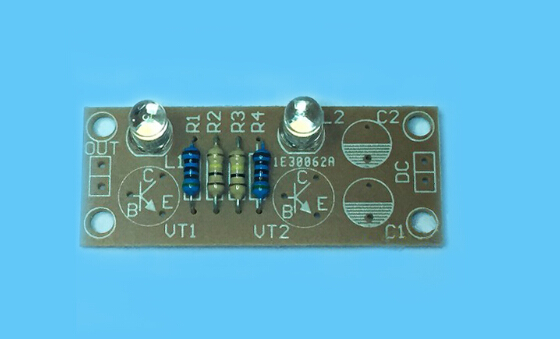

Step 2: install LEDs, please pay attention to positive and negative; after guaranteeing the right installation, then solder the other pin
Step 3: install pin
Step 4: install triodes, please take notice of corresponding plug-in units of every pin

Component Listing:

NO. Components PCB Marker Parameter QTY
1 S9014 VT1,VT2 TO-92 2
2 Metal Film Resistor R1,R4 510ohm 2
3 Metal Film Resistor R2,R3 100K 2
4 Electrolytic Capacitor C1,C2 10uF 2
5 LED LED1,LED2 5mm Red 2
6 Male Pin DC,OUT 2P 2
7 PCB     1

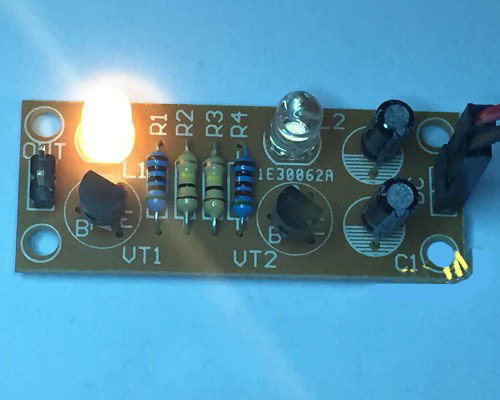

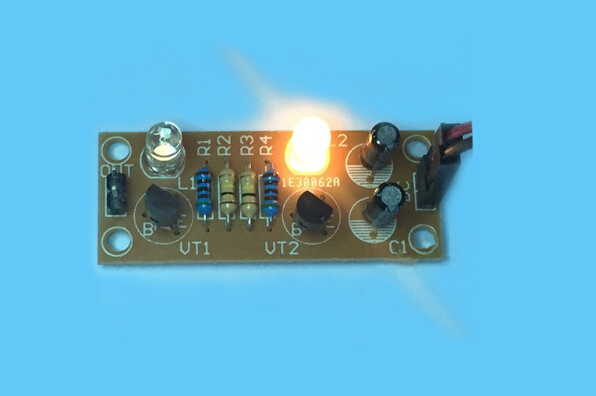

Finished Product Picture:
