FS-VMP-27 Recordable Module Voice Sound Play Module 7-24V 10-25mA with Shell

11977
5 9
$11.92 $9.30
Time Remaining:
- OR - Add to Wish List

Product Introduction:
1.Power Voltage:7-24V
2.Power Quiescent Current:10-25mA (standard 15mA)
3.Starting Time:200ms
4.Play Delay Time:260ms
5.Storage Temperature:-65~150 celsius
6.Operating Temperature:-45~85 celsius
7.Withstand ESD Voltage:2000V
8.Logic Control Port High Level:3.3V
9.Logic Control Port Low Level:0.4V
10.Optocoupler Voltage:3-12V
11.Operating Power:30W
12.MP3 Decode Rate:32-300Kbps

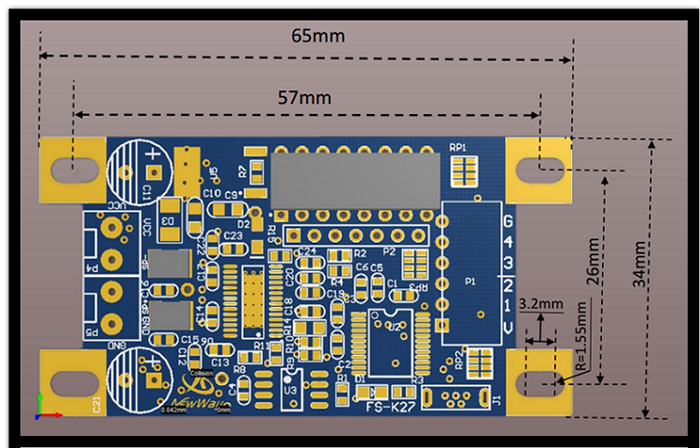

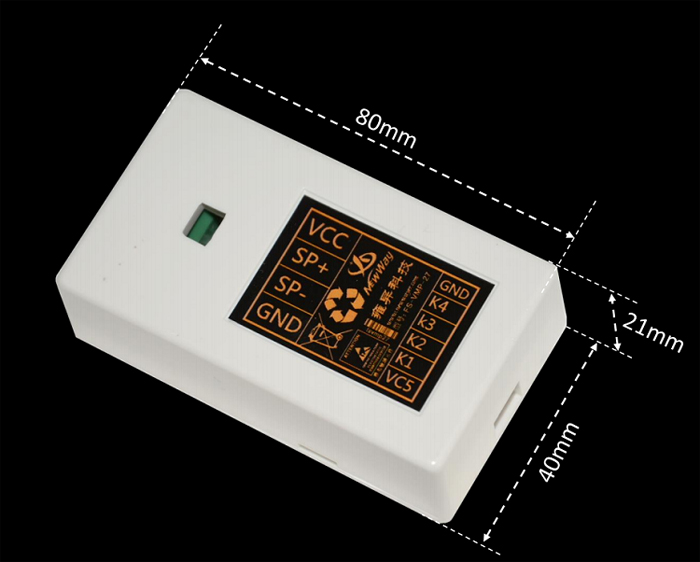

13.Specification:80*40*21mm



Features:
1.Adopt optocoupler isolation input,and it has strong anti-interference capacity
2.Onboard 30W high power amplifier
3.Adopt USB interface to download voice;you can easily download voice or change
  the configurations by a micro USB wire.
4.Support 32-300Kbps bit rate 11172-3 and ISO13813-3layer3 audio decode,and
  sampling rate supports 8/11.025/12/16/22.05/24/32/44.1/48KHz;it can nearly
  play all MP3 and WAV document.
5.Voice trigger way is alternative,and it can trigger 4 phases voice by 4 keys.
6.Trigger level is alternative,and so is the pplay way.upper computer software
  can set high (low) level trigger,pulse trigger;and it can choose loop play or play for once.
7.Can configure standard MP3 mode,it can control PLAY,STOP,PREV,NEXT by giving
  corresponding pin signals.
8.30-level digital volume adjustment,and connecting USB wire with random computer
  or smart phones can adjust the volume.
9.Adopt intelligent power control arithmetic,and it can balance the awaking
  speed and standby power;standby typical current is 10mA.
10.Noise suppression design.
11.7-24V DC voltage power supply,it is compatible with most systems.
12.EMI design.and it can pass FCC B-level test.

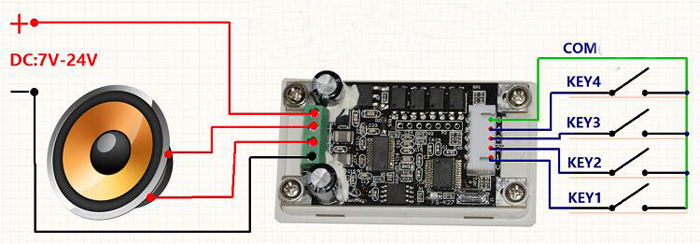

Key Mode Connection Picture:


1.Short circuit connect KEY2-KEY4 with COM port,it can play corresponding voice.
2.Power supply voltage 7-24V,the maximum output power is 30W.
3.There is no difference between positive and negative of the loudspeaker.

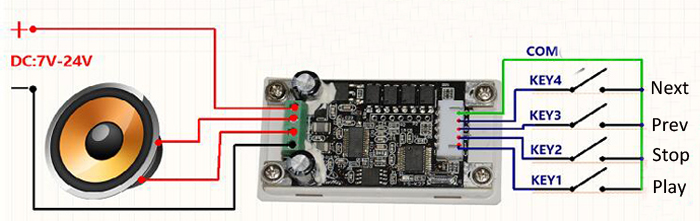

MP3 Mode Connection Picture:



1.Short circuit connect KEY2-KEY4 with COM port,it can achieve corresponding functions.
2.Power supply voltage 7-24V,the maximum output power is 30W.
3.There is no difference between positive and negative of the loudspeaker.
