DC 12V 24V Relay Control Module Vehicle Start Detector Battery Discharge Protector

4 1
$6.15 $4.00
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

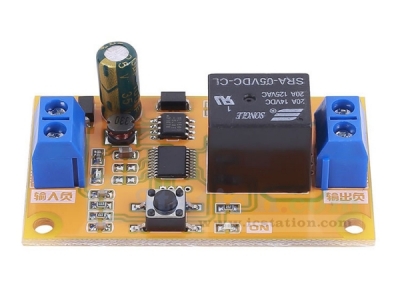

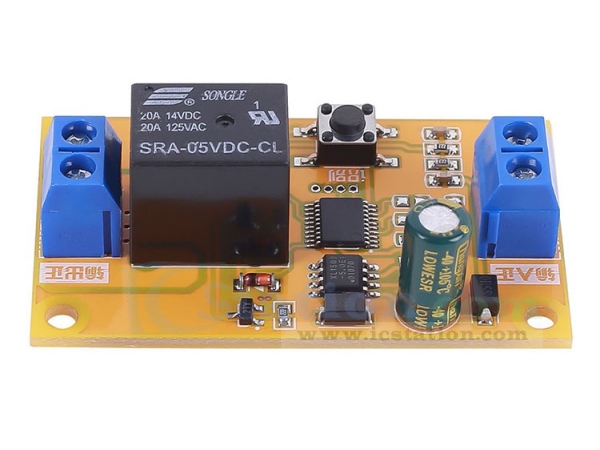

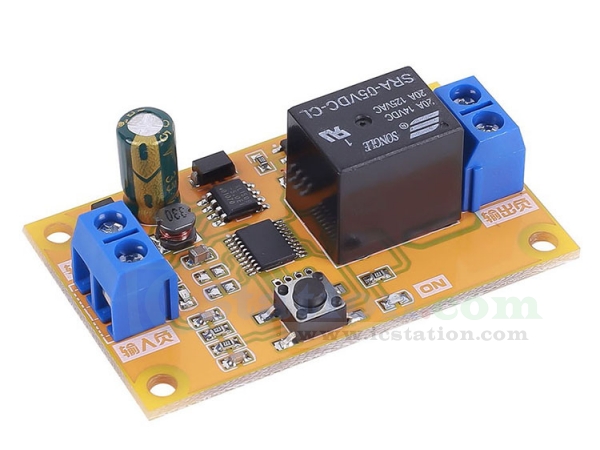

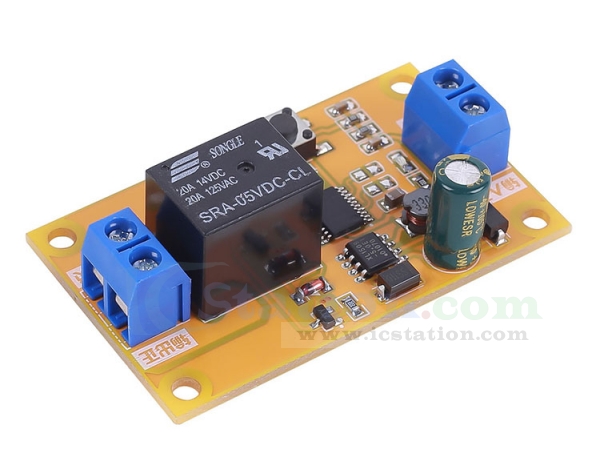

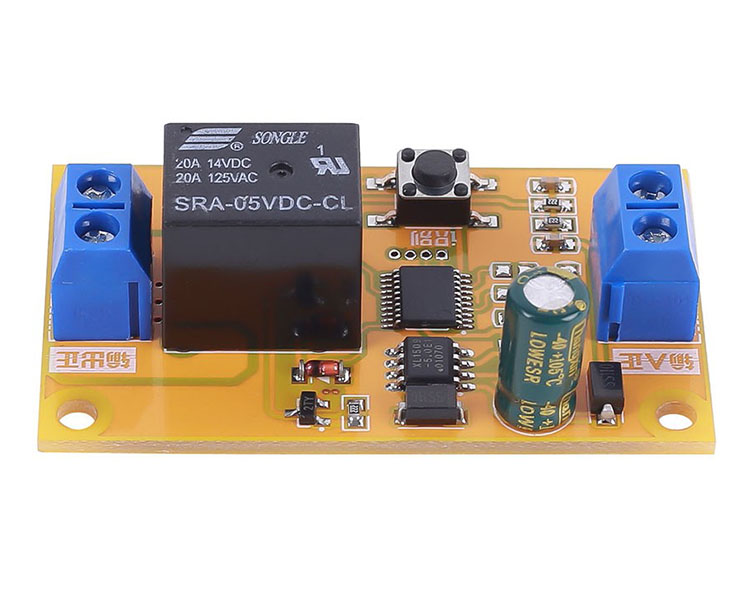

  It is a output relay module.

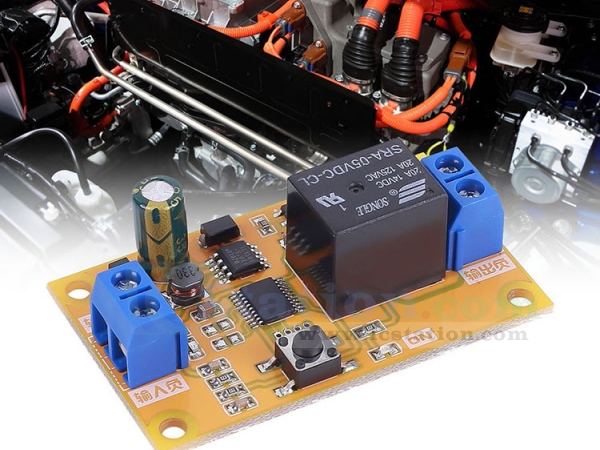

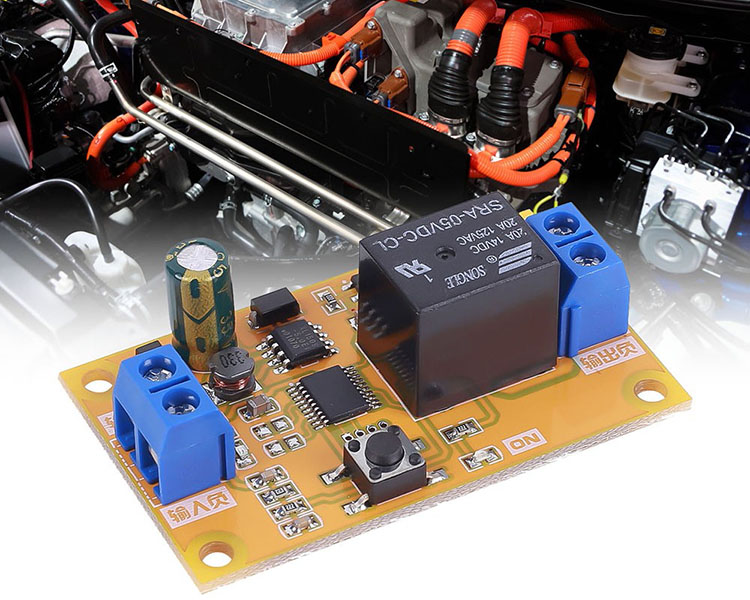

It is used to realize that only after the vehicle is successfully ignited, the output voltage is supplied to the consumer, and the output is automatically turned off after the flame is turned off.

  1.It can automatically identify 12V and 24V cars, usually only need to connect the input and output loads with wires,and it can work normally without adjustment.
  2.It supports manual identification function.

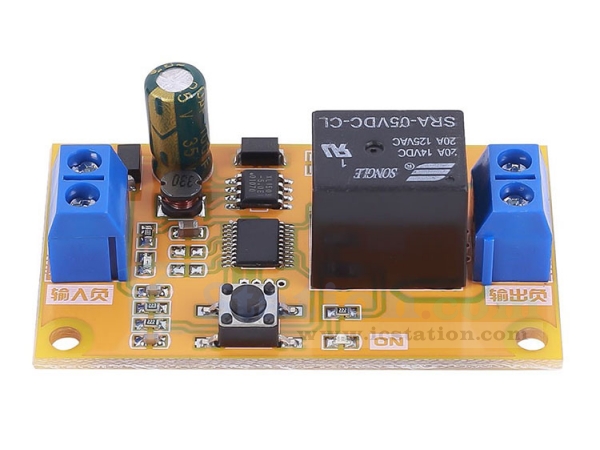

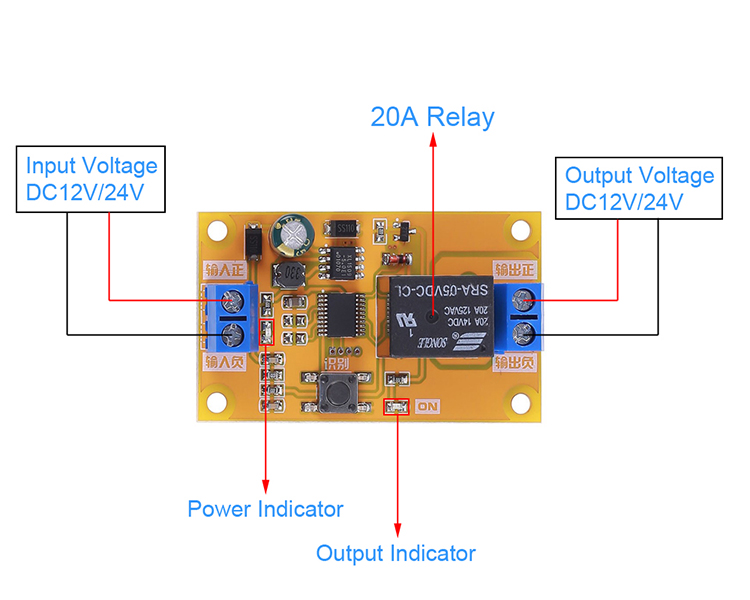

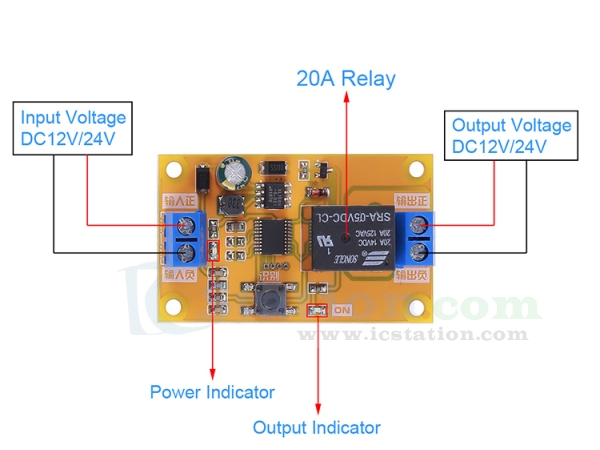

  3.It is equipped with a power indicator and an output indicator,so you can see the working status at a glance.
  4.It uses a high-efficiency voltage regulator circuit,which is safe and stable to use.

  1.Product Name:Output Relay Module
  2.Input Voltage:DC 12V/DC 24V
  3.Output Voltage:DC 12V/DC 24V
  4.Relay:20A Relay
  5.Work Temperature:-25℃~85℃
  6.Work Humidity:5%~95%RH

Identify Voltage Operation Method:
1.First connect the input and output,then turn the car key to the "ON" gear,then press and hold the "identification" button on the board for 3 seconds,the ON indicator flashes 3 times (please let go when the indicator flashes),and finally the indicator light goes out At this time,manual identification has been completed and the settings have been saved.

2.Then start the vehicle test module to see if the ignition has been successfully detected and output voltage.

  1pcs Output Relay Module




Rating: [4] 4 of 5 Stars! Date Added: 2023-02-20 00:48:41

Hi I like to understand two things 1.At what voltage Relay will be ON and at what voltage it turns OFF. Need this for both 12V and 24 V. 2.Voltage tuning how it needs to be performed if i connect 24V battery into the input terminal .The switch has to be pressed 3 Seconds once the battery is ON and then need to be released or need to be released after the LED glows 3 times. With regards, Jeyaseelan
