Home > Power Module > Step Down Module > DC-DC Step Down Module Buck Converter Power Supply Module Voltage Regulator DC 7-28V to DC 5V 3000mA 3A Fixed Output

DC-DC Step Down Module Buck Converter Power Supply Module Voltage Regulator DC 7-28V to DC 5V 3000mA 3A Fixed Output

5 9
$2.39 $1.79
Time Remaining:
- OR - Add to Wish List

Product Introduction:
1.Input Voltage Range:DC 7-28V
2.Output Voltage:fixed DC 5V
3.Output Current:3000mA max
4.Conversion Efficiency:92%
5.Full Load Output Ripple Vpp:<50mV
6.Output Precision:+/-0.1V
7.No Load Current:0.5mA
8.Power Off Current:cannot
9.Heat Dissipation Type:natural cooling
10.Operating Temperature:-40℃~+85℃
11.Storage Temperature:-40℃~+125℃
12.Relative Humidity:20-90%
13.Module Size:16.5*22*4mm
14.PCB:double side
15.Installation Type:SMD or 2.54 pin plug-in

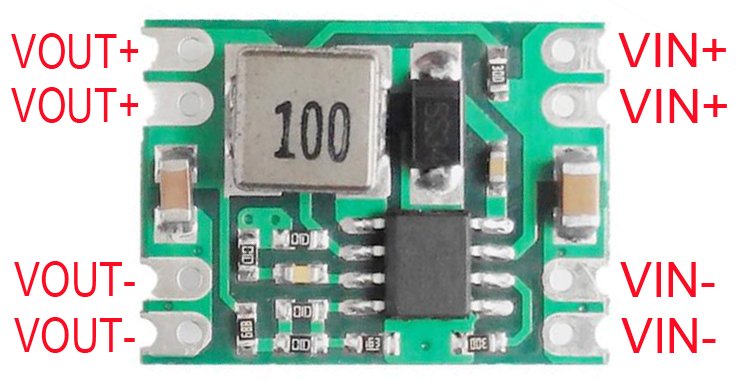

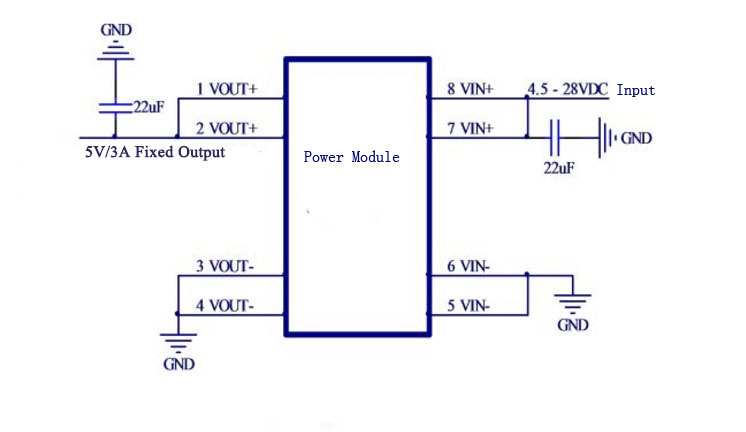

Pin Definition:

1,2:VOUT+:output power positive,fixed 5V output
3,4:VOUT-:output power negative,connect with VIN-
5,6:VIN-:input power negative,connect with VOUT-
7,8:VIN+:input power positive,input range 7-28V(input voltage must be higher than output voltage,input voltage must be more than 5V)

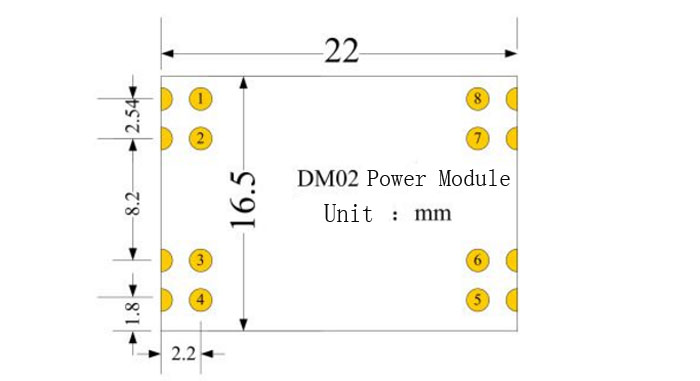

Module Size:
