TB6600 Motor Driver Board 42/57 Stepper Motor Driver Module DC 9V-40V 0.5A-4A 1/2/4/8/16/32 Subdivision

1.Description:

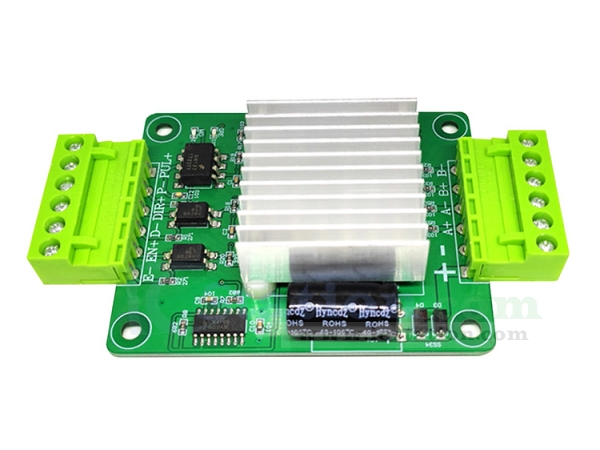

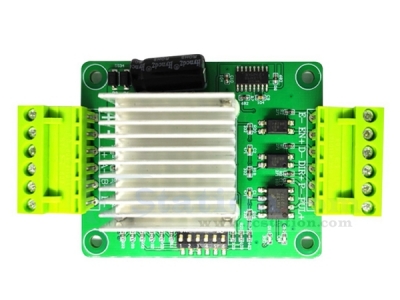

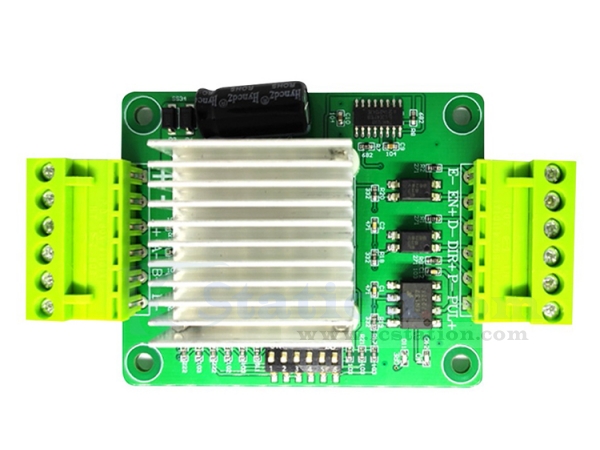

  TB6600 42/57 stepper motor driver.
  It is a professional two-phase hybrid stepping motor driver,which can be adapted to various domestic and foreign brands.
  The current is 4A and below, and the outer diameter of 39,42 and 57mm is four-wire,six-wire and eight-wire two-phase hybrid Stepper motor.
  Suitable for all kinds of small and medium-sized automation equipment and instruments,such as:engraving machine,marking machine,cutting machine,laser phototypesetting,plotter,CNC machine tool,holding device,etc.


2.Feature:

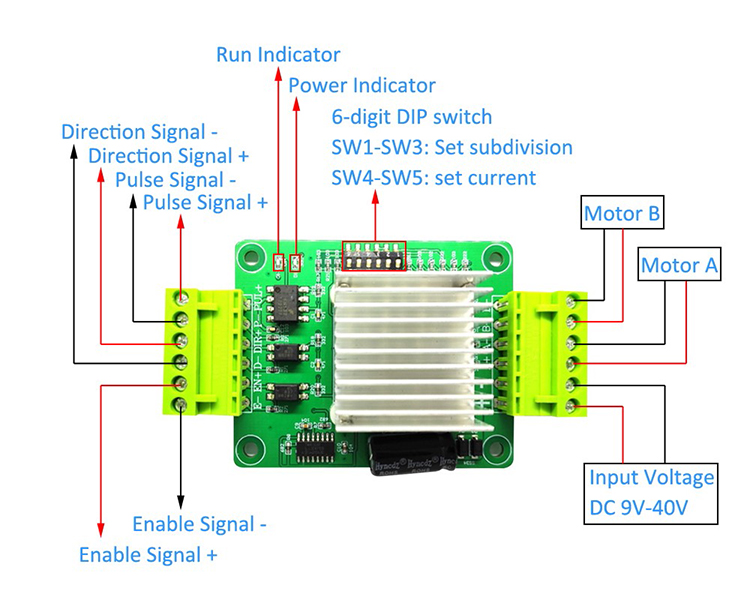

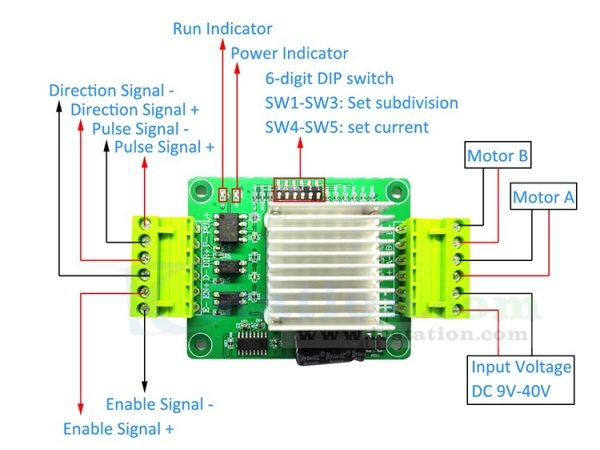

 1).It has a power indicator and a running indicator to show the working status.
 2).The current is automatically halved at rest.
 3).It can drive 4,6,8 line two-phase and four-phase stepper motors,and motors of type 42 and type 57 with 1.8Nm and below.
 4).The optocoupler isolates the signal input and has strong anti-interference ability.
 5).With overheating,overcurrent,undervoltage lockout,input voltage anti-reverse protection,etc.
 6).Small size,easy to install.

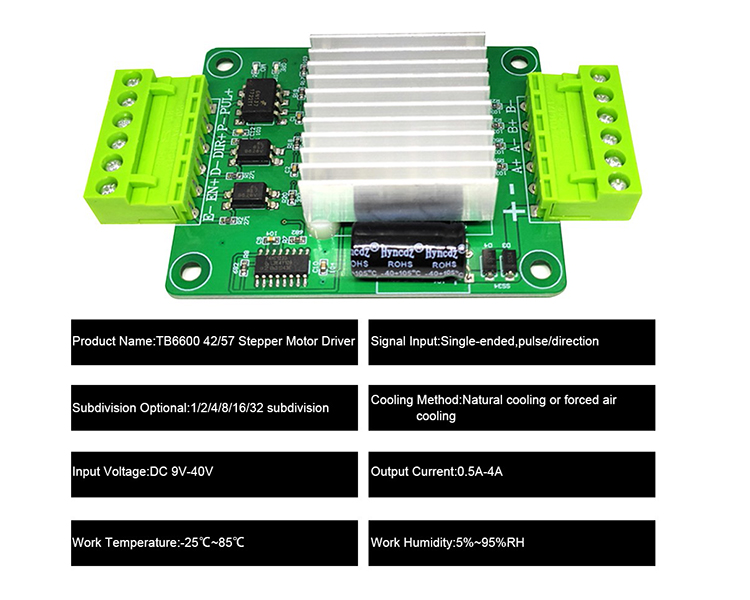

3.Parameter:
 1).Product Name:TB6600 42/57 Stepper Motor Driver
 2).Signal Input:Single-ended,pulse/direction

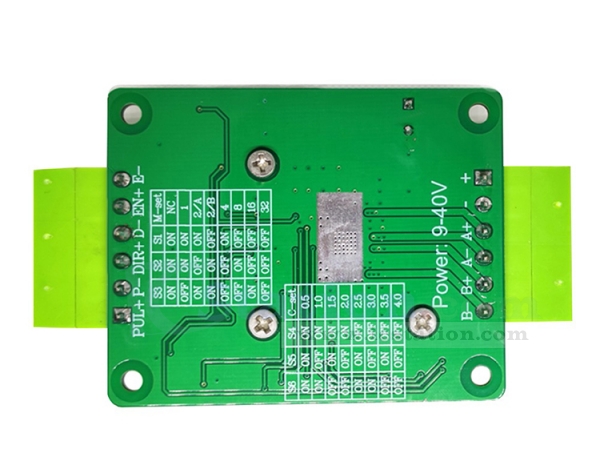

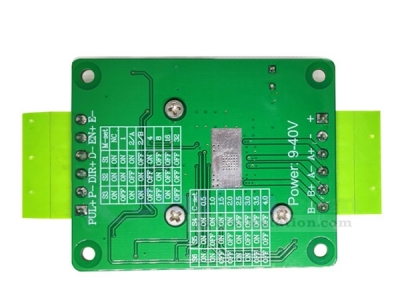

 3).Subdivision Optional:1/2/4/8/16/32 subdivision
 4).Cooling Method:Natural cooling or forced air cooling
 5).Input Voltage:DC 9V-40V
 6).Output Current:0.5A-4A
 7).Work Temperature:-25℃~85℃
 8).Work Humidity:40%~90%RH

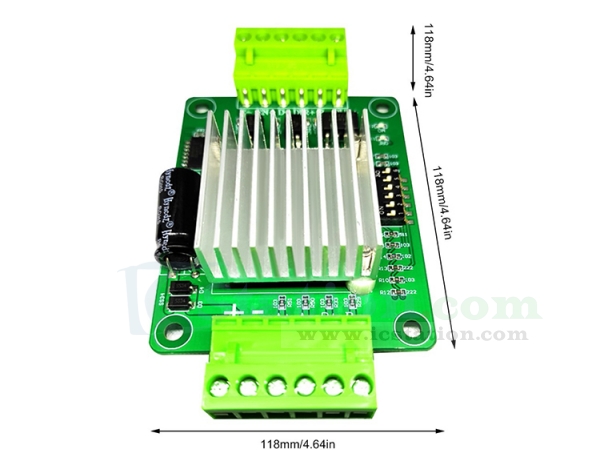

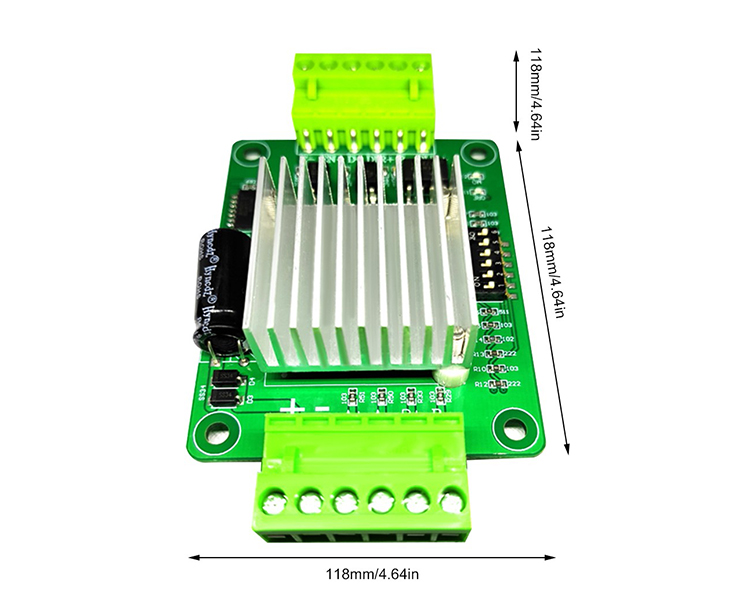

 9).Size:118*60*22mm


4.Package:
 1pcs TB6600 42/57 Stepper Motor Driver
