Undervoltage Control Module LED Display Charge Controller Module for 12V-120V Battery

5 9
$6.49 $4.87
Time Remaining:
- OR - Add to Wish List


No. Parameter Value
1 Product name Battery undervoltage protection module
2 Product model YX-X1208
3 Input voltage DC 12-120V
4 Voltage error ± 0.1V
5 Display precision 0.1V
6 Control precision 0.1V
7 Install size About (L)42mm* (W)41mm(4 pole* DIA 3mm)
8 Product size About (L)51mm* (W)41mm* (H)18mm
9 Product weight 25g
10 Product packaging Antistatic bag

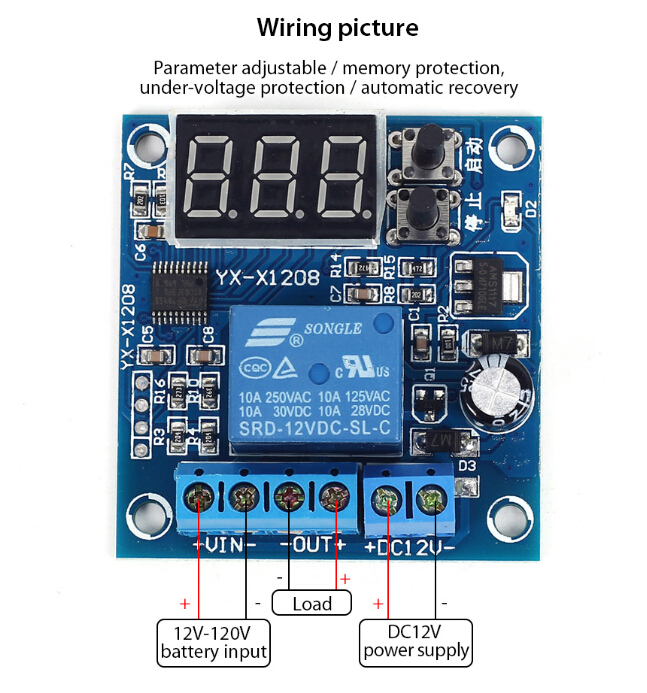

Load setting instruction:
1>. Example of 12V battery:
The 12V battery is set under voltage (load disconnect voltage) of 10.5V. When the battery voltage reaches 10.5V and below, the control panel is delayed for 6 seconds and then the load is disconnected. If the voltage boost to above 10.5V in 6 seconds, the load is continuously connected.
2>. Example of 48V battery:
Assuming the voltage of 48V battery is 42V, the maximum charging voltage is 57.6V.When the battery is below 42V, the voltage won’t boost above 42V in 6 seconds, then the load is disconnected. (If the battery voltage boosts to 42V in 6 seconds, load protection is connected).

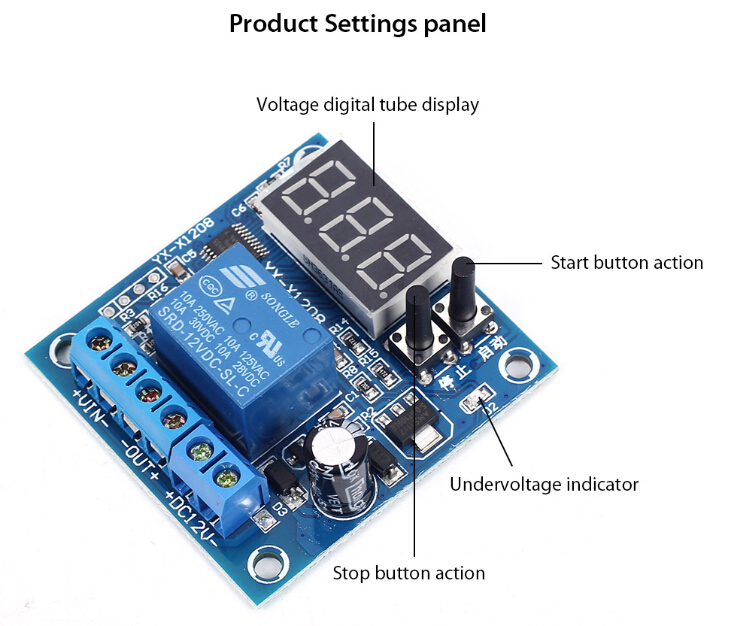

Voltage setting instruction:
In the setting of numerical normality (digital tube flicker), start button to boost the voltage, stop the button to reduce the voltage.
1>. Start button (set the voltage of the battery under voltage, that is to disconnect the load)
In normal display voltage normal, press the start button to display the battery undervoltage voltage. Long press the start button to stop the digital tube flickering, set the battery undervoltage voltage by start and stop button.
2>. Stop button (set the voltage of the battery over voltage, that is to connect the load)
In normal display voltage normal, press the stop button to display the battery overvoltage voltage. Long press the stop button to stop the digital tube flickering, set the battery overvoltage voltage by start and stop button.
3>. Restoration of original plant Settings:
Under normal power, hold the start and stop buttons at the same time, and the digital tube displays 888, that is to restore the original factory setting success.
The remark“启动”of the board means start; “停止”means stop.
