CA-188 Universal LED Constant Current Board LED Universal Inverter Module for LED Panel

12575
5 9
$4.35 $3.05
Time Remaining:
- OR - Add to Wish List

Description:
This is CA-188 Universal LED Constant current board,LED universal inverter FOR LED panel.

Parameters:
1>. Size:12x3cm
2>. Input Vol:6V-20V
3>. Supported: 15inch-24inch panel
4>. For:LED panel
5>. Supporting 12 kinds of Definition with 7pcs cables

Using Attention:
1> . The power supply, ground wire and switch signal needed by the booster board are connected to the universal LED boost board VCC power supply ON switch signal.
     ADJ brightness control GND ground wire (the same as LCD high voltage board connection method)
2>. With the universal meter to measure out, LED light bar connection power supply has several lines. Figure out which ones are, how many the negative lines are, and which lines they are.
P.S. The power supply of the LED light bar is the same, and they are all connected together. How many negative electrodes represent the number of series connected circuits.
     The connection interface of LED defines only the positive and negative parts, and the positive input power supply. Do not connect to the wrong line.
     More lines are only positive and negative points.

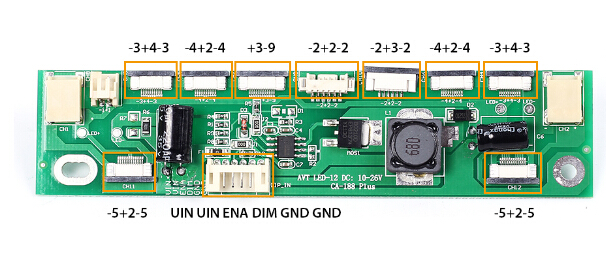

Input Interface Definition:
P.S. This LED boost board, set a variety of commonly used LED definition.
But it does not contain 3 sets of 9V step-down lights.

1>. VIN(12V-28V) positive pole
2>. VIN(12V-28V) positive pole
3>. ENA(2.4-5V ON,0V 0.8V OFF)switch signal
4>. DIM(0-5V, 0V is the brightest, and darkest at 5V)brightness adjustment
5>. GND(Ground)negative pole
6>. GND(Ground)negative pole
7>. Single and double 12PIN soft line interface: -5+2-5; (both single and double)
8>. Single and double 10PIN soft line interface: -3+4-3; (both single and double)
9>. Single and double 10PIN soft line interface: -4+2-4; (both single and double)
10>. Single 12PIN soft line interface: +3-9;
11>. Commonly used 6 wire interface: -2+2-2 (Samsung 6 line)
12>. Commonly used 1.0 specification 6PIN soft drain interface:-2+2-2
13>. Commonly used 2 needle interface: BH2..0
14>. Common standard light tube small mouth interface: BH 3.5 small mouth (both single and double)

Adaptation Models:
List of LED booster panel adaptation models (just a small part)
In the interface definition, C is the cathode and A is the anode



List of LED booster panel adaptation models (just a small part)
In the interface definition, C is the cathode and A is the anode
No. LED screen model Interface definition Interface specification Interface number Matching wire specification Output current
1 LM220WE5-TLC1 CCAANC FPC:6P-0.5mm 6P-2 6P-0.5mm soft line 44.7V 330MA
2 LM230WF5-TLA1 CNAACC FPC:6P-0.5mm 6P-2 6P-0.5mm soft line 45.5V 330MA
3 LM230WF5-TLB1 CCAANC FPC:6P-0.5mm 6P-2 6P-0.5mm soft line 43.8V 330MA
4 LM230WF5-TLC1 CCAANC FPC:6P-0.5mm 6P-2 6P-0.5mm soft line 43.8V 330MA
5 M236HGE-L10 CCAACC Neilsbed 6P-1.25mm 6P-1 6P-1.25mm Electronic transfer line 28.8V 330MA
6 LTM230HT09 ACCC Neilsbed 4P-1.0mm 6P-1 6P-1.25mm Electronic transfer line 44.2V 440MA
7 LTM230HT10 ACCC Neilsbed 4P-1.0mm 6P-1 6P-1.25mm Electronic transfer line 35.2V 360MA
8 LTM215HT04 ACCC Neilsbed 4P-1.0mm 6P-1 6P-1.25mm Electronic transfer line 33V 360MA
9 LTM270HT03 CCAACC Neilsbed 6P-1.25mm 6P-1 6P-1.25mm Electronic transfer line 52.8V 440MA
10 M240HW01 VB CCAACC Neilsbed 6P-1.25mm 6P-1 6P-1.25mm Electronic transfer line 36.3V 440MA
11 LTM215HT04 V ACCC Neilsbed 4P-1.0mm 6P-1 6P-1.25mm Electronic transfer line 33V 330MA
12 HM215WU1-100 CCAACC Neilsbed 6P-1.25mm 6P-1 6P-1.25mm Electronic transfer line  440MA
13 LTM200KT08-V ACCC Neilsbed 4P-1.0mm 6P-1 6P-1.25mm Electronic transfer line 29.7V 330MA
14 LM215WF3-SLC1 CCAACC FPC:6P-1.0mm 6P-3 6P-1.0mm soft line 41.6V 440MA
15 L236HC61A AC Neilsbed 2P-2.0mm 2P-2 Comes with the screen 28.8V 360MA
16 L236HC61A AC Neilsbed 2P-2.0mm 2P-2 Comes with the screen 28.8V 360MA
17 LM220WE5-TLA1 CCCAAAACCC FPC: 10P-0.5mm 10P-1 10P-0.5mm soft line 39.25V 44MA
18 LQ215M1LXXX CCCAAAACCC FPC: 10P-0.5mm 10P-1 10P-0.5mm soft line 42.9V 360MA
19 MT215DW01 V1 CCCAAAACCC*2 FPC: 10P-0.5mm 10P-1-2 10P-0.5mm soft line 43V 360MA
20 MT215DW01 V3 CCCAAAACCC*2 FPC: 10P-0.5mm 10P-1-2 10P-0.5mm soft line 42.9V 360MA
21 M240HW01 V6 CCCAAAACCC*2 FPC: 10P-0.5mm 10P-1-2 10P-0.5mm soft line 42.9V 320MA
22 M236H3-LA2 CCCCNAANCCCC FPC: 12P-0.5mm 12P-3 12P-0.5mm soft line 38.4V 320MA
23 V236H1-LE2 CCCCNAANCCCC FPC: 12P-0.5mm 12P-3 12P-0.5mm soft line 38.4V 320MA
24 M236H3-LA3 CCCCNAANCCCC FPC: 12P-0.5mm 12P-3 12P-0.5mm soft line 28.8V 440MA
25 V236H1-LE4 CCCCNAANCCCC FPC: 12P-0.5mm 12P-3 12P-0.5mm soft line 28.8V 440MA
26 LM215WF3-SLC5 CCAACC FPC: 6P-1.0mm 6P-3 6P-1mm soft line 41.6V 440MA
27 LTM185AT05 ACCC Neilsbed 4P-1.0mm 6P-1 Turn 6P-1.25mm to 4P-1mm 22.4V 360MA
