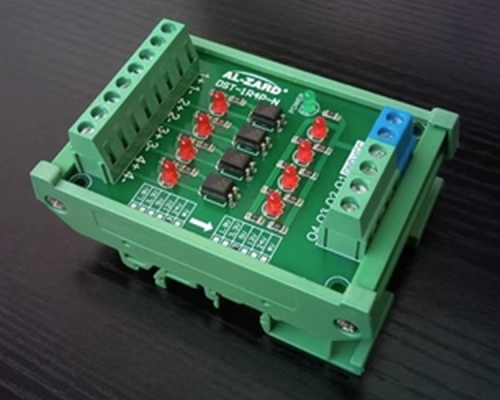

4 Channel Voltage Level Shifter Translator Optocoupler Isolation Board PLC Signal 4Bit Converter Module 24V to 5V

$4.61

~~$6.59~~30%

Quantity	3+	5+	10+
Price	$4.59	$4.45	$4.10

00d : 00h : 00m : 00s

Item ID: 8042

Add to Cart

Share Facebook Google Pinterest VKontakte Reddit

Wholesale discount offered from 100pcs .
If you are interested in it, feel free to contact orders@icstation-team.com
Thanks for your attention.

Features:

1. Conversion frequency:20KHZ.

2. Size:72*55*18mm

3. Mounting Hole Size: 64*47mm, diameter 3mm.

Application:

1. It can be used for signal isolation

2. PLC signal level converting

3. PNP/NPN signal to NPN signal

4. signal level voltage converter

Schematic Diagram:

Module Connection Diagram

Note: 1. Moudule power is equal to signal output.
2. The signal-voltage convension of the other boards is similar to that of this one.

Tested by ICStation's Outstanding Partner learnelectronics:

Learn More Details in the Video:
