1.Description:

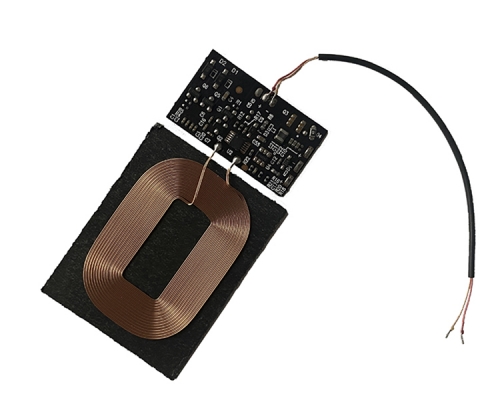

 It is a wireless charger receiver.It can be used with the transmitter to wirelessly charge the mobile phone. It is compatible with most transmitters.

2.Feature:
 1).It is easy to use,just plug the receiver into the phone.
 2).It can be placed in a mobile phone case and is very convenient to hold.
 3).It has a long transmission distance,which can reach 2-8mm.
 4).It conforms to the WPC_Qi standard wireless charging platform,and a single coil charges a device one to one.

3.Parameter:
 1).Product Name:Wireless Charger Receiver
 2).Input Voltage:DC 5V
 3).Input Current:2A
 4).Output Current:1A
 5).Transmission Distance:2-8mm
 6).Executive Standard:Qi wireless charging standard
 7).Work Temperature:-25℃~85℃
 8).Work Humidity:5%~95%RH
 9).Size:101*43*4mm(Charging interface)/110*45*5mm(Micro USB)/113*44*6mm(Charging interface)

4.Installation Steps:
 1).Insert the receiving sticker into the charging port of the mobile phone.
 2).Fold the receiving sticker to the back of the phone and stick it firmly.
 3).Cover the protective shell of the mobile phone and put it on the launching board to charge after installation.

5.Package:
  1pcs Wireless Charger Receiver
