Home > Smart Robots > Robot > 10pcs DC Micro 130 Motor 3V 16500rpm 1.3A Electric Motor Science Experiment for Toy 4WD

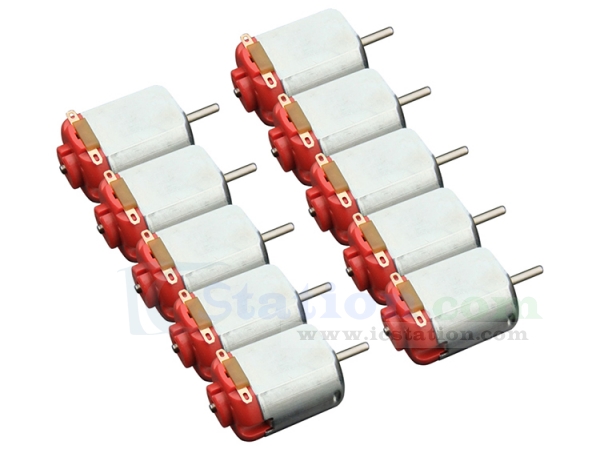

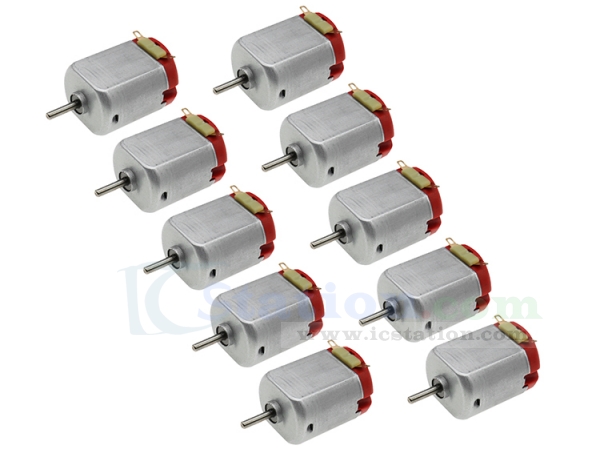

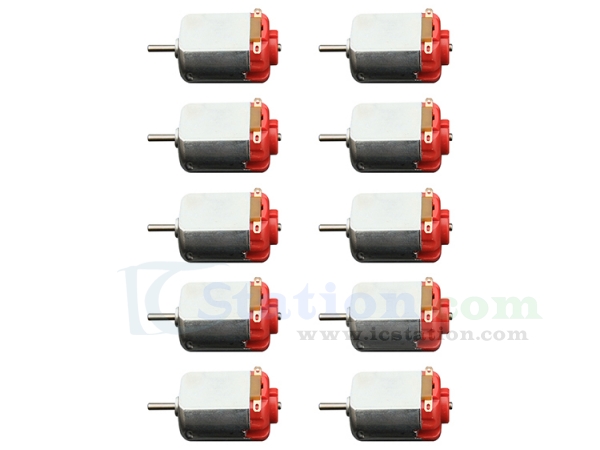

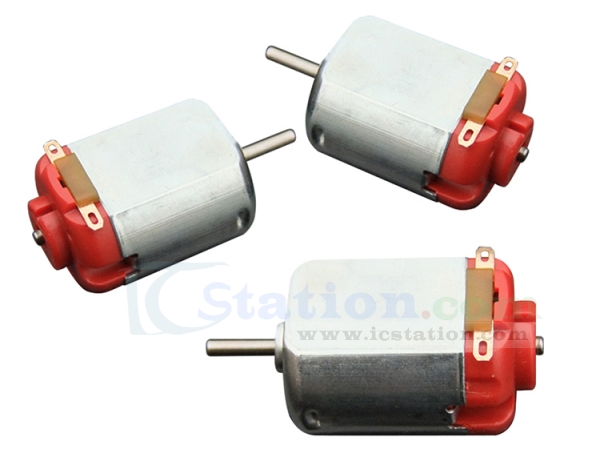

10pcs DC Micro 130 Motor 3V 16500rpm 1.3A Electric Motor Science Experiment for Toy 4WD

GY20660
5 9
$8.99 $5.84
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

1.Description:
  It is a 130 motor.It's a tiny 130 motor with a red back cover and not much torque.Generally small toy cars are this kind of motors,generally using 3-6V batteries,that is,2 to 4 AA batteries.

2.Feature:
  1).The 130 motor is a small motor with small volume and easy to carry.
  2).The speed of the DC motor can reach 16500 rpm.
  3).The working voltage of the four-wheel drive motor is small,which is convenient and satisfying.
  4).The no-load current of the motor is only 0.7A,which consumes less power.

3.Parameter:
  1).Product Name:130 Motor

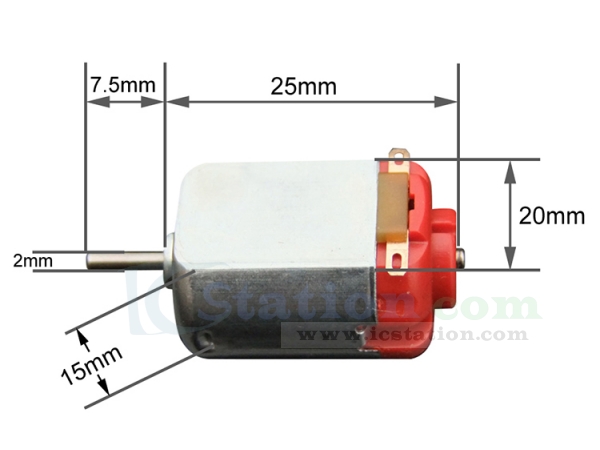

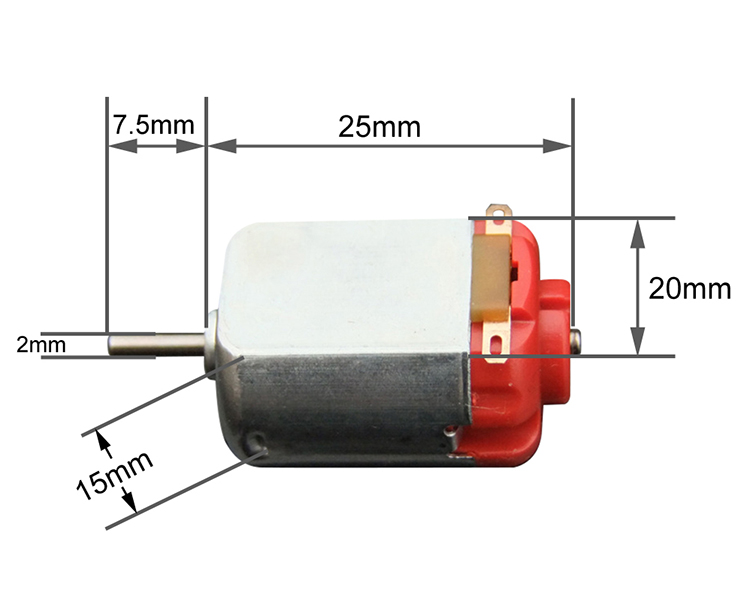

  2).Motor Specification:15*20mm
  3).Motor Height:25mm
  4).Output Shaft:2.0mm
  5).Length of Output Shaft:7.5mm
  6).Input Voltage:DC 3V-6V
  7).Rated Voltage:3V
  8).Speed:16500 rpm
  9).No-load Current:0.7A
  10).Stall Current:1.3A
  11).Work Temperature:-25℃~85℃
  12).Work Humidity:5%~95%RH
  13).Size:32.5*20*15mm

4.Application:
  1).Small toy car
  2).Use the propeller as a small fan

5.Package:
   10pcs 130 Motor
