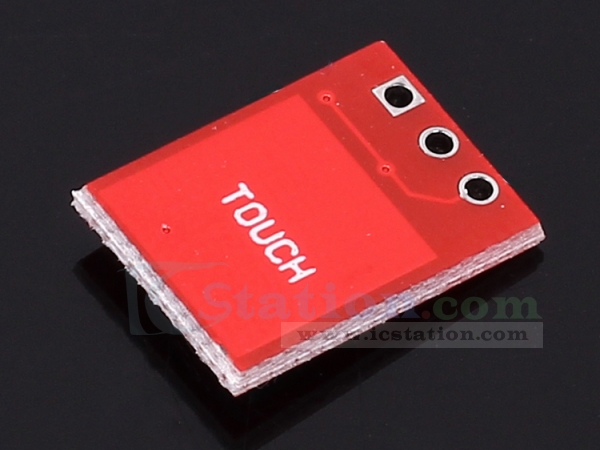

10PCS TTP223 Capacitive Touch Switch Touching Button Key Switch Module Self-Locking/No-Locking Module for Arduino

12675
5 9
$3.03 $2.18
Time Remaining:
- OR - Add to Wish List
Specification:
1.Size:15*11mm
2.Power:2.5-5.5V

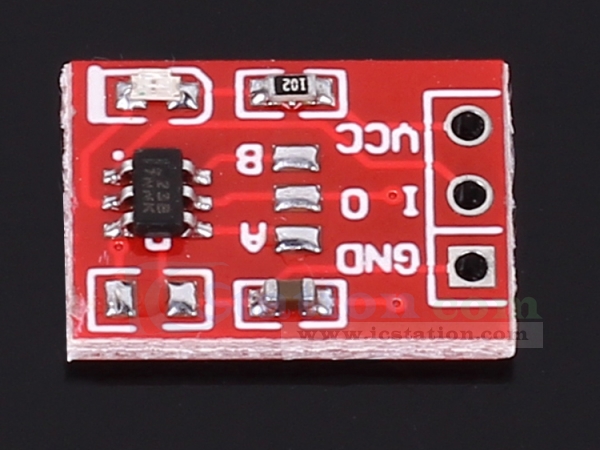

Trigger setting mode: (1->Short;0->No Short)
AB=00:No-lock High TTL level ouput;
AB=01:Self-lock High TTL level ouput;
AB=10:No-lock Low TTL level ouput;
AB=11:Self-lock Low TTL level ouput;

Tested by ICStation's Outstanding Partner sjm4306:






Learn More Details in the Video:

(The language in the video is English)
