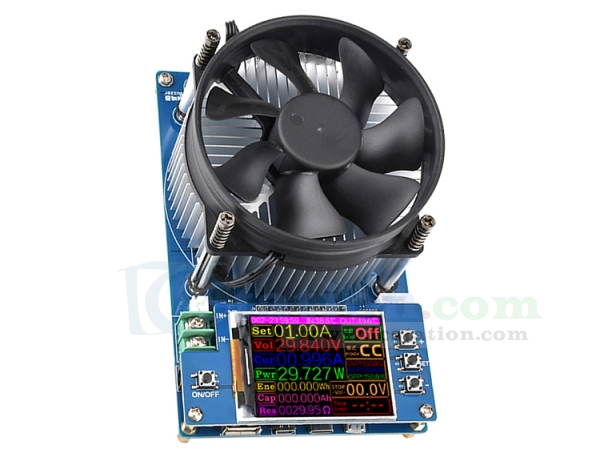

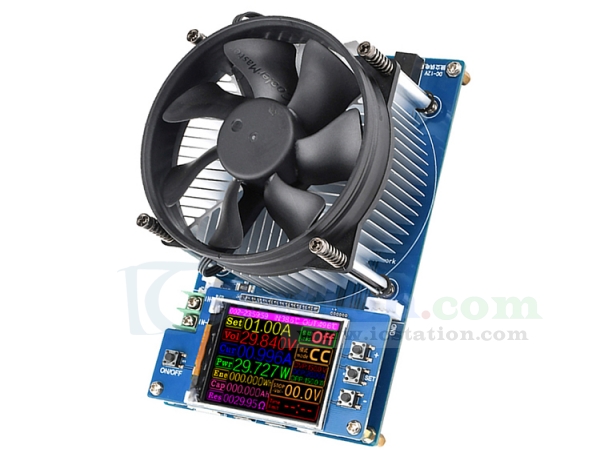

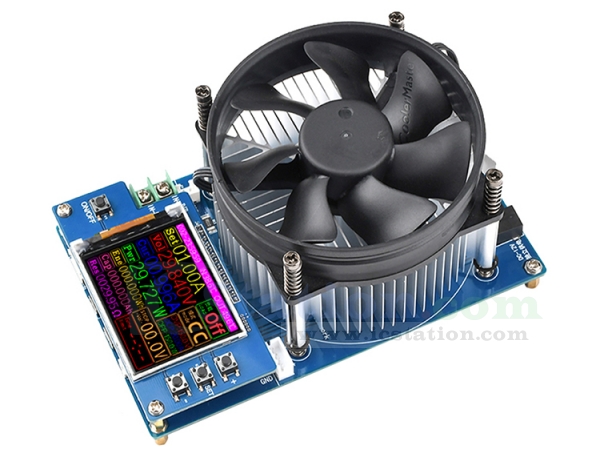

150W Electronic Load Tester 2.4in TFT LCD Display Aging Discharger Battery Capacity Tester

GY20764-1
5 9
$49.99 $34.99
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

1.Description:
   It is a 150W Electronic Load Tester 2.4in TFT LCD Display Aging Discharger Battery Capacity Tester

2.Feature:
  1>.Overload protection
  2>.Overcurrent protection
  3>.High temperature protection

3.Parameter:
  1>.Working power supply: DC 12V 1A
  2>.Input voltage:DC 00.000~150.00V
  3>.Input current:DC 00.000~20.000A
  4>.Power range:0~150W
  5>.Capacity range:0~999.999Ah
  6>.Electricity range:0~99999.9Wh
  7>.Impedance range:0~999.999Ω
  8>.Temperature range:-50℃~120℃(Outside) -10℃~80℃(Inside)
  9>.Time accumulation range: 999-23:59:59
  10>.Fan cooling power: ≤150W
  11>.Fan control threshold: Temp>40℃
  12>.Screen standby time: normally on or 0~ 99seconds
  13>.Run time accumulation function: >0.05A began to record the total time

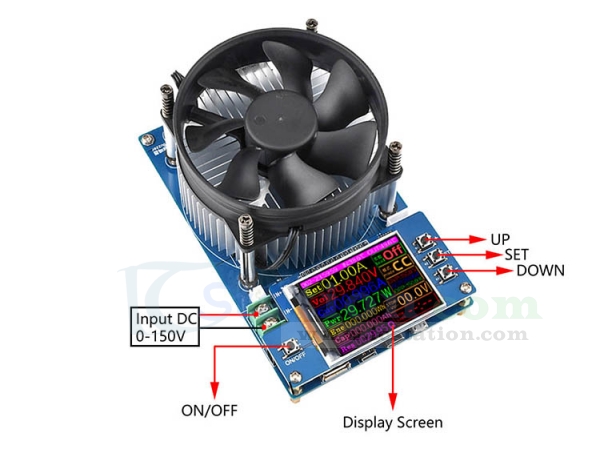

  14>.Input interface: 20A high current occlusion screw column, type A USB,Mini USB, Micro USB, Type-C USB
  15>.Refresh time:>500ms/time
  16>.Measurement rate: 0.5time/s
  17>.Over limit alarm: interface warning and buzzer alarm
  18>.Voltage overrun protection set range:0~150V The default 150V
  19>.Current overrun protection set range:0~20A The default 20A
  20>.Power overrun protection set range:0~150W The default 150 w
  21>.Low voltage stop range: 0~150 v

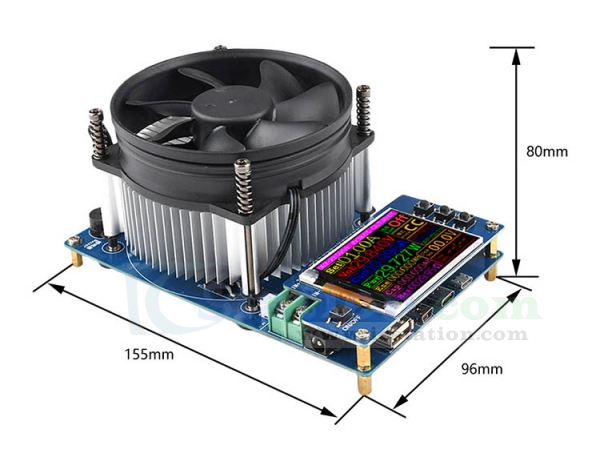

  22>.Size:155*96*80mm/195*105*135mm(package)
  23>.Consumption:<1.5A
  24>.Working temperature:-10~60℃
  25>.Working humidity:10~80(No condensation)

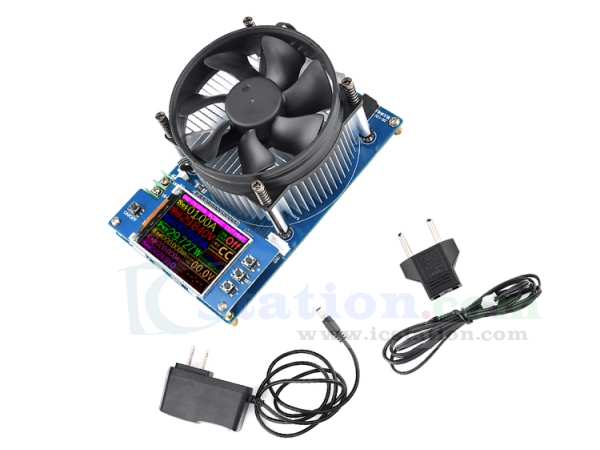

4.Package:
  1>.1pcs Battery Capacity Tester
  2>.1pcs Power Adapter
  3>.1pcs Power conversion plug
  4>. 1pcs Temperature sensor
