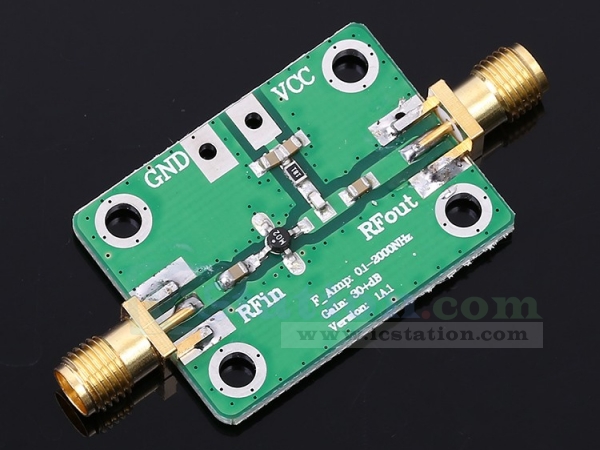

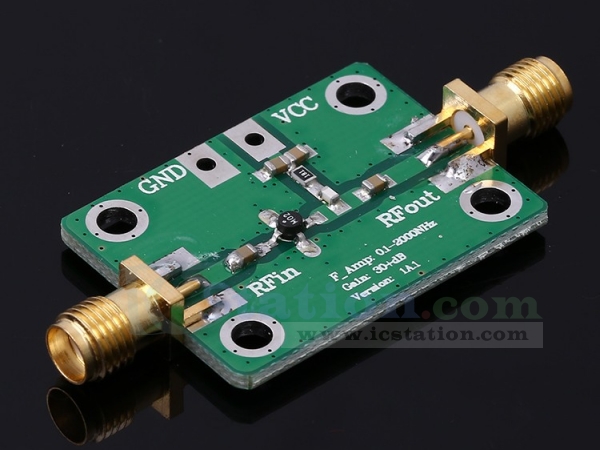

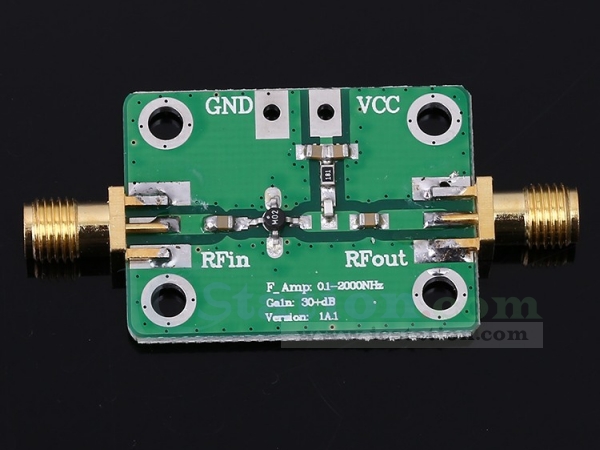

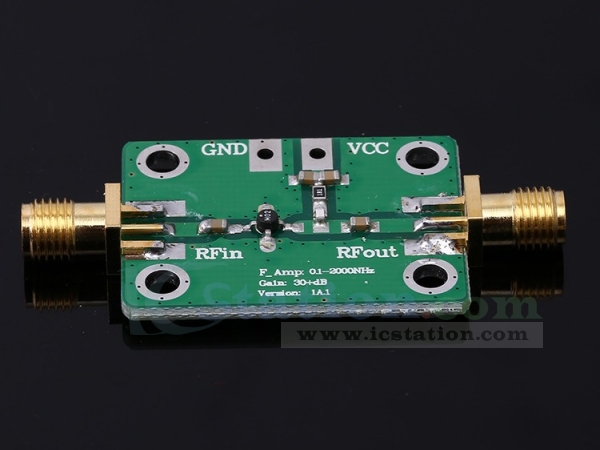

0.1-2000MHz RF Wideband Amplifier 30dB low-noise LNA Broadband Module

13508
5 9
$7.59
Contact us for wholesale price
- OR - - OR - Add to Wish List
Parameter:
1.Work Voltage:DC 6V-12V
2.Operating frequency: 0.1-2000MHz
3.Maximum power output: +10dBm(10mW)
4.Work Temperature:-40℃~85℃
5.Work Humidity:0%~95%RH
6. System impedance 50Ω

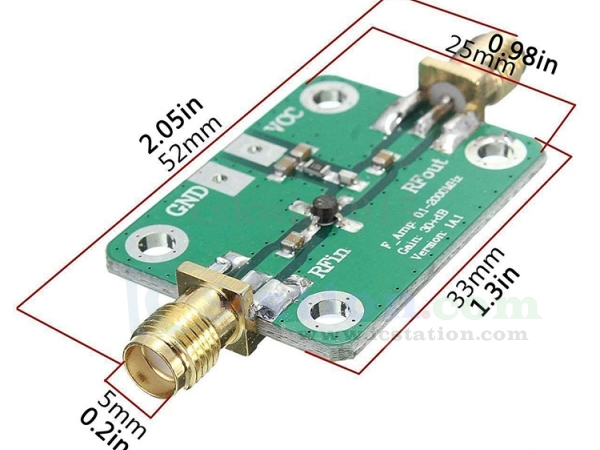

7.Size:52*25*6.5mm

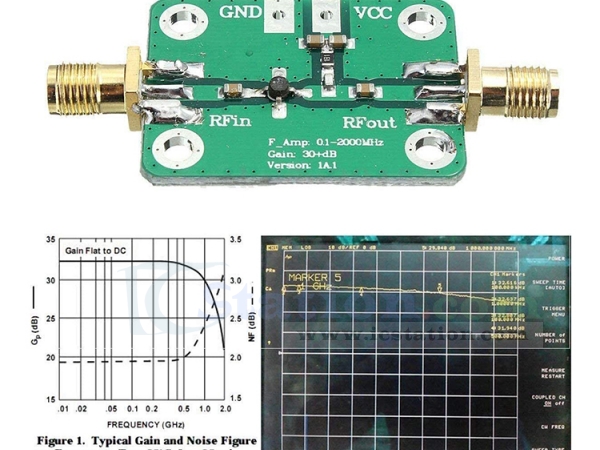

8.Amplifier gain
-F=0.1MHz, gain=32dB
-F=500Mhz, gain=31dB
-F=1000MHz, gain=29dB
-F=1500Mhz, gain=25dB

-F=2000MHz, gain=20dB

Features:
1>.This product with wide frequency range, high gain, low noise figure
2>.This product can be applied to various rf receive front-end and increases communication distance
3>.Used for Short wave, FM radio, remote control receiver, such as cable TV signal amplifier need low noise rf signal amplification

Tips:
1.When working frequency is less than 500MHZ,it get well gain flatness, can make it less than 1dB after careful adjustment. The lower frequency the higher gain consistency.

2.Amplifier working frequency of the lower limit is subject to input and output capacitor, the default value is 0.1 uF, working to 0.1MHz. Increase the input and output capacitance appropriately,can extend the cut-off frequency, such as 10uF capacitance can work to 5KHz.

3.When the power supply voltage changes in 5-8v, it can be used as a variable gain amplifier, gain increases with the increase of the power supply voltage, which suitable for radio frequency receive front-end circuit, using DA control power supply voltage, to control the gain of the amplifier, automatic gain control

4.When the power supply voltage in the 8-10v, the low frequency end gain up to 30db, at this time the amplifier has a low noise coefficient and good stability.

5.When the voltage is 12v, reach maximum gain, the low frequency end gain of 32.5dB.

Package:
1pcs 0.1-2000MHz RF Wideband Amplifier
