2bit Relay Module Bluetooth 4.0 BLE Precise for Android Apple IOT Smart Home Switch

8463
4 1
$16.15 $11.31
Time Remaining:
- OR - Add to Wish List

Cheaper Buy Together

$16.20-6%Bundled Price:$15.23

Description:

Introduction:
This product is a one-channel Bluetooth controlled relay module, module type ZL-RC02D. It has a Bluetooth 4.1BLE communication module.
This product supports Android and Apple phones. The hardware of Android phones must support Bluetooth 4.0, and the system must be version 4.3 or higher.
No Matching password is required. After installing the software, the phone can directly search out, connect with and control the module.

Product Parameters:
Input Voltage(Module Power Supply): 6-24V
Bluetooth Version: Bluetooth 4.0BLE
Switch Channel: 2 channel
Switch Electrical Parameter: 10A
Size: 61*62mm
Standby Power Consumption: (12V power supply) 6mA
One Channel Relay Power Consumption: 30mA

Product Details:

Each relay switch is an indepedant module.
The interfaces' definitiones of each relay are(from left to right): NO, A/B, NC.
When the relay is off, A/B connects with NO.
When the relay is on, A/B connects with NC.
The interfaces of the relay here are mechanical communication, no voltage output.

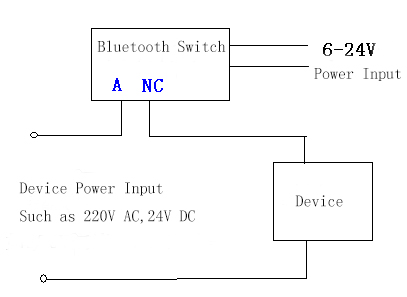

Connection Diagram:

Feedback

By
Rating: [4] 4 of 5 Stars! Date Added: 2017-10-11 11:11:16
The documentation for this device could be a little better. After scouring around, I found this version on another site with documentation and example apps that allow you to use this device. I paste it here and say it comes from diymalls.com Input voltage: 6-24V (edited: I believe) Android app: https://www.adrive.com/public/N3nXhh/BLEswitcheng1.apk Apple app:please search TwoSwitchBle in app store Note: For android phone, it must support bluetooth 4.0 LE, and the Android System must above 4.3 Switch electrical parameters: 10A Document link http://www.diymalls.com/files/bluetooth-relay-module.zip The password and username for the above documentation link is "diymall" For example if you can connect to it with Punch Through Designs BLE app for example and send the hex: C5053132333435363738AA The relay should click open for example, the above is the control codes C5 05 Then the password 12345678 in ascii hex, then the command terminator AA Good luck!
