38KHz Infrared Receiver Module for Smart Car Infrared Remote Control DIY Kit

GY20672
5 9
$8.50
Contact us for wholesale price
- OR - - OR - Add to Wish List

1.Description:

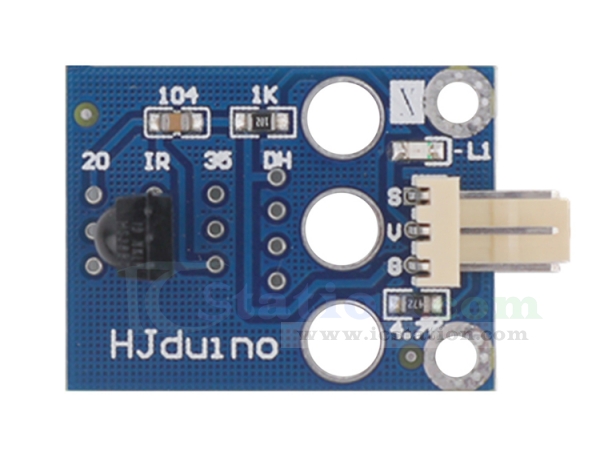

  It is an infrared receiver module.It is used to receive 38KHz infrared signals, and can be used in conjunction with commonly used infrared remote controllers and infrared transmitter modules on the market to achieve infrared remote control, decoding and other functional applications.

2.Feature:
  1).This module adopts HS8B infrared receiving head,which is much more stable than the traditional 1838 infrared receiving module on the market. It is not afraid of strong light and can be used outdoors.
  2).The infrared receiving module is equipped with a silicone button remote control, using an independent silicone material panel button,which has a soft feel and sensitive contacts, so there is no need to worry about the buttons being misjudged.
  3).The infrared module is small in size and easy to carry.
  4).There are mounting holes and screws on the module, which can be installed by yourself.

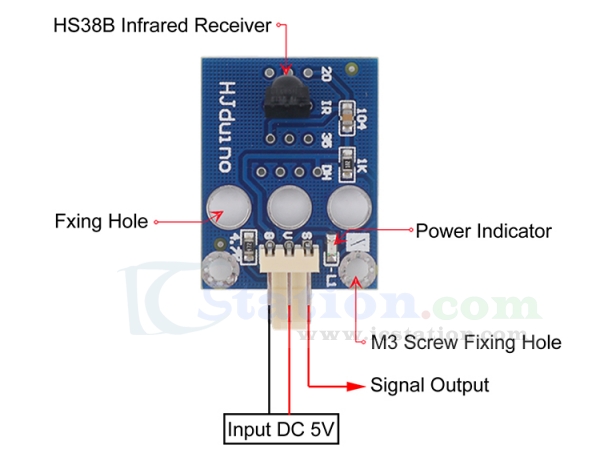

  5).The receiving module has a power indicator, and the working status of the module can be observed through the indicator.

3.Parameter:
  1).Product Name:Infrared Receiver Module
  2).Input Voltage:DC 5V
  3).Infrared Receiver:HS38B
  4).Connection Method:anti-reverse 3P interface
  5).Receive Signal:38KHz infrared signal
  6).Work Temperature:-25℃~85℃
  7).Work Humidity:5%~95%RH

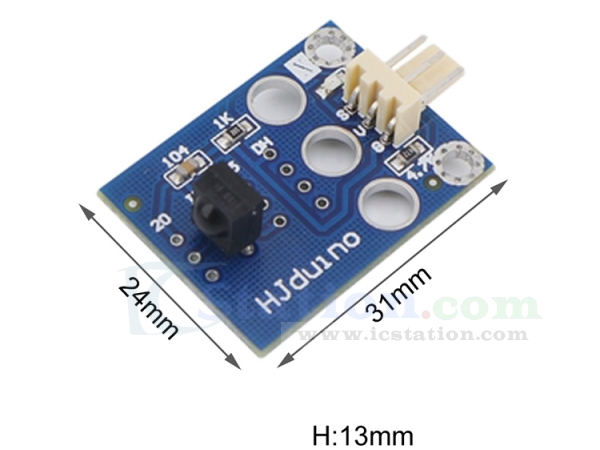

  8).Size:31*24*13mm

4.Application:
  1).Intelligent Robot
  2).MCU development board
  3).Maker DIY
  4).Smart home control

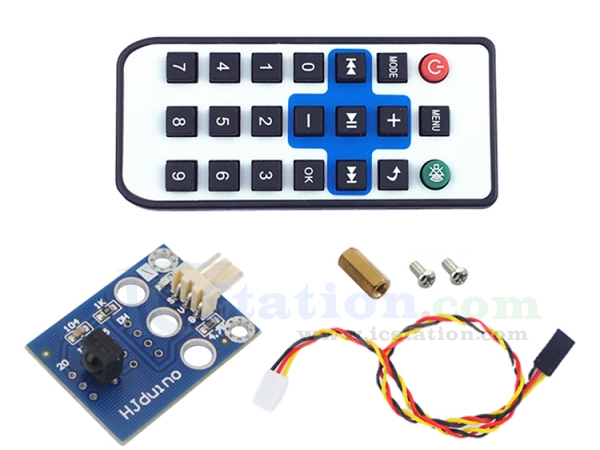

4.Package:
  1).1pcs infrared receiver module
  2).1pcs Silicone button remote control
  3).1pcs cable
  4).2pcs screws
  5).1pcs copper pillar
