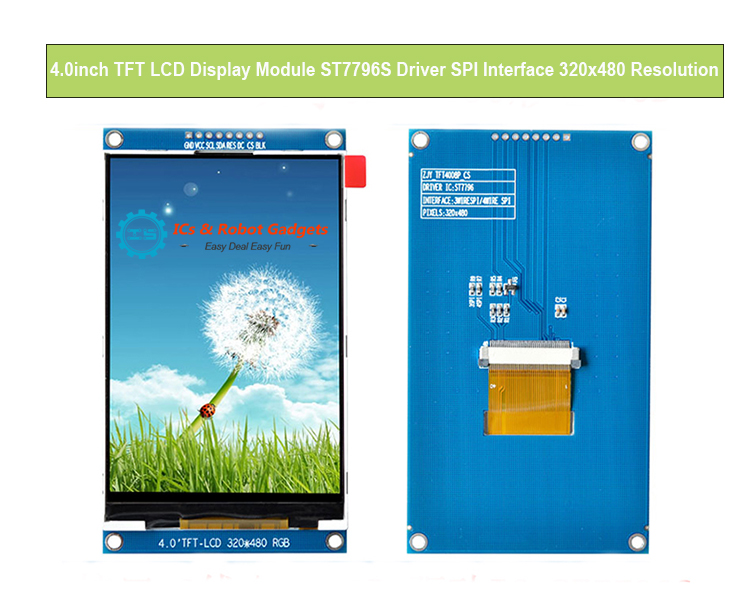

DC 3.3V 4.0inch TFT LCD Display Module RGB 320*480 ST7796S Driver SPI Interface 320x480 Resolution

GY18325
5 9
$25.99 $20.79 (only 0 pcs )
Contact us for wholesale price
Time Remaining:

Sold out


1.Description:

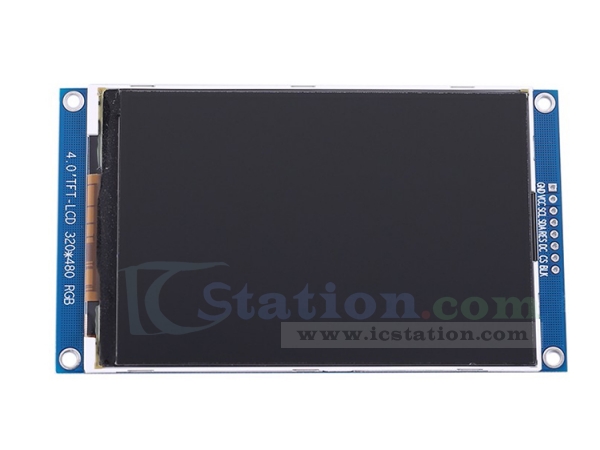

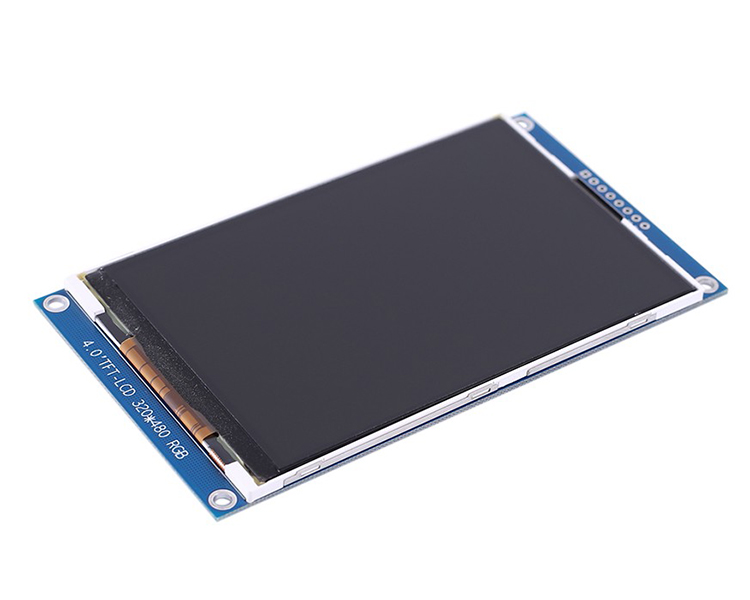

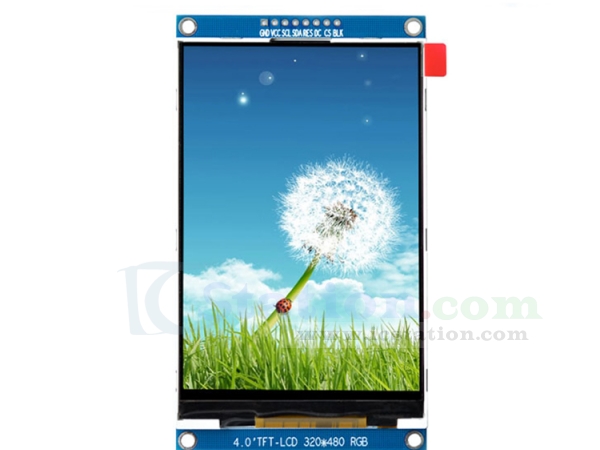

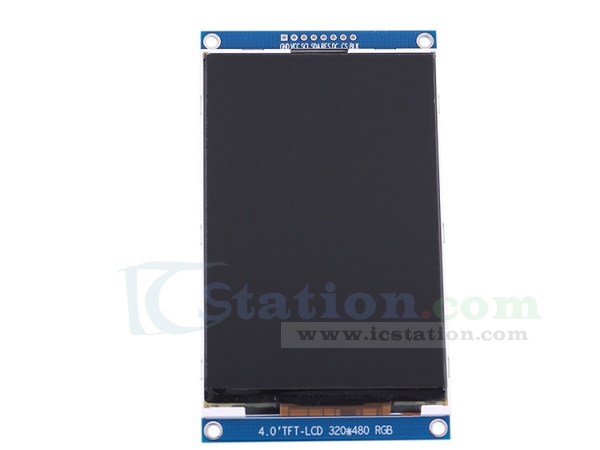

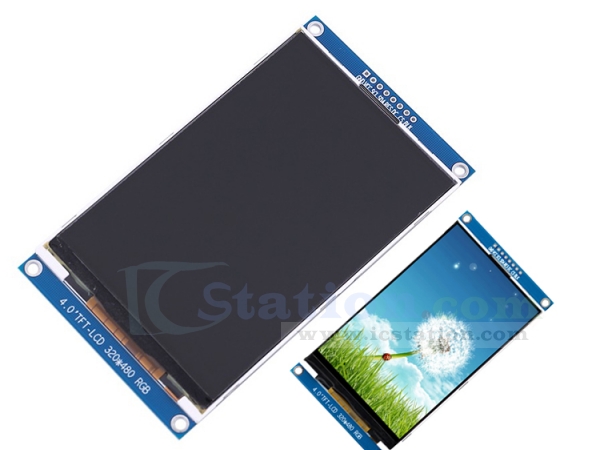

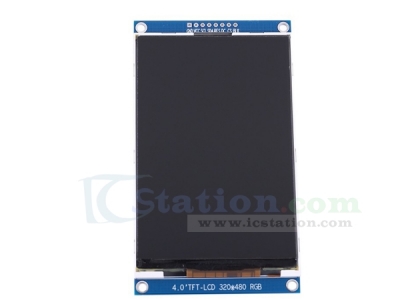

    It is a 4.0inch 320*480 TFT LCD Display Screen.

2.Features:

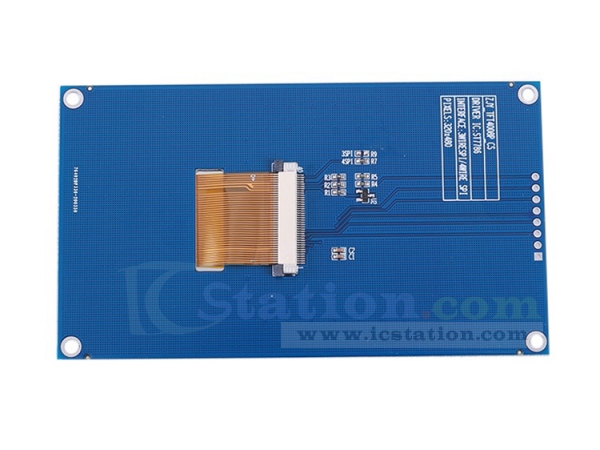

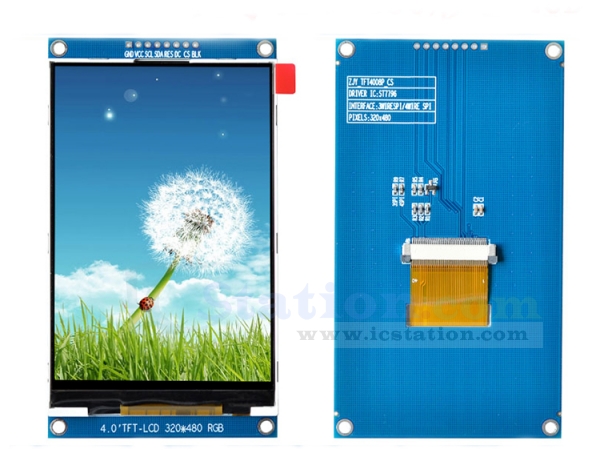

    1>.Include PCB Board
    2>.4Pin SPI communication
    3>.Adjustable display direction
    4>.12 o’clock viewing angle display

3.Parameters:
    1>.Product Name:4.0inch 320*480 TFT LCD Display Screen
    2>.Material:TFT LCD color display screen
    3>.Resolution:320*480
    4>.Driver Chip:ST779S
    5>.Display Size:4.0inch

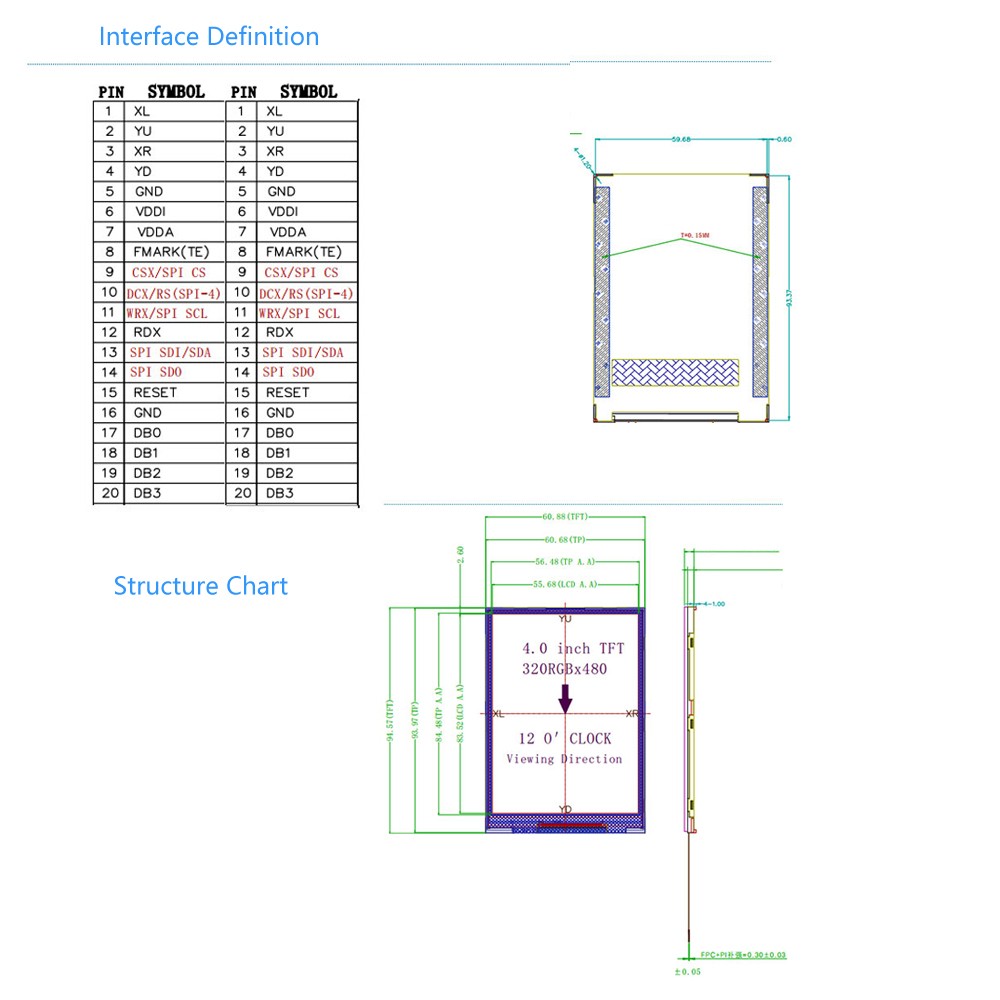

    6>.Display area:55.68*83.52mm
    7>.Panel size:60.88*94.57*3.7mm
    8>.Interface type:3PinSPI/4PinSPI
    9>.Work voltage:2.8V-3.3V
    10>.Pins:2.54mm 8Pin
    11>.View:12 o’clock
    12>.Work current:120mA
    13>.Work power:0.42W
    14>.Backlight type: 8pcs LED
    15>.Working Temperature range:-20℃~70℃
    16>.Working Humidity Range:5%-95%RH

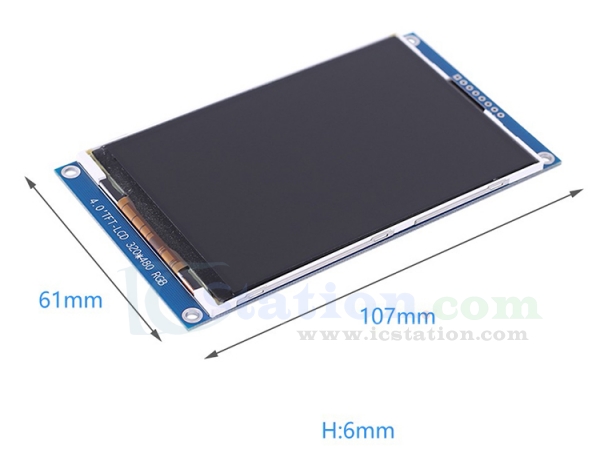

    17>.PCB Size:107*61*6mm

4.Application:
    1>.Instrument display
    2>.Mobile devices
    3>.Wearable display device
    4>.Real-time monitoring and display equipment

5.Package:
    1pcs 4.0inch 320*480 TFT LCD Display Screen
