DIY Kit 4Bit Digital Electronic Clock Temperature Display Alarm Clock Soldering Kits

GY20174
5 9
$12.99 $9.09
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Introduction:

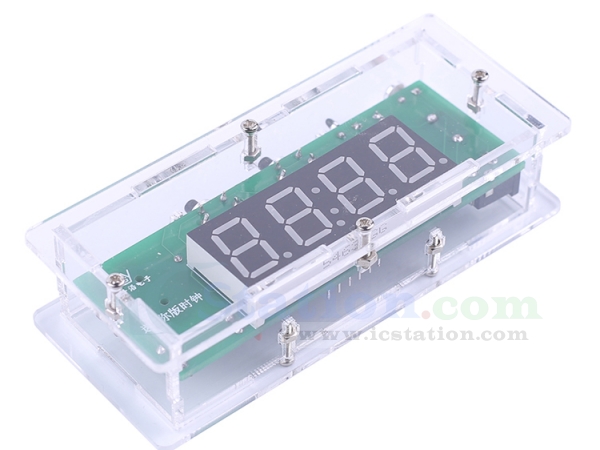

  It is a Digital Electronic Clock Temperature Display DIY Kit with 4Bit Red 0.56inch display screen.
  It will display current time and temperature in the real time. User can set alarm as per your needs.
  It is a very interesting DIY electronic soldering kit, which enables us to understand the circuit more clearly and learn welding skills.

2.Feature:
  Time and Temperature display in turns
  Enable/disable alarm
  Automatic brightness adjustment
  Time memory function
  DIY soldering kits

3.Parameter:
  Product Name:Digital Electronic Clock Temperature Display DIY Kit
  Work Voltage:DC 5V
  Display Screen:4Bit 0.56" Red
  Display Mode:Time and Temperature display in turns
  Light control:Enable/disable
  Alarm:Enable/disable
  Work Temperature:-40℃~85℃
  Work Humidity:5%~85%RH
  Size(Installed):100*42*24mm

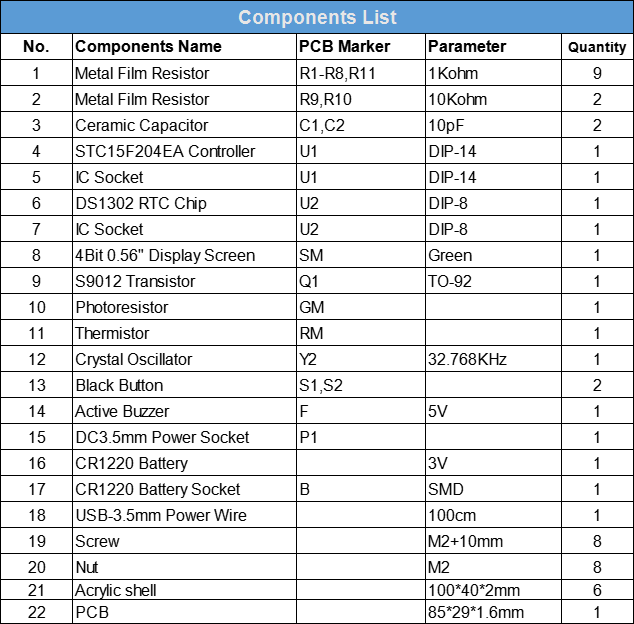

4.Components List:


Please Click Here to download user manual:
