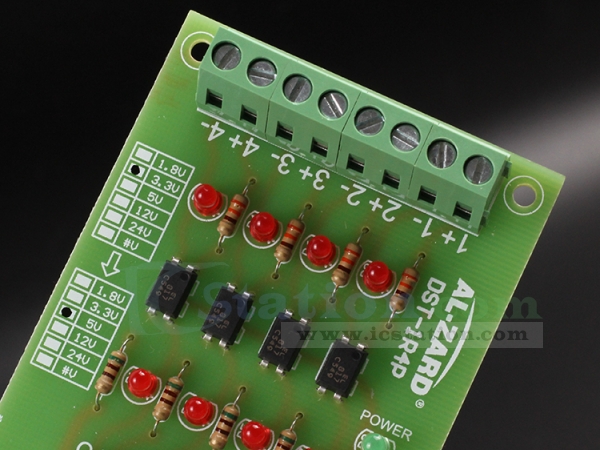

4Bit Optocoupler Isolator 3.3V to 24V Level Voltage Converter Board PLC Signal NPN Output

8029
5 9
$6.69 $4.68
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
Features:
1. Conversion frequency:20KHZ.
2. Size:72*55*18mm
3. Mounting Hole Size: 64*47mm, diameter 3mm.
Please noted: It is NPN Output.

Application:
1. It can be used for signal isolation
2. PLC signal level converting
3. PNP/NPN signal to NPN signal
4. signal level voltage converter

Schematic Diagram
Module Connection Diagram
Note: 1. Moudule power is equal to signal output.
