Wholesale discount start from 100pcs can be offered.
If you are interested in it, feel free to contact our service team: email@example.com .
Thanks for your attention.
1.Input Voltage:DC 4.5-24V

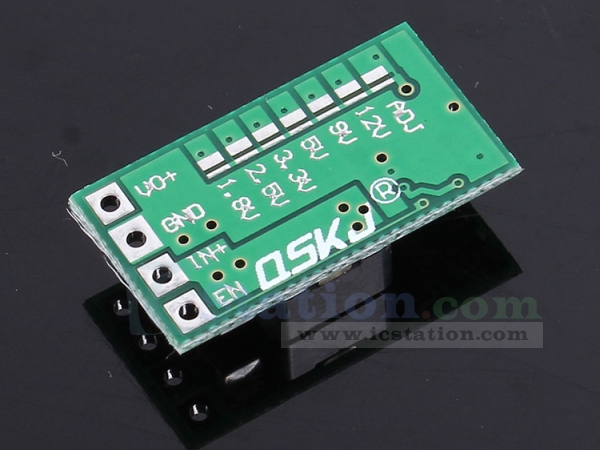

2.Output Voltage:integration adjustable and fixed output,back side can choose fiexd output voltage
3.Adjustable Range:0.8-17V,fixed voltage （1.8V 2.5V 3.3V 5V 9V 12V）
4.Output Current:3A (max),actual testing input 12V output 1.5A
5.Transform Efficiency:97.5%(max)（6.5 to 5V 0.7A）
7.Output Ripple Wave:20mV (12V to 5V 3A) 20m band width
9.Output Overvoltage Protection:no
11.Load Adjust Rate:±1%
12.Voltage Adjust Rate:±0.5%
13.Dynamic Response Speed:5% 200uS
14.Output Short Circuit Protection:yes
15.Input Transposition Protection:no
20.Soldering Hole Space:2.54mm

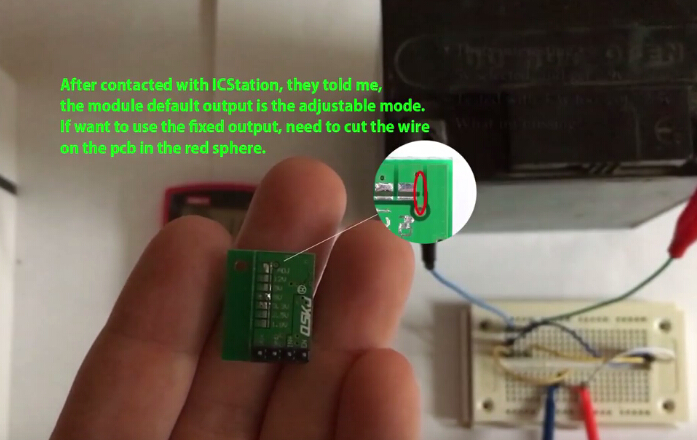

The module default output is the adjustable mode.
If want to use the fixed output, need to cut the wire on the PCB in the red sphere.(Below picture for reference)

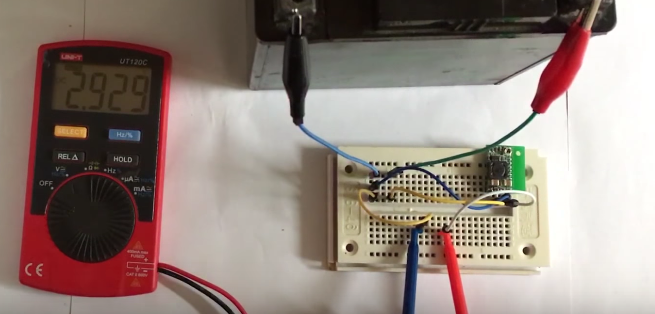

Testing Data Picture:
Tested by ICStation's Outstanding Partner Planetleak DIY Projects:
Learn More Details in the Video:
