XH-A234 Digital Power Amplifier Board 30W+30W DC12-24V Dual Channel Voice Audio Module 30W*2

13905
5 9
$3.99 $2.79
Contact us for wholesale price
Time Remaining:
- OR - Add to Wish List
Description:
  This digital power amplifier board has a moderate power resolution and it is used in 20W-30W speakers.
  It can be installed directly inside some small devices for easy installation and replacement.

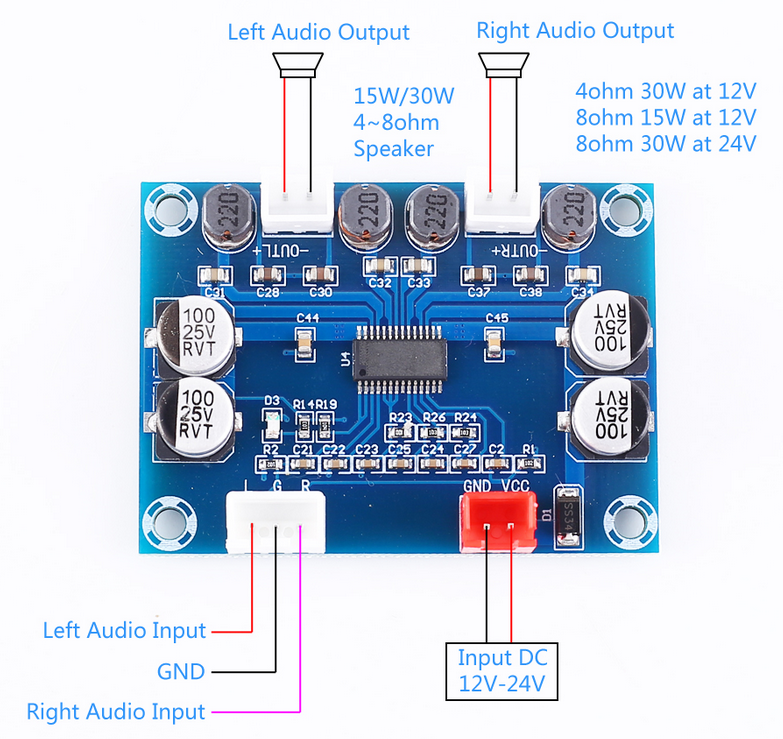

  This maximum range power supply DC12-24V.User can connect 4ohm 30W*2 speaker or 8ohm 15W*2 speaker when input 12V.And connect 8ohm 30W*2 speaker when input 24V.

Parameters:
  1>.Product model: XH-A234
  2>.Input voltage: DC12-24V
  3>.Number of channels: two channels
  4>.Output impedance: 4-8 ohms
  5>.Output power: 12V4ohm30W/8ohm15W/24V8ohm30W
  6>.Operating Temperature:-20℃~85℃
  7>.Operating Humidity:5%~95%RH

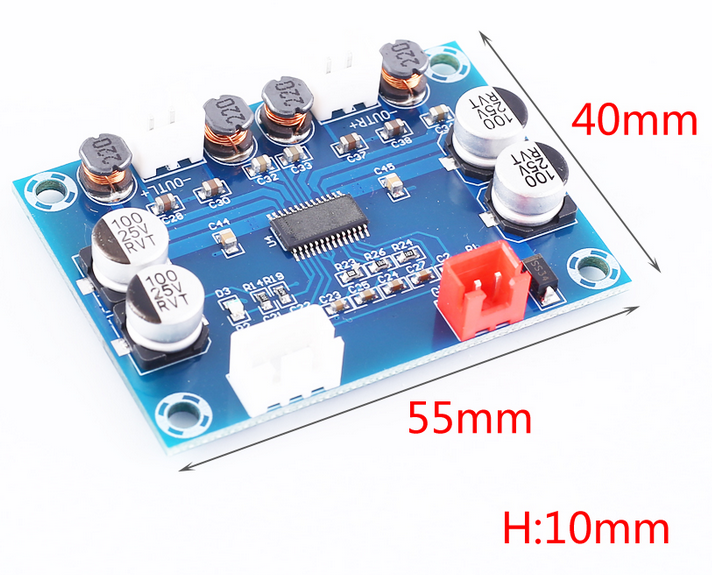

  8>.Module Size:55*40*10mm

There are currently no product reviews.
