DC to DC Automatic Buck Boost Converter Power Supply Module Step Up Step Down Module

13225
5 9
$6.35 $4.45
Time Remaining:
- OR - Add to Wish List

Description:
Automatic buck-boost power module.Fixed output for stable power.It can be used for solar energy, unstable power supply.

Features:
1>. Supports boost and buck at the same time.
2>. Output voltage stability.
3>. Ultra low voltage ripple output.
4>. Wide voltage input.
5>. 30W High Power.
6>. Better heat dissipation.
7>. Used as a constant voltage power supply.

Parameters:

No. Parameter Value
1 Mode XH-M245
2 Input voltage DC 6V-30V
3 Output voltage 5V-30V
4 Input current 3A(MAX)
5 Working frequency 180KHz
6 Size 62*31*22mm


Use Manual:
1>. Input a voltage value within DC 6V-30V.
2>. Use a voltmeter to test voltage at output port.
3>. Adjust potentiometer to make sure the output voltage is your need.
4>. Rotate the potentiometer counterclockwise to reduce the output voltage.
5>. Rotate the potentiometer clockwise to increase the output voltage.

Application:
1>. Car
2>. Solar energy
3>. Smart home
4>. Factory
5>. Greenhouse control
6>. Motor control

Frequency asked questions:
1>. Can it output 30V at 3A?
Q : No,it can not.The maximum output power is 30A.
2>. Is it isolated power?
Q : No,it is not.

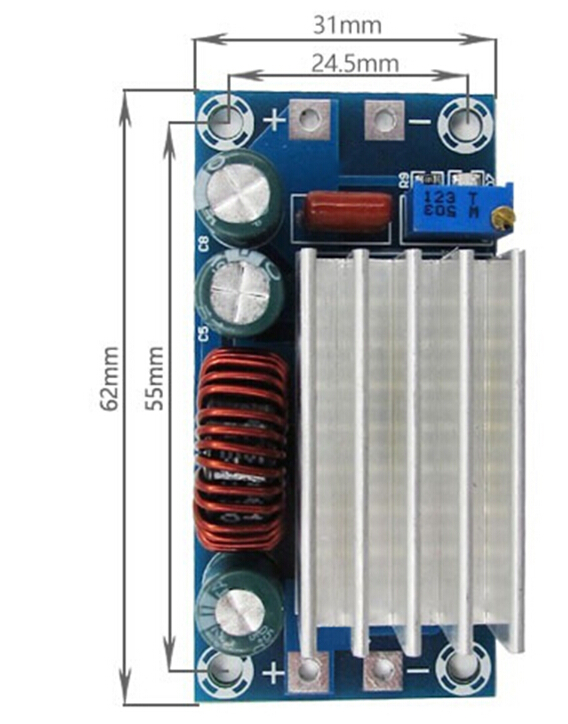

Product Size:

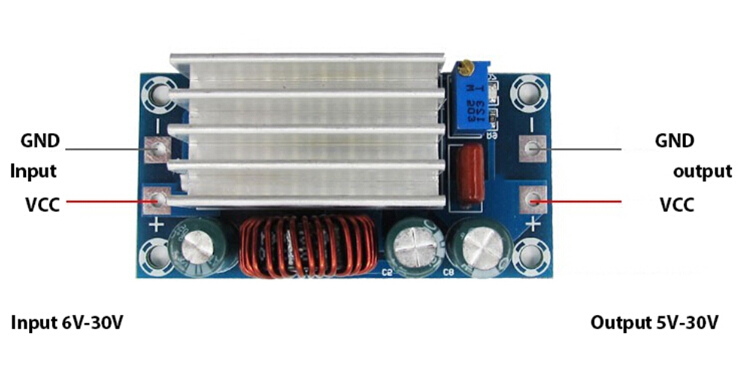

Pin Definition:

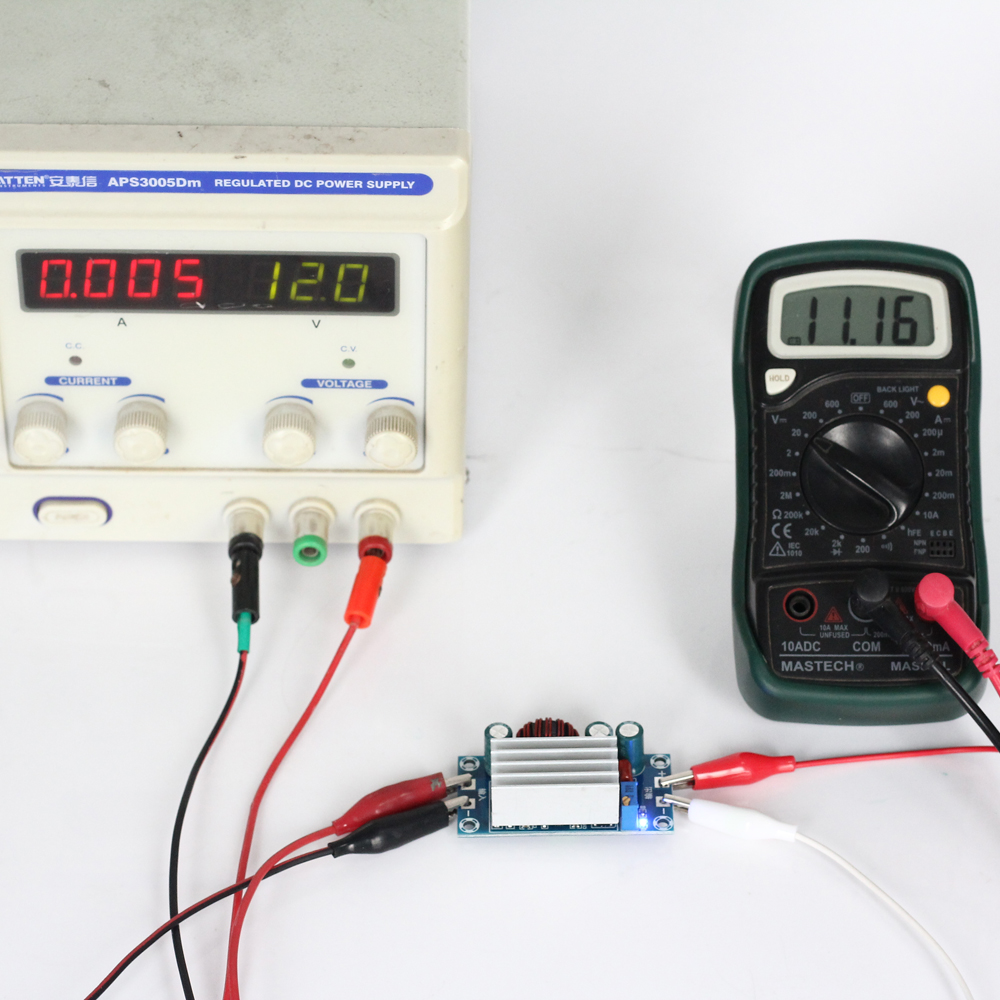

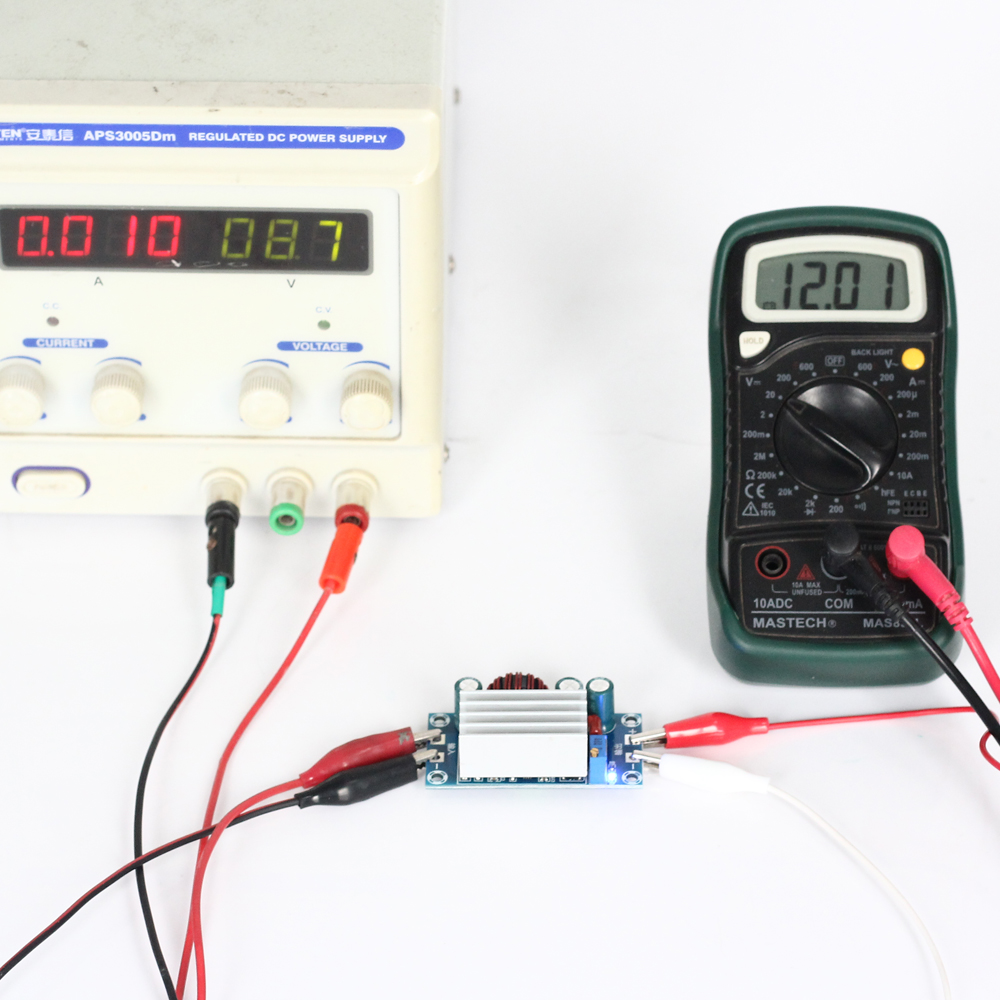

Tested:
