Product Introduction:
1.Control Temperature Range: -20~100 celsius
2.Resolution: 0.1 celsius (-9.9~99.9 celsius); 1 celsius (in other ranges)
3.Measurement Precision: 1 celsius
4.Return Difference: 0.1 celsius
5.Update Frequency: 0.5s
6.Input Power: DC 12V
7.Measurement Input: 1m NTC (10K 0.5%) metal waterproof sensor
8.Output: one channel 10A relay
9.Ambient Range: -10~60 celsius;20%-75%
10.Specification:46*40mm

Using Introduction:

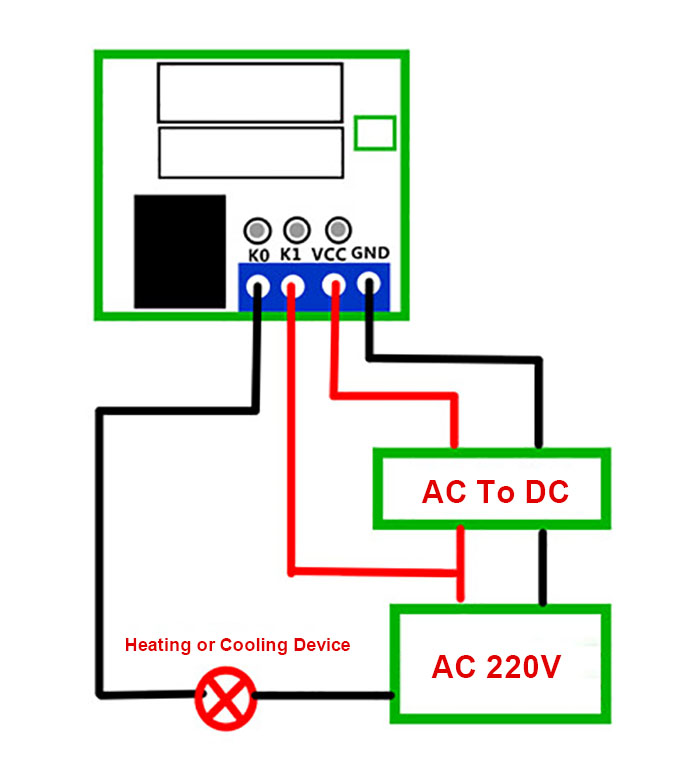

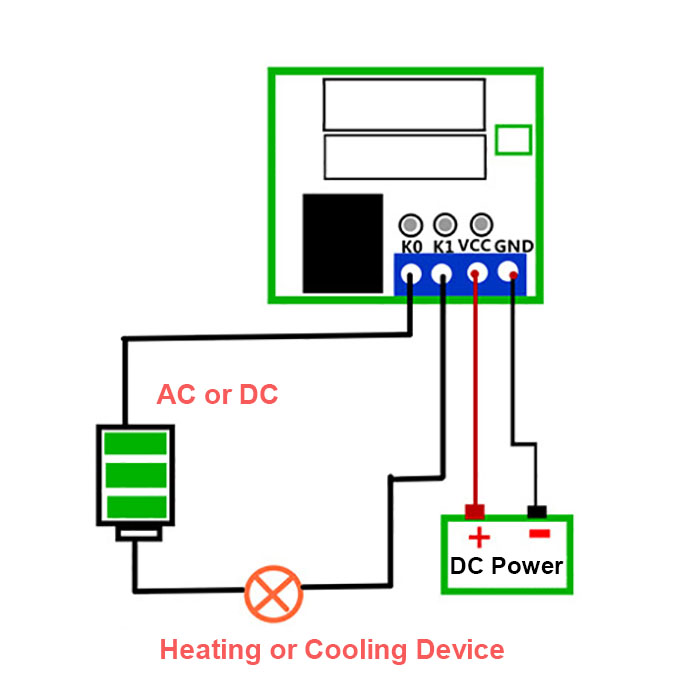

1.Circuit Connection: connect the power and the load, then the digital tube will display real time temperature value.
  When there is no temperature sensor or the digital tube gets damaged, it will display "---"
2.Indicator Lamp: OFF means the relay is disconnected; ON means the relay is operating
3.Digital Tube: display "---" 1.Check whether there is temperature sensor or it is damaged; 2.Heating mode high temperature
  protection 3.Cooling mode low temperature protection. When it is in protection mode, the relay will be automatically disconnected.
4.Key:
  Key +: to achieve fast rising of the value
  Key -: to achieve fast decreasing of the value
  Key SET: 3-interface switch; real time temperature interface, temperature set interface, parameter set interface
  Short press the SET key: the digital tube will flash and enter into temperature set interface. Then to set temperature
  via key + or key -. After setting, short press the SET key again, the data will be saved or after 5s, the data will be saved.

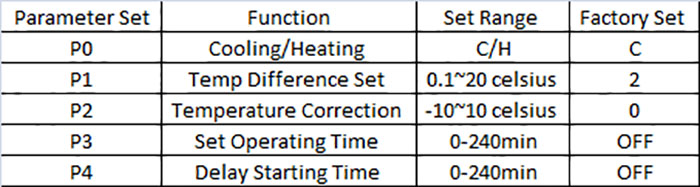

  Long press the SET key: enter into parameter set interface, P0-P4 is corresponding parameter set selections.
  In parameter set menu, switch P0-P4 via key + or key -. If you want to modify certain parameter, you can switch to certain selection,
  and short press SET key; enter into it and press the key + or key -. After the setting has finished, long press the SET key,
  then the data will be saved or after 6s, it will be automatically saved.

Notice:
1.P3 set 1 represents the temperature controller will stop after operating for 1min; short press SET, then it will be triggered again.
2.P4 set 1 represents the temperature controller will start to operate after 1min. After setting, the digital tube will be off;
  after 1min, it will come back to normal and operate. Short press SET key, it will be triggered again.
