DIY Kit Blue+Green Rotating LED Electronic Kit 24kind Beautiful Pattern

13409
5 9
$8.99 $6.29 (only 0 pcs )
Contact us for wholesale price
Time Remaining:

Sold out

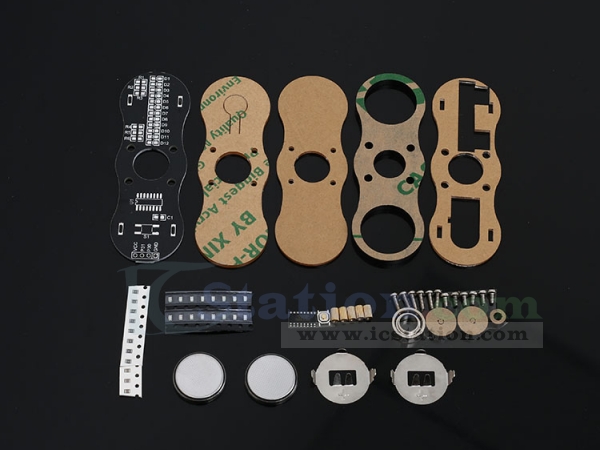

1.Description:

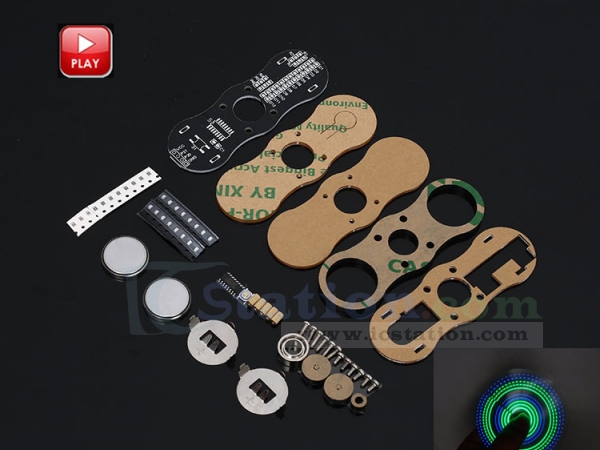

   A blue+green rotating LED DIY kit with 24 kinds of rotating display patterns. Great for entertainment.

(The language in the video is Russian)


2.Features:
    1>.Two-color dazzling
    2>.Support 24 pattern changes
    3>.DIY custom installation

3.Parameters:
    1>.Product Name:Blue+Green Rotating LED Electronic DIY Kit
    2>.Work Voltage:DC 3V
    3>.Work Temperature:-40℃~85℃
    4>.Work Humidity:0%~95%RH
    5>.Size(Installed):84*28*11mm

4.LED color rules:
    1>.User must install the LED according to the specified rules.
    2>.D1/D7,D2/D8,D3/D9,D4/D10,D5/D11,D6/D12.Each pair must use the same color, otherwise one of the LED will not light.
    3>.That means LED D7 must use blue LED if D1 use blue. Otherwise one of D1 or D7 can not turn ON.
    4>.For example D1~D3, D7~D9 use blue LED.D4~D6, D10~D12 use green LED.Conform to the rules.
    5>.Different arrangement, the effect is different.

5.Note:
    1>.User needs to prepare the welding tool first.
    2>.This DIY installation is more difficult to be installed, please be patient until the installation is complete.
    3>.The package is DIY kit.It need finish install by user.
    4>.The soldering iron can't touch the components for a long time(1.0 second), otherwise it will damage the components.
    5>.Pay attention to the positive and negative of the components.
    6>.Strictly prohibit short circuit.
    7>.Users can complete installation by PCB silk screen and component listing.
    8>.User must install the LED according to the specified rules.Otherwise some LED will not light.

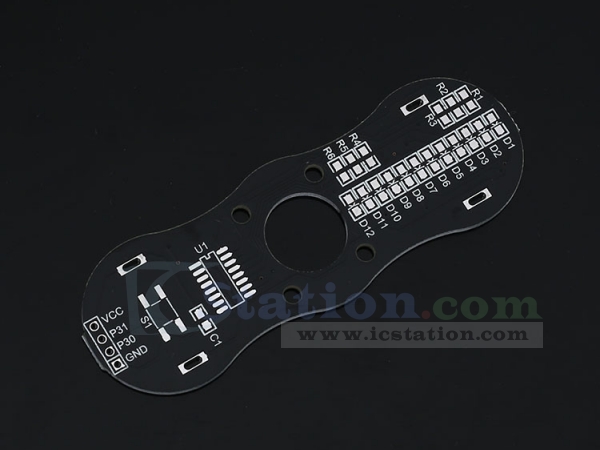

    9>.VCC/P31/P30/GND are used to download firmware for control IC STC8F2K08S2 by manufacturer.User cannot use.
    10>.It is strongly recommended to read the installation manual before starting installation.

6.Installation Steps
    Tips:
    1>.Install SMD components at first;
    2>.Install complex components preferentially;
    3>.Pay attention to the installation direction of components.
    4>.Make sure the soldering iron does not touch the components for a long time.Otherwise it is easy to damage the components.

    Step 1:Install 1pcs STC8F2K08S2 at U1.Pay attention to the installation direction and don’t short the pins.
    Step 2:Install 12pcs LED according to the specified rules at D1~D12. Such as D1~D3, D7~D9 use blue LED.D4~D6, D10~D12 use green LED.Pay attention to the installation direction.User need test positive and negative by multimeter for LED before install.

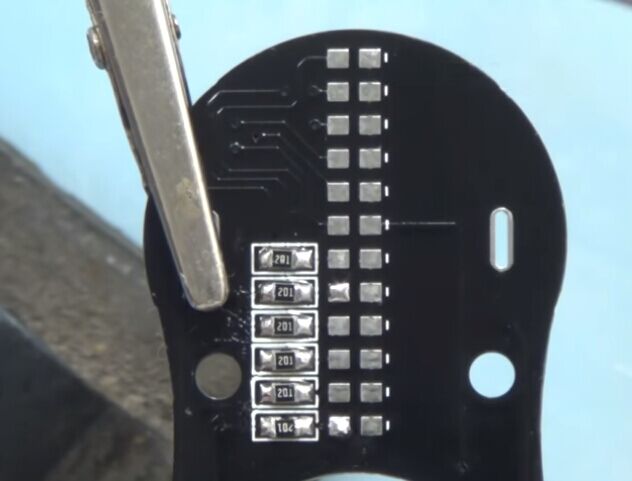

    Step 3:Install 6pcs SMD 200ohm resistor at R1~R6.
    Step 4:Install 1pcs 0.01uf capacitor at C1 and 1pcs button at S1.
    Step 5:Install 2pcs CR2032 battery socket and 2pcs CR2032 batteries.
    Step 6:Remove the protective film of the acrylic casing.
    Step 7:Place black acrylic sheet on side of battery socket.
    Step 8:Put 4pcs M2*5mm Copper Column at four install holes.
    Step 9:Put 1cps transparent acrylic sheet on black acrylic sheet and then fixed by 4pcs M2*4mm Screw.
    Step 10:Install another 2pcs transparent acrylic sheet on PCB other side and then fixed by 4pcs M2*6mm Screw.
    Step 11:Install Bearing as shown.
    Step 12:Press button to change display pattern.Long press button for 3 second to turn ON/OFF power.
