Bluetooth Audio Receiver Module MP3 WMA WAV FLAC Decode Board Lossless Bluetooth 4.2

12505
5 9
$3.75
- OR - Add to Wish List

Description:

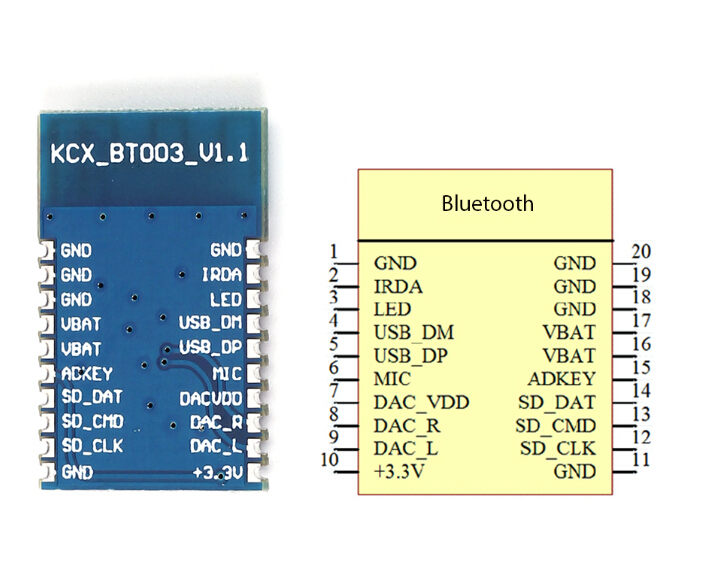

KCX_BT003 is a Bluetooth audio decoder with Bluetooth, audio, Bluetooth, MP3 decoding in one.
    In Bluetooth mode, it supports the various smart phone players on the market to play music, and support calls, voice reporting number, answer the phone / hang up, call / replay, recent calls, Bluetooth background connection and other functions.
    In music mode, it not only supports the commonly used MP3 format audio, but also supports the decoding of high-quality audio formats such as WMA, WAV, FLAC and so on.
You just need to put this codec into your product, and you can upgrade your regular wired audio products to wireless Bluetooth audio products.

Typical applications:
    1>. Home speakers change Bluetooth speakers
    2>. Sound box maintenance and upgrade
    3>. Car player upgrade
    4>. Computer speaker upgrade
    5>. Bluetooth MP3 decoder

Electrical characteristics:

Characteristics Minimum value Reference value Maximum value Company
Power Supply 3.3 5 5.5 V
IP 30     mA
FOP 2400   2485 MHz
PRF     2 dBm
Sensitivity   -85   dBm
Dynamic   91   dB
THD+N   -70   dB
Crosstalk   -86   dB
Signal to Noise ratio   90   dB
R_audio   32   ohm
DAC output power   150   mW

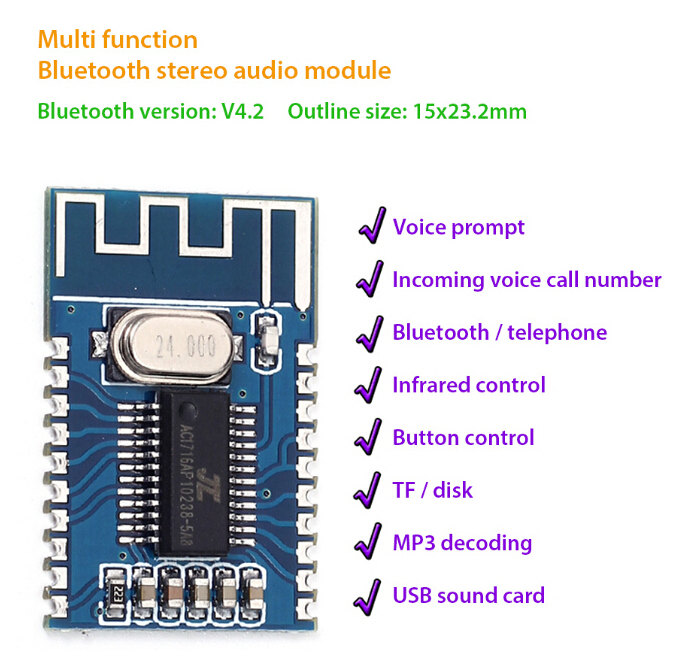

Features and advantages:
    1>. Wide power design
    2>. Power supply protection, anti protection
    3>. Exceptional durability and coexistence
    4>. Through a variety of technologies to ensure the stability of Bluetooth transmission
    5>. Intuitive LED instructions
    6>. Voice prompt
    7>. Convenient and easy to use
    8>. The wireless transmission distance is not less than 10 meters

Description of each function:
    1>. With USB sound card play function (has USB to connect to the computer, enters USB sound card pattern. When the USB is connected to the computer, it starts with the USB AUDIO mode.
    2>. With Bluetooth audio playback, Bluetooth phone calls, voice prompt function, Bluetooth background function (other mode phone to automatically enter the call mode of voice call, hang up the phone before coming to return mode) (equipment name: Bluetooth Audio)
    3>. With U disk playback function (U disk inserted into the U disk playback mode, after the plug priority, no U disk, online skip this mode)
    4>. with TF card play function (TF inserted into the TF card mode, after inserting a priority, skip this mode online without TF Card)
    5>. With Chinese (English) voice prompt function (you can choose different language version)
     6>. music mode supports decoding formats: MP3, WMA, WAV, FLAC.
    7>. support tracks breaking point, volume power down to save.

Instructions for connection and pairing operations:

After power to hear a voice prompt "Bluetooth mode", which means the module into the Bluetooth mode, and opening mobile phone Bluetooth switch. Then searching for nearby Bluetooth devices after a few seconds, you will see the equipment named "Bluetooth Audio" Bluetooth device, click on the link in the mobile phone side can connect Bluetooth mobile phone.
    After the connection, the decode board broadcasts the voice prompt for "successful connection".
    At this point, open the phone player to play music, the phone's music can be transmitted via Bluetooth wireless to the decoder board.

Connection operation step:
1>. Module power on
    2>. Enter the phone system settings
    3>. Turn on the Bluetooth switch
    4>. Search for Bluetooth devices
    5>. Connect Bluetooth
    6>. After the mobile terminal is connected with the Bluetooth module, the mobile phone player is opened to play music, and the Bluetooth module can output the music of the mobile phone.

About incoming calls
    When a mobile phone with a Bluetooth module has an incoming call, the module sends out a voice to broadcast the caller's call number. You can answer the call of the Bluetooth module short press P/P key, after the call, call audio signal from the Bluetooth module external electret microphone (to use the Bluetooth module calls the Bluetooth module to connect the electret microphone, otherwise they can not hear the sound). In addition, you can switch to any phone or Bluetooth module during the call process.

Status indicator light:
    1>. The decoder board is equipped with status indicator (blue LED), which is used to display the various working conditions of the module.
    2>. Pairing: LED flashes fast (bright, out of 250ms)
    3>. MP3 play: LED slow flash (bright 500ms, destroy 500ms)
    4>. Pause status: LED often light
    5>. Bluetooth playback: LED flashes two times every 2S
