DC 3.3V 5V 8-Channel Optocoupler Isolation Module PNP NPN Low High Level Output Signal Converter

GY18570
5 9
$10.59 $7.41
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
Share
1.Description:

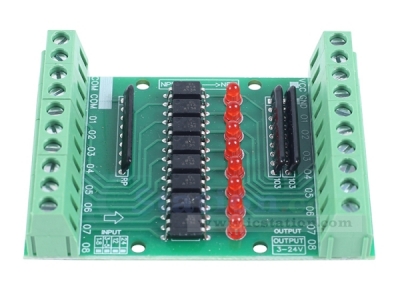

    It is a DC 3.3V 5V 8-Channel Optocoupler Isolation Module.It can detect 8-Channel DC input power sources and output DC voltage according to the detection results. The output results can be applied to PLC system and other control equipment.
It can detect whether there is input power. The output status will change when the input power is detected.

2.Features:
    1>.Optocoupler isolation control
    2>.8-Channel input and output
    3>.NPN/PNP(Low/High level) signal output
    4>.Support DC 3.3V~5V Input
    5>.DC 1.8V-24V load voltage

3.Parameters:
    1>.Product name: DC 3.3V 5V 8-Channel Optocoupler Isolation Module
    2>.Input Voltage:DC 3.3V~5V
    3>.Load Input Voltage:DC 1.8V~24V
    4>.Output type:NPN/PNP(Low/High level) signal output
    5>.Output current:50mA
    6>.Work Temperature:-20℃~85℃
    7>.Work Humidity:10%~85%RH
    8>.Size:72*50*27mm

4.Application:
    1>.DC power detection
    2>.PLC control system
    3>.Device alarm

5.Package:
   1pcs DC 3.3V 5V 8-Channel Optocoupler Isolation Module
